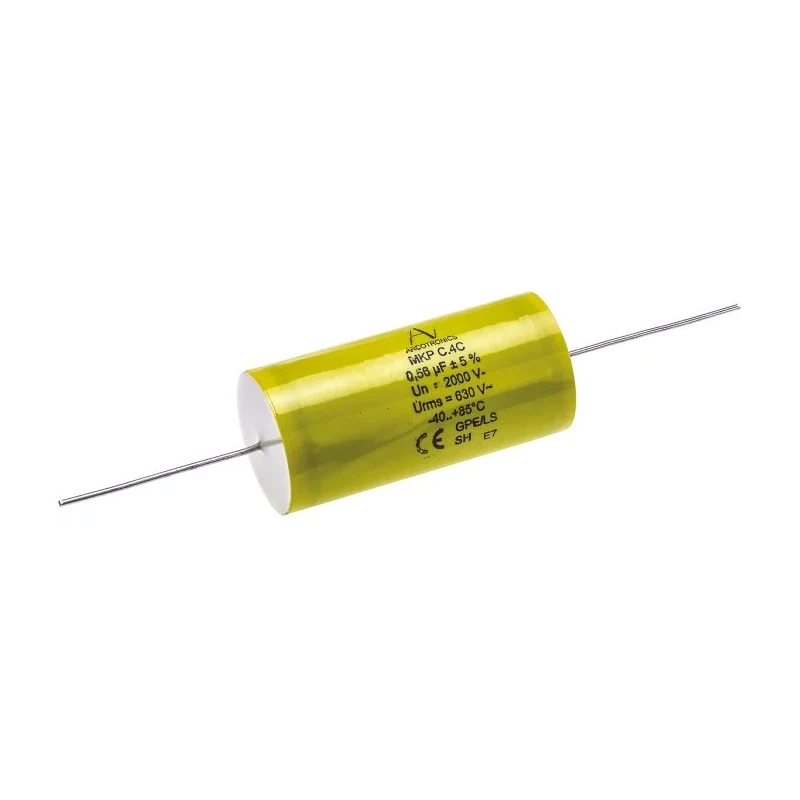

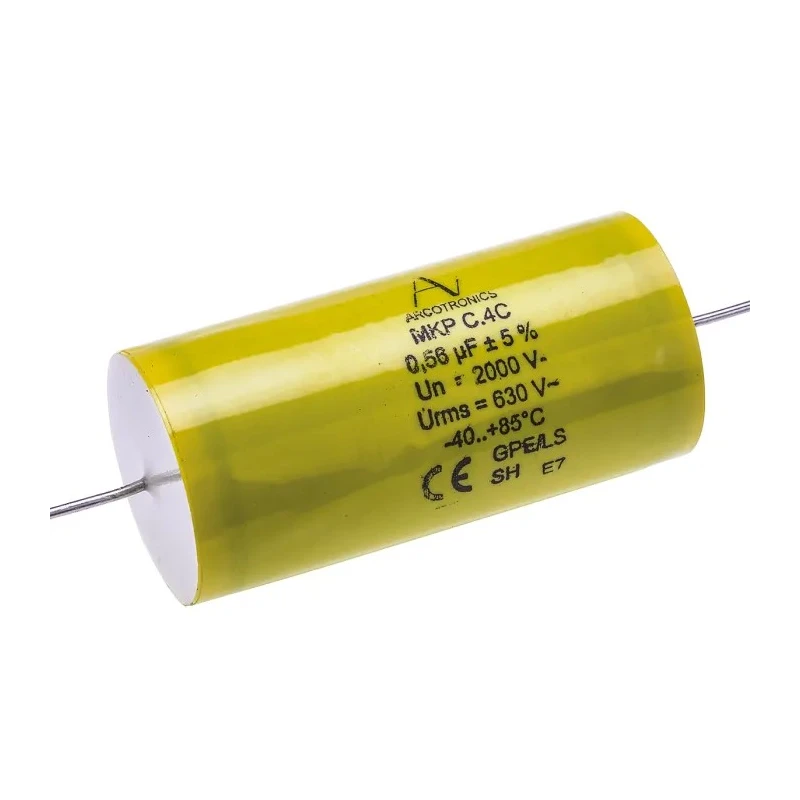

KEMET C4C Polypropylene Capacitor 560 nF ±5%, 2 kV DC, 630 V AC Through Hole Mount C4CAWUD3560AA3J

KEMET C4CAWUD3560AA3J polypropylene capacitor provides high stability and efficiency for industrial, laboratory, and electronic power applications. Featuring 560 nF capacitance with a tight ±5% tolerance, this component is engineered for high voltage environments, rated at 2 kV DC and 630 V AC, ensuring secure operation in demanding circuits.

This capacitor series utilizes metallised polypropylene film technology, notable for its self-healing properties, low losses, and high ripple current carrying capability, making it ideal for snubber circuits, electronic ballasts, and motor control systems.

With through hole mounting and a plastic case, it offers robust mechanical reliability. Its wire terminal leads with a length of 6 mm and diameter of 1.2 mm accommodate secure soldering while facilitating insertion into PCB assemblies.

The product operates reliably over a wide temperature range of -40°C to 85°C, suitable for harsh industrial environments. Its physical dimensions (58 mm length x 29 mm width x 29 mm height) fit typical power electronic layouts without space compromise. The low Equivalent Series Resistance of 6 mΩ ensures efficient performance at high frequencies, while the outstanding dissipation factor of 0.0005% minimizes heat generation.

Certification to VDE 0560, IEC 61071, and EN 61071 standards guarantees compliance with rigorous industry requirements. The capacitor's polypropylene film design provides excellent electrical performance and stability. High voltage and low ESR ratings are suited for power semiconductor circuits.

Ideal for blocking, clamping, and coupling or decoupling applications in industrial electronics. The package includes the capacitor in a bag format for protection and easy handling. Typical use cases include electronic ballast circuits, motor drives, and power electronics requiring robust snubber capacitors.

Designed for industrial, manufacturing, HVAC, and laboratory environments demanding high reliability. Explore more high-quality Film Capacitors in the Electronics Components category at EnvMart for your industrial and commercial electronic needs.
