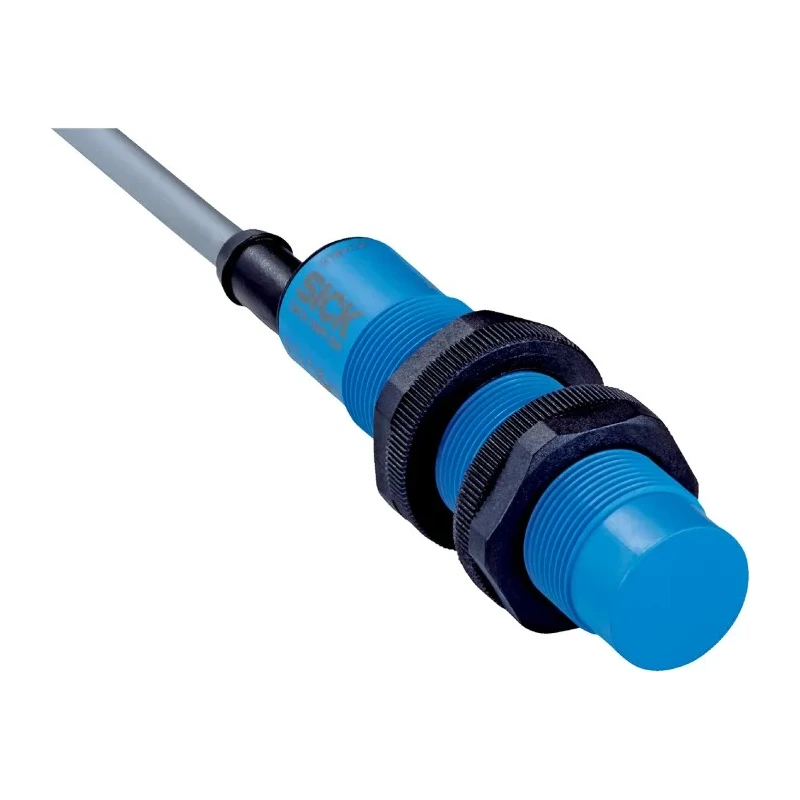

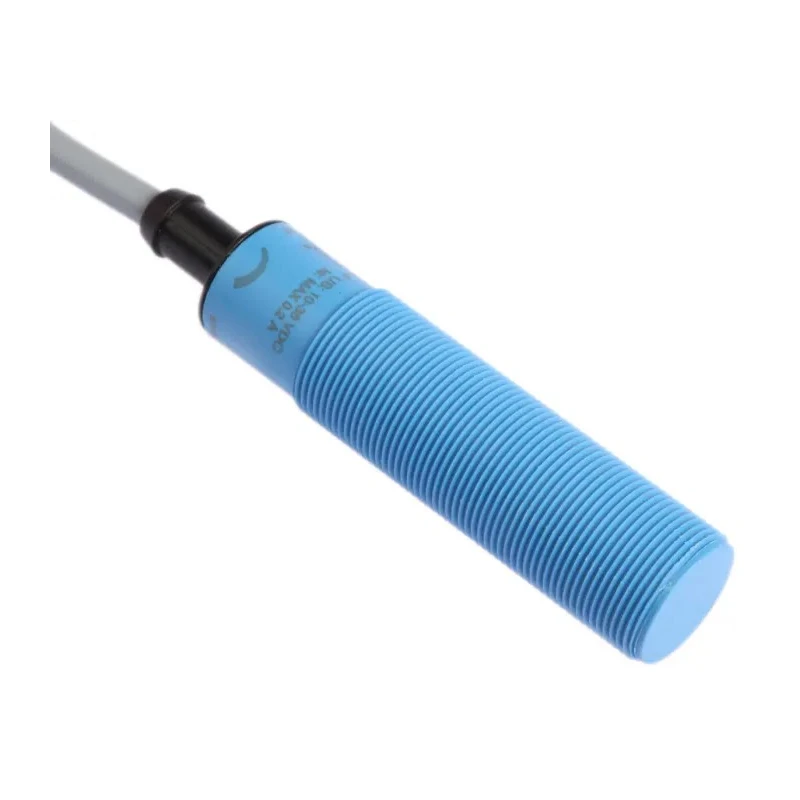

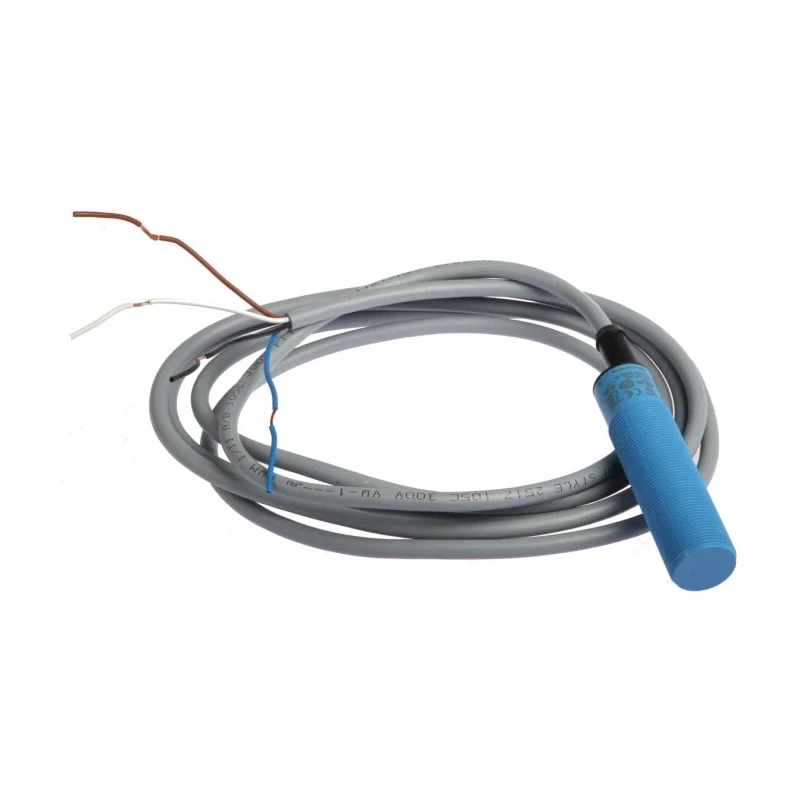

SICK Threaded Barrel Capacitive Proximity Sensor CM 12 mm, M18 x 1 PNP 200 mA 36 V DC CM18-12NPP-EW1
Specifications
| Country of Origin | Lithuania |
|---|---|
| Brand | SICK |
| Length | 86mm |
| Model | CM18-12NPP-EW1 |
| IP Rating | IP67, IP68, IP69K |
| Width | 18mm |
| Mount Type | Non-Flush |
| Housing Material | PBT, Plastic |
| Output type | PNP |
| Series | CM |
| Maximum Operating Temperature | 85°C |
| Thread Size | M18 x 1 |
| Minimum Operating Temperature | -30°C |
| Switching Current | 200mA |
| Terminal type | Pre-Cabled |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 36V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 50Hz |
| Standards/Approvals | CE, CSA, cULus, EcoLab |
| Maximum Supply Voltage | 36V |
| Maximum Detection | 12mm |
Key Features
- The sensor features a rugged threaded barrel design with M18 x 1 thread size for secure mounting.
- It offers a maximum switching current of 200 mA with a supply voltage up to 36 V DC.
- Operating temperature ranges from -30°C to 85°C for wide environmental applications.
- Ingress protection ratings of IP67, IP68 and IP69K ensure durability in harsh industrial and washdown environments.
- The housing is made from chemical-resistant PBT plastic providing a lightweight and robust enclosure.
- The sensor is unshielded for effective detection of ferrous targets at distances up to 12 mm.
- Pre-cabled terminal type reduces installation time on site.
- Supports a maximum switching frequency of 50 Hz enabling rapid detection cycles.
Product Description
SICK CM18-12NPP-EW1 is a threaded barrel capacitive proximity sensor designed for non-contact object detection in industrial automation. It offers a 12 mm maximum detection range with a robust M18 x 1 threaded mounting.
Designed for reliable operation from a 36 V DC power supply, this sensor provides a PNP output type with a switching current up to 200 mA, facilitating direct actuator drives and easy PLC interfacing.
The housing is constructed from PBT plastic, making it resistant to chemicals and reducing overall sensor weight, which is beneficial in various industrial applications. The sensor's ingress protection rating IP67, IP68, and IP69K allows it to operate reliably in wet, dusty, or high-pressure washdown environments.
Operating temperature ranges from -30°C to 85°C, making this sensor suitable for diverse environments including manufacturing conveyors, pneumatic cylinder end-of-travel detection, and panel-mounted sensor arrays.
The unshielded sensor face is tailored for detecting ferrous materials, and the pre-cabled termination minimizes installation complexity. The maximum switching frequency of 50 Hz supports high-speed object sensing and part-counting tasks.
The sensor’s threaded barrel form factor with M18x1 thread size ensures easy and secure mounting. Ingress protection IP67, IP68, and IP69K certifications guarantee performance under harsh conditions and washdown cleaning.
PNP output sources current to connected control inputs for straightforward integration. Compatibility with up to 36 V DC supply voltage aligns with common PLC systems. Robust polymer housing improves durability and chemical resistance.
High switching frequency of 50 Hz supports rapid detection cycles. Suitable for industrial, manufacturing, HVAC, and automation control environments. Pre-cabled connection reduces installation time.
This sensor is a dependable choice for applications requiring precise, repeatable proximity sensing including conveyor presence detection, pneumatic cylinder positioning, and washdown-capable automation systems.
Explore more Capacitive Proximity Sensors and industrial automation solutions at EnvMart for dependable and precise sensing technology.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 12 mm for detecting ferrous targets.
This sensor operates with a supply voltage of up to 36 V DC.
It has a maximum switching current of 200 mA.
The sensor has ingress protection ratings of IP67, IP68, and IP69K, making it suitable for harsh environments.
This model features a PNP output type, which sources current to connected control inputs.
The operating temperature range is from -30°C to 85°C.
The housing is made from chemical-resistant PBT plastic, providing a lightweight and robust enclosure.
It features a threaded barrel design with an M18 x 1 thread size for secure mounting.
The maximum switching frequency is 50 Hz, allowing for rapid detection cycles.

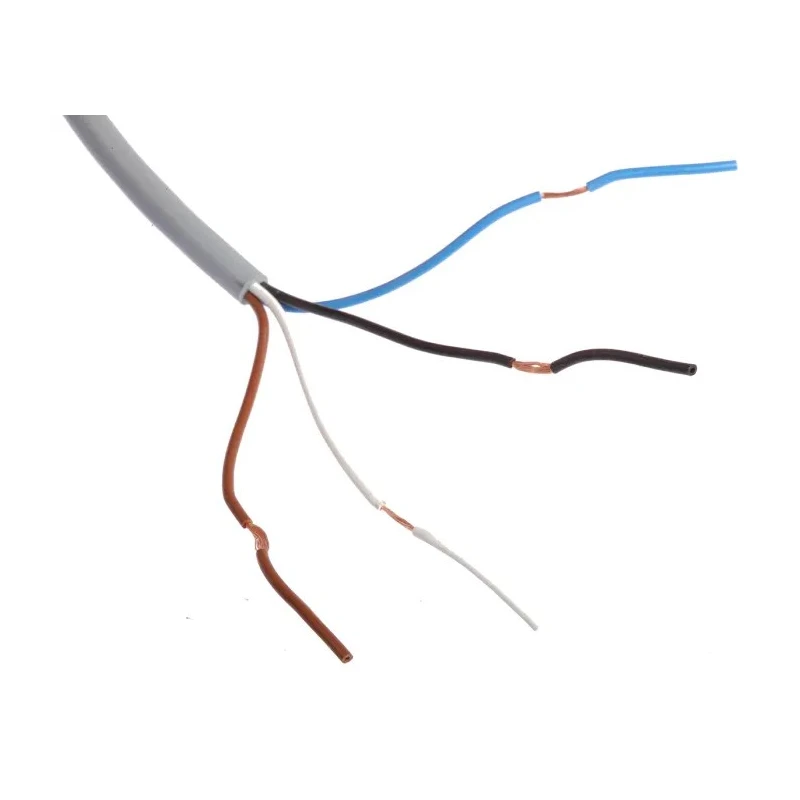

It uses a pre-cabled terminal type, which reduces installation time on site.
The sensor complies with CE, CSA, cULus, and EcoLab standards.
Yes, the IP67, IP68, and IP69K ratings indicate that it is suitable for washdown applications.
