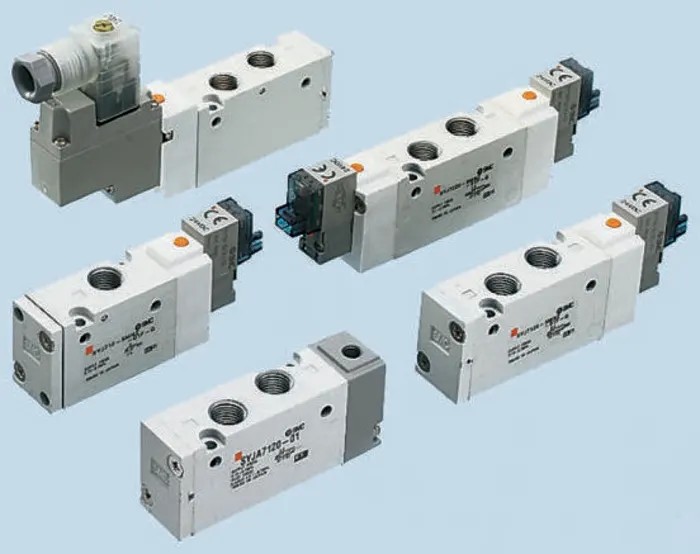

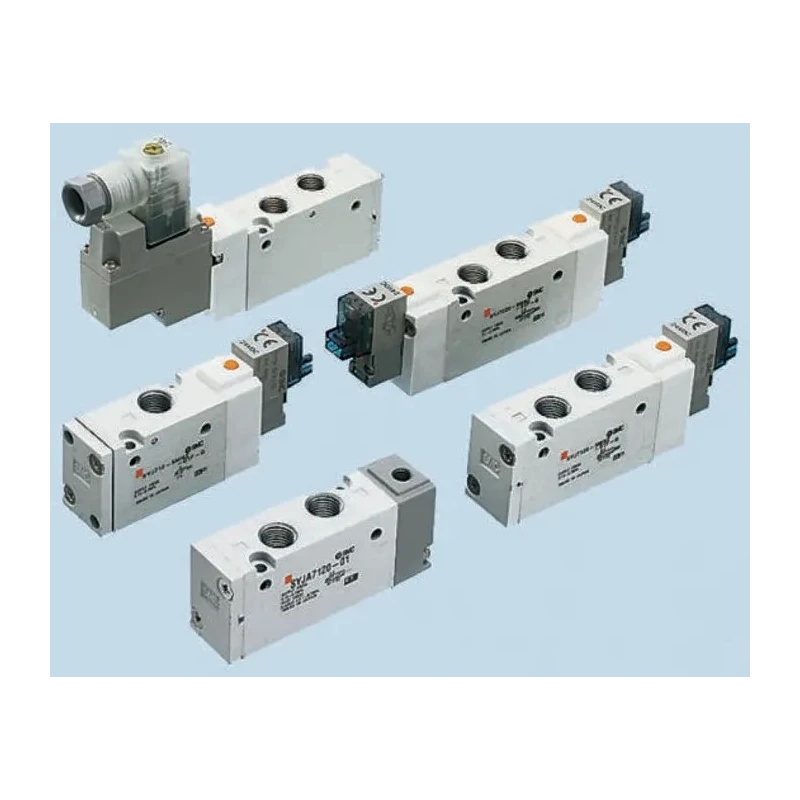

SMC Pneumatic Solenoid Valve 3/2 NC Solenoid/Spring G 1/8 Port Size 110V AC SYJ712-3DZ-01F-Q

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 3/2 NC Solenoid/Spring G 1/8 Port Size 110V AC SYJ712-3DZ-01F-Q



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	India
Voltage	110V ac
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Model	SYJ712-3DZ-01F-Q
Mount Type	Stand Alone
Series	SYJ
Number Of Ports	3
Maximum Operating Temperature	50°C
Port Type	Type R, Type A, Type B, Type P
Number of Positions	2
Port Size	1/8 in
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid/Spring
Maximum Flow Rate	490.75NL/min
Standards/Approvals	RoHS
Connection Thread Standard	G 1/8
Minimum Pilot Pressure	0.15MPa
Valve Function	3/2 NC
Solenoid Type	Single

Key Features

This valve features a 3-port, 2-position normally closed (NC) function suitable for pneumatic applications.
Operates on 110V AC with low power consumption of 1.1 VA for energy-efficient performance.
The die-cast aluminium body provides durability while the rubber seal material ensures leak-tight operation.
Designed for maximum operating pressure up to 0.7 MPa and can handle flow rates up to 490.75 NL/min.
Suitable for operating temperatures from -10°C to 50°C for versatile industrial usage.
Includes a single solenoid actuation type and comes with a stand-alone mount for flexible installation.
The valve has a copper free design enhancing its resistance to corrosion and extends life.
Complies with RoHS standards ensuring environmentally friendly manufacturing.

Product Description

SMC SYJ712-3DZ-01F-Q Pneumatic Solenoid Valve 3/2 NC Solenoid/Spring type with G 1/8 port size, operates on 110V AC and features a durable die-cast aluminium body and rubber seals. This valve offers efficient pneumatic fluid control with a 3-port and 2-position normally closed design, providing reliable performance for diverse industrial applications.

The SYJ series valves are known for their low power consumption of 1.1 VA, which leads to reduced engineering costs and allows for direct operation by PLCs. Their compact and space-saving design enables individual mounting on subplates or configuration on base manifolds according to system requirements.

Equipped with a single solenoid and spring return mechanism, the valve provides a quick response with a maximum operating pressure of 0.7 MPa and maximum flow rate of 490.75 NL/min. It has an operating temperature range from -10°C to 50°C, making it suitable for standard industrial environments. The valve is designed without copper to enhance resistance to corrosion, and it includes a pilot exhaust for improved operational safety.

RoHS compliance ensures the valve meets environmental standards, making it a responsible choice for sustainable industrial systems. The stand-alone mount design offers installation flexibility across mechanical, fluid power, pneumatic, and manufacturing industries.

This product is ideal for use in pneumatic circuits, automation systems, and manufacturing equipment requiring fast solenoid switching. Typical applications include industrial automation, HVAC systems, water treatment plants, and packaging machinery.

The SYJ712-3DZ-01F-Q’s reliability and efficiency support long-term operational stability in factory and laboratory environments. Installation is supported through standard G 1/8 threaded connections, facilitating easy integration with existing pneumatic setups.

This valve supports multiple port types including Type R, A, B, and P, providing adaptability across varied pneumatic systems.
