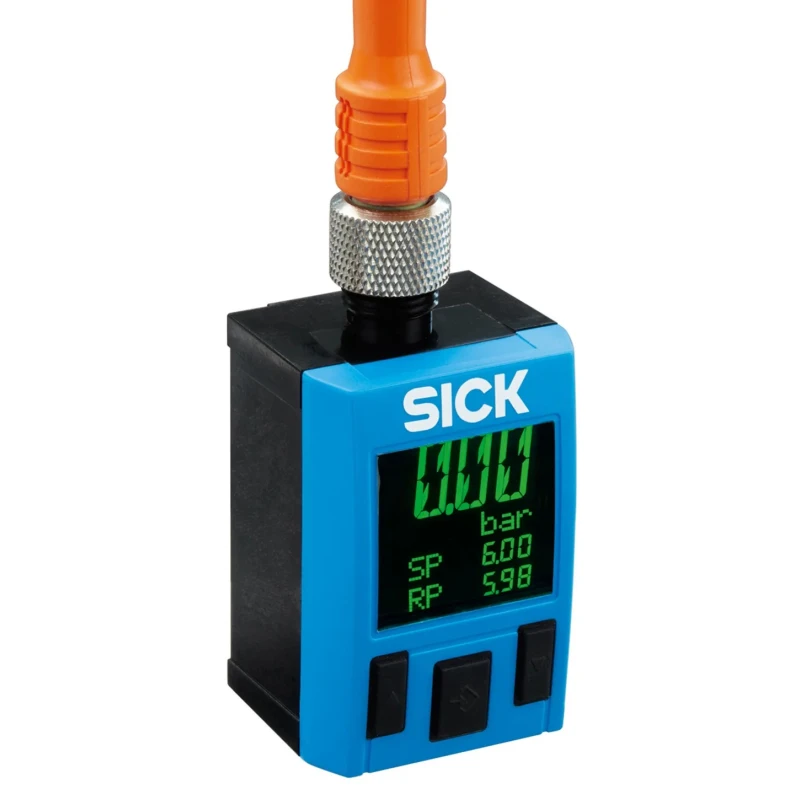

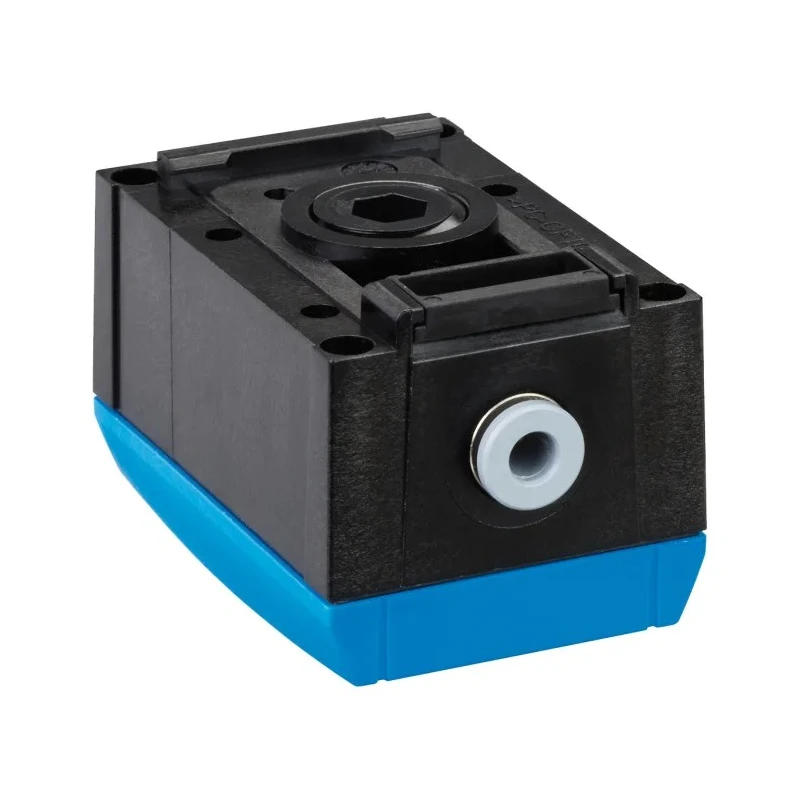

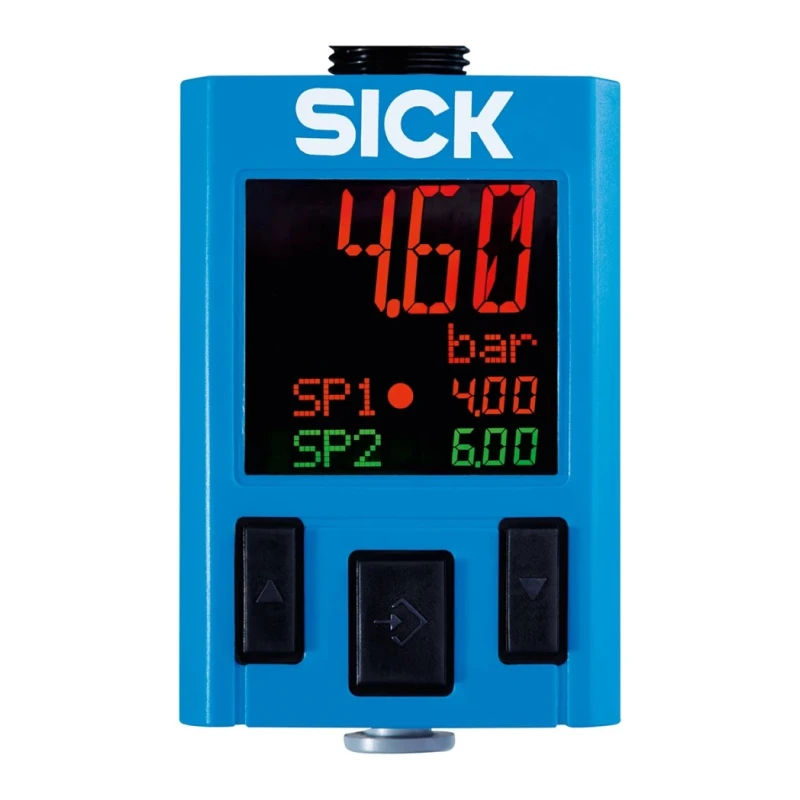

SICK Pressure Switch 0 bar to 10 bar 30V dc Push Pull PNP NPN Output PAC50-DCD / 1062992
Specifications
| Country of Origin | Thailand |
|---|---|
| Voltage | 30V dc |
| Brand | SICK |
| Maximum Operating Pressure | 10 bar |
| Height | 63mm |
| Model | PAC50-DCD / 1062992 |
| Depth | 35mm |
| IP Rating | IP67, IP65 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Series | PAC50 |
| Maximum Operating Temperature | 60°C |
| Pressure Type | Positive Pressure |
| Switch output | Push Pull, PNP, NPN |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | IEC/EN |
| Connection Thread Standard | Metric, G |
| Minimum Operating Pressure | 0bar |
| Port Gender | Female |
| Suitable Medias | Air |
Key Features
- The device supports Push Pull, PNP, and NPN switch outputs for flexible connectivity.
- It features a clear bi-colour display for easy system status monitoring.
- Operational voltage is 30V DC with IP67 and IP65 protection ratings.
- Compact dimensions of 63mm height, 35mm width, and 35mm depth enable easy panel or DIN rail installation.
- Switch outputs are configurable and support IO Link V1.1 communication protocol.
- It includes an LED indicator for clear visual feedback.
- Suitable for use with air as the media and supports metric G thread connections.
- Operating temperature ranges from 0°C to 60°C ensuring stability in varied environments.
Product Description
SICK PAC50-DCD / 1062992 Pressure Switch offers precise measurement and switching for pressures ranging 0 bar to 10 bar, operating at 30V DC. This device combines a pressure switch, transmitter, and bi-colour display in a rugged housing, delivering clear and simultaneous display of applied pressure and set points.
Equipped with up to two configurable switch outputs (Push Pull, PNP, NPN), the PAC50 supports diverse industrial applications including pneumatic controls and vacuum systems. The device supports IO-Link V1.1 and offers an analogue output configurable between 4-20mA or 0-10V for enhanced system integration.

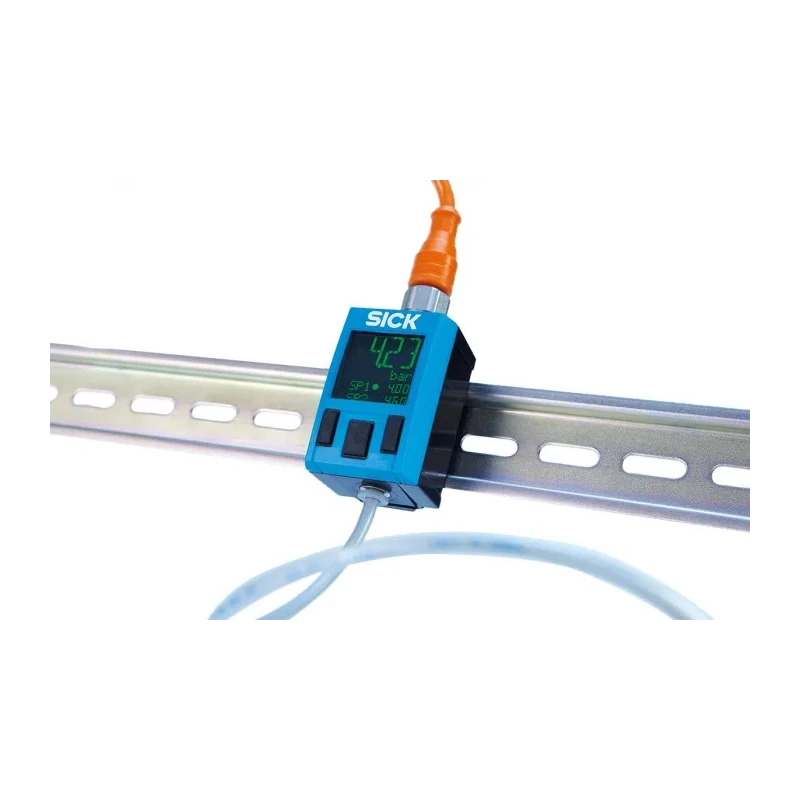

The compact and durable design, featuring IP67 and IP65 ratings, allows installation on DIN rails or panels with easy programming through three large push buttons on the front panel, removing the need for additional tools. Its standard M12 electrical connector and dual G1/4" female ports facilitate flexible connections.
Certified with IEC/EN standards and manufactured in Thailand, this pressure switch reliably operates within a temperature range of 0°C to 60°C. Suitable for air media, it ensures accurate pressure monitoring in positive pressure systems and is ideal for industrial, pneumatic, vacuum, and manufacturing environments.
The integrated Pressure Switch and transmitter streamline system setup and monitoring. The bi-colour display changes colour upon reaching set points for immediate visual indication. Switch outputs are individually configurable to PNP, NPN, or push-pull, offering application flexibility.
Compact dimensions facilitate installation in confined spaces and panels. LED indicator provides additional status visibility for operators. Standards compliance ensures safety and performance reliability in industrial spaces.
The robust IP67 and IP65 rated enclosure protects against dust and water ingress. Installation options include DIN rail or panel mounting, supporting versatile setups. Configurable analogue output extends measurement and control capabilities within automation systems.
Suitable for applications involving pneumatic control systems, vacuum grippers, and cylinder pressure regulation. Explore EnvMart’s extensive catalog for additional industrial measurement and pneumatic components compatible with this model.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
It is suitable for use with air as the media.
The dimensions are 63mm in height, 35mm in width, and 35mm in depth.
The operational voltage is 30V DC.
It has IP67 and IP65 protection ratings, ensuring resistance to dust and water ingress.
This model supports Push Pull, PNP, and NPN switch outputs.
The operating temperature range is from 0°C to 60°C.
This pressure switch can be mounted on DIN rails or panels.
Yes, it supports IO-Link V1.1 communication protocol.
It uses metric G thread connections.
It is certified with IEC/EN standards.
The bi-colour display provides clear visual feedback on system status and changes colour upon reaching set points.
