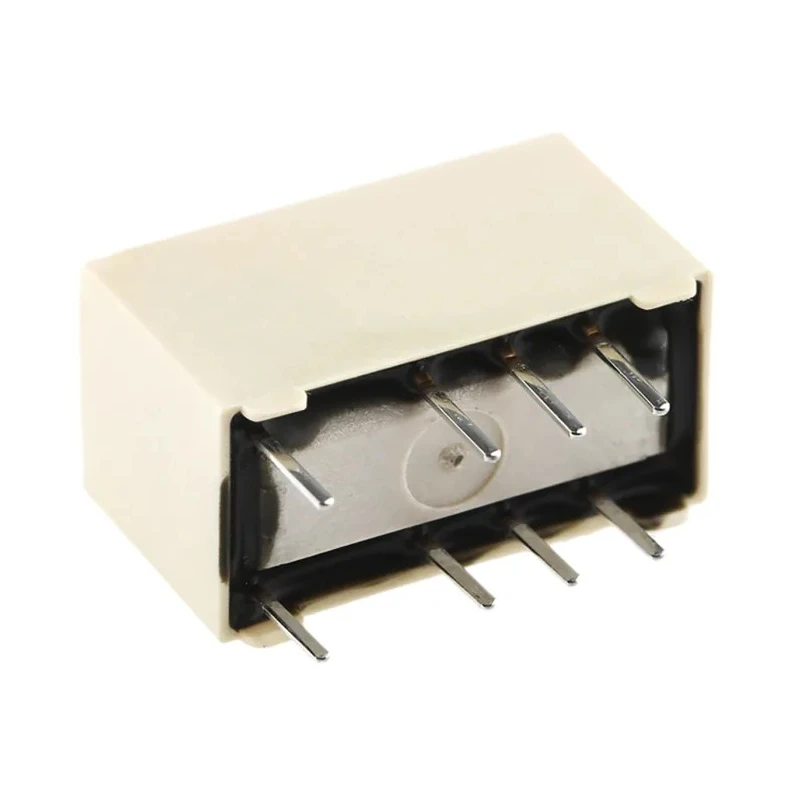

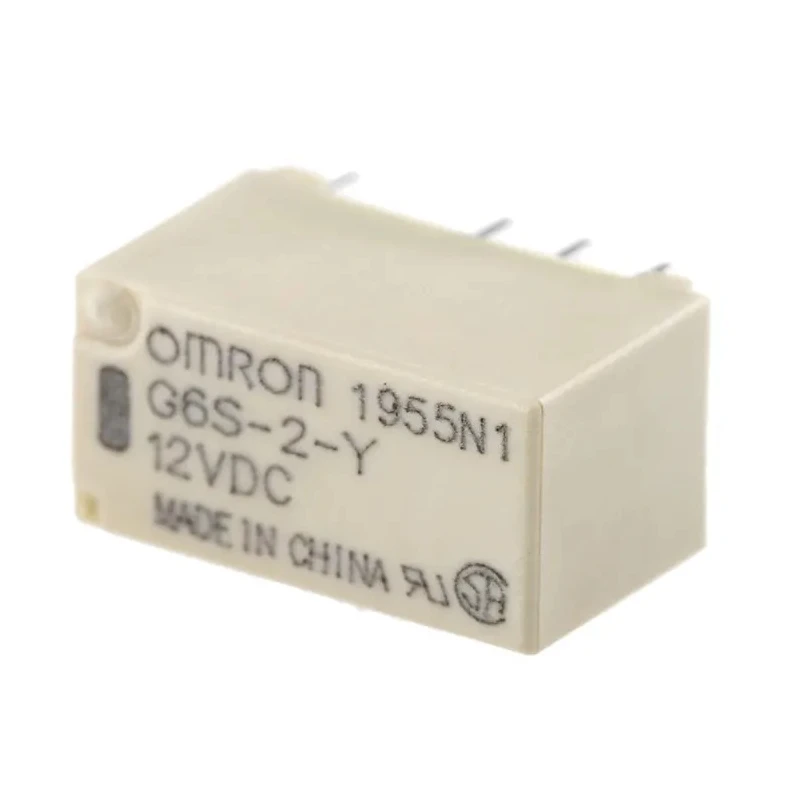

Omron Ultra-Miniature PCB Signal Relay, 12V DC Coil, 2A Switching Current, DPDT Contact Configuration G6S-2-Y DC12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 9.2mm |
| Length | 14.8mm |
| Model | G6S-2-Y DC12 |
| Width | 7.3mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G6S |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
| Switching Power | 200mW |
| Aratas PCB Signal Relay, 12V dc Coil, 2A, DPDTBrand | Omron |
| KEMET PCB Mount Signal Relay, 12V dc Coil, 2A Switching Current, DPDTBrand | KEMET |
Key Features
- Operates with a 12V DC coil voltage for efficient control.
- Has a DPDT contact configuration allowing dual switching circuits.
- Supports a switching current of 2 Amperes for moderate load handling.
- Compact dimensions of 9.2mm height, 7.3mm width, and 14.8mm length for PCB mounting.
- Gold plated contact material ensures enhanced conductivity and durability.
- Coil resistance of 720 Ohms with a coil power dissipation of 200mW.
- Wide operating temperature range from -40°C to 85°C ensuring reliability in diverse environments.
- Fully sealed design with RoHS compliance for safety and environmental standards.
Product Description
Omron G6S-2-Y DC12 PCB Signal Relay is an ultra-miniature, fully sealed relay designed for compact electronic applications requiring reliable switching capabilities. Featuring a 12V DC coil and DPDT contact configuration, it supports a switching current up to 2 Amperes with a maximum switching AC voltage of 250V and DC voltage of 220V. Its compact size (9.2mm height, 7.3mm width, and 14.8mm length) makes it ideal for PCB mounting in constrained spaces.
The relay is constructed with gold plated contacts for enhanced electrical performance and durability. It exhibits a coil resistance of 720 Ohms and consumes coil power of 200mW, making it energy efficient. Additionally, the relay offers a wide operating temperature range from -40°C to 85°C, ensuring stable operation in harsh industrial environments.
Fully RoHS compliant and certified to EN 60950 and EN 41003 standards, this signal relay has a high dielectric strength and impulse withstand voltage (2500V 2x10 µs), complying with stringent Bellcore requirements. Its robust build and superior insulation characteristics ensure long service life and reliable performance in industrial automation, control, measurement, and communication systems.
This Omron PCB Signal Relay is commonly used in industrial machinery controls, automated equipment, HVAC control systems, and various electronic signal conditioning applications. Its double-pole double-throw (DPDT) contact configuration provides flexible switching options for complex circuit designs.
Operates at 12V DC coil voltage with 2A switching current capacity. Compact ultra-miniature form factor suitable for PCB mounting. Gold plated contacts for improved conductivity and longevity. Wide temperature range from -40°C to +85°C for varied industrial environments.
Certified to EN 60950 and EN 41003 RoHS standards. High dielectric strength and impulse voltage withstand. Fully sealed relay construction for environmental protection. Explore our comprehensive range of high-reliability relays at EnvMart to suit diverse industrial and electronic control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
It supports a maximum switching current of 2 Amperes.
The relay has compact dimensions of 9.2mm in height, 7.3mm in width, and 14.8mm in length.
It features a double-pole double-throw (DPDT) contact configuration.
The coil resistance is 720 Ohms.
It operates within a wide temperature range from -40°C to 85°C.
The contact material is gold plated, which enhances conductivity and durability.
The maximum switching AC voltage is 250V, and the maximum switching DC voltage is 220V.
Yes, the relay is fully RoHS compliant, ensuring it meets safety and environmental standards.
The coil power dissipation is 200mW.
This relay is designed for PCB mounting.
It is certified to EN 60950 and EN 41003 standards.
