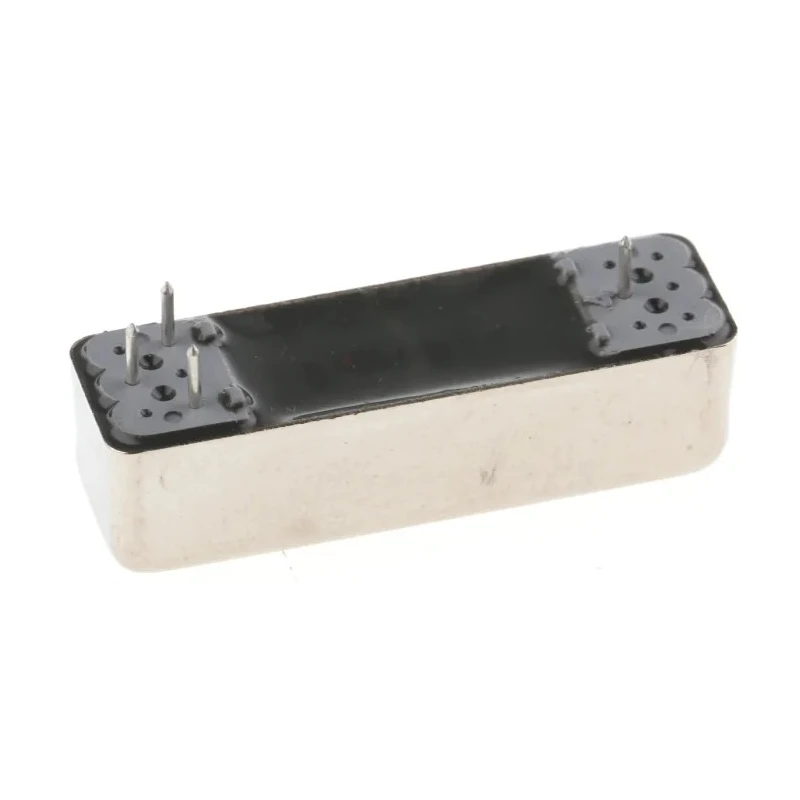

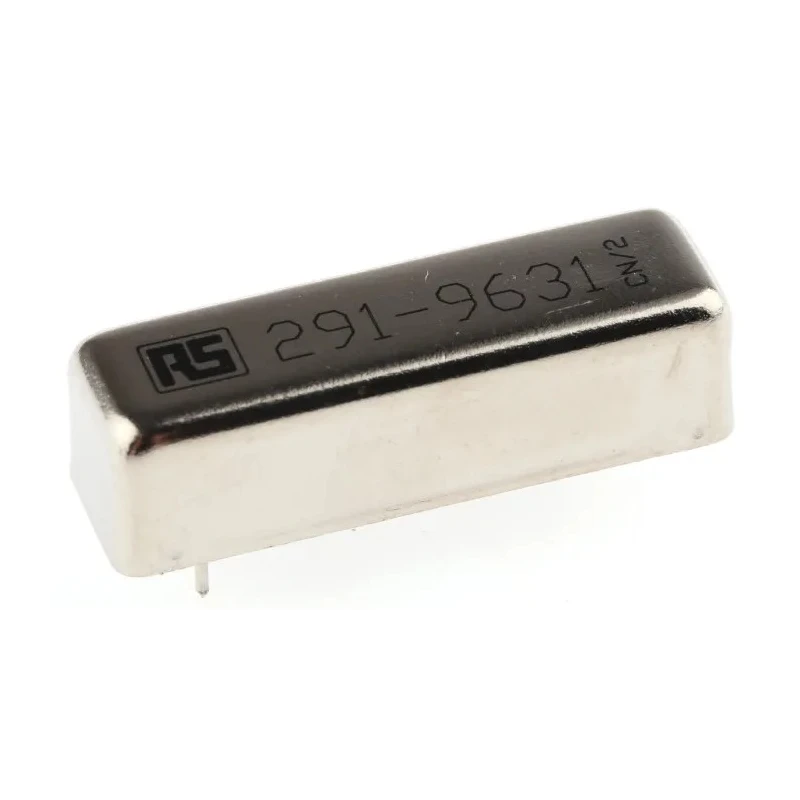

RS PRO PCB Reed Relay SPST Contact, 48V DC Coil, 200V DC Max, 1A Max Current, 12000Ω Coil Resistance Model 291-9631
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | RS PRO |
| Height | 8.9mm |
| Length | 31.8mm |
| Model | 291-9631 |
| Operating Time | 0.5ms |
| Mount Type | PCB |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Terminal type | Solder |
| Contact Resistance | 150mΩ |
| Mechanical Life | 108 Operations |
| Coil Resistance | 12000Ω |
| Coil Power | 192mW |
| Switching Power | 15W |
| Isolation Coil To Contact | 2kV dc |
| METAL CASE REED RELAY 48VBrand | NEUTRAL |
Key Features
- Encapsulated in a nickel-plated steel case for effective magnetic screening.
- Coil resistance is 12000 ohms, ensuring stable coil power of 192mW.
- Supports a maximum switching current of 1 ampere and a switching power of 15 watts.
- Operates reliably within a temperature range from -20°C to 70°C.
- Contact resistance is low at 150 milliohms, providing efficient electrical conduction.
- Mechanical life rating of 108 operations ensures durability in industrial applications.
- Designed for PCB mounting with solder-type terminals for secure connectivity.
- Isolation voltage between coil and contact is rated at 2kV DC for safety and reliability.
Product Description
RS PRO 291-9631 PCB Reed Relay SPST is designed for precise switching applications, featuring a 48V DC coil and maximum switching voltage of 200V DC. This relay is encapsulated in a nickel-plated steel case that provides robust magnetic screening, making it suitable for industrial, laboratory, and automation systems.
The relay operates with coil power of 192mW and coil resistance of 12000 ohms, contributing to efficient energy consumption. It supports a maximum switching current of 1 ampere and a switching power rating of 15 watts, ideal for various low-power switching tasks.
Operating temperature ranges from -20°C to 70°C ensure reliable functionality under different environmental conditions. The relay features low contact resistance of 150 milliohms and isolation voltage of 2kV DC from coil to contact for safety and performance assurance.
The product incorporates a single-pole, single-throw (SPST) contact configuration and is intended for PCB mounting with solder terminals for secure and reliable electrical connections. With a mechanical life rating of approximately 108 operations, this relay promises longevity in demanding industrial environments.
Manufactured in Germany and branded by RS PRO, this component is suitable for use in electronics assembly, automation equipment, and signal conditioning applications. Encapsulated nickel-plated steel case for magnetic shielding.
Stable coil power at 192mW with 12000Ω coil resistance. Supports 1A maximum switching current and 15W switching power. Wide operating temperature range: -20°C to 70°C. Low contact resistance of 150 milliohms enhances conductivity.
Mechanical life of 108 operations assures durability. PCB mount type with solder terminals for enhanced connection. High isolation of 2kV DC between coil and contact. Non-latching SPST contact configuration. Choose RS PRO products for reliable industrial relays and browse the Electronics & Electricals catalog for more specialized components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay supports a maximum switching voltage of 200V DC.
The coil resistance is 12000 ohms, ensuring stable coil power of 192mW.
It can handle a maximum switching current of 1 ampere.
The operating temperature range is from -20°C to 70°C.
This relay features a single-pole, single-throw (SPST) contact configuration.
The isolation voltage between the coil and contact is rated at 2kV DC.
It is designed for PCB mounting with solder-type terminals for secure connectivity.
The mechanical life rating is approximately 108 operations.
The contact resistance is low at 150 milliohms, providing efficient electrical conduction.
This relay has a maximum switching power rating of 15 watts.
The operating time for this relay is 0.5 milliseconds.
This relay is manufactured in Germany.
