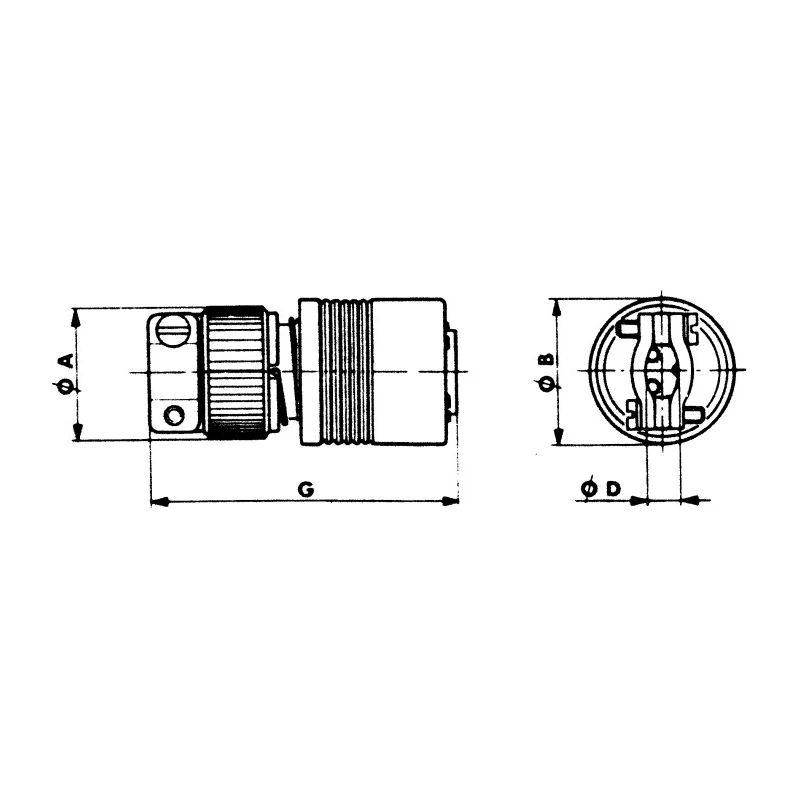

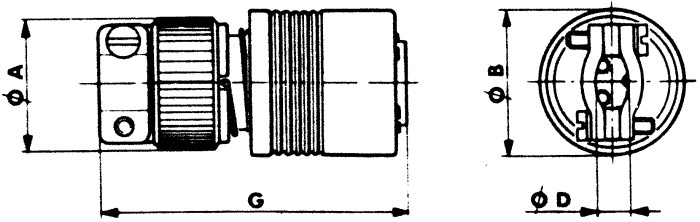

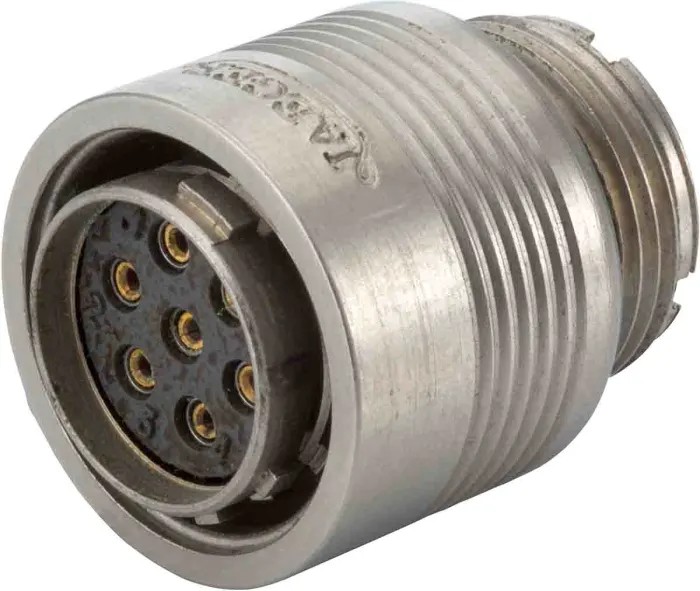

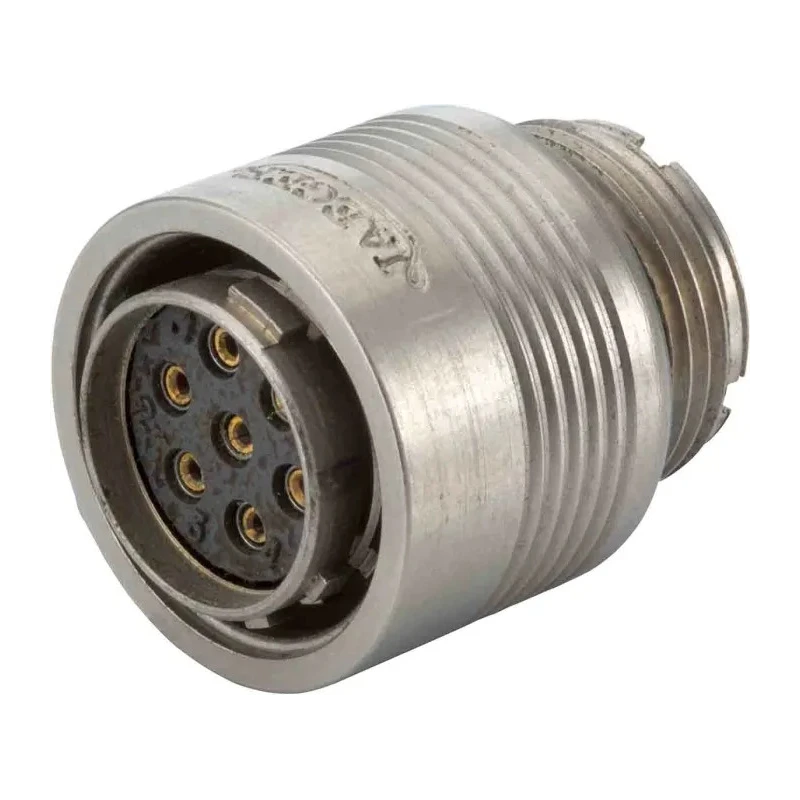

Jaeger Circular Connector, 7 Contacts, Cable Mount, Miniature Plug Male, IP65, Aluminium Housing, 2500V, 7A 5302 730 06
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 2500V |
| Brand | Jaeger |
| Orientation | Straight |
| Current | 7A |
| IP Rating | IP65 |
| Mount Type | Cable |
| Housing Material | Aluminium |
| Contact Material | Brass |
| Series | 5302 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 7 |
| Contact Plating | Gold |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shell Size | B0 |
| Mating Type | Push Pull |
| Connector Size | Miniature |
| Plug/Socket | Plug |
Key Features
- This connector features an IP65 rating for dust and water resistance.
- It is made with an aluminium housing and gold-plated brass contacts for durability and conductivity.
- The plug has a straight body orientation and push-pull mating type for secure connections.
- It supports up to 2500V voltage and 7A current capacity for reliable performance.
- The operating temperature range is from -40°C to 100°C ensuring use in harsh environments.
- Termination type is crimp, allowing robust cable connections.
- The shell size is B0, suitable for miniature connector applications.
- This product is manufactured in France and belongs to the 5302 connector series.
Product Description
Jaeger 5302 730 06 is a high-performance circular connector designed for industrial and electronic applications requiring robust and reliable connections. This 7-contact, cable mount miniature plug connector features an aluminium alloy housing offering mechanical strength and corrosion resistance, combined with gold-plated brass contacts for superior electrical conductivity and durability.
The connector supports an operational voltage of up to 2500V and a current rating of 7A, making it suitable for communication systems, telecommunication, test equipment, and measurement devices. The IP65 ingress protection rating ensures the connector is dust-tight and protected against water jets, making it reliable in harsh environments.
Designed with a straight body orientation and equipped with a push-pull pull-locking mechanism, it offers ease of mating and secure engagement. The crimp termination ensures stable cable fixation, suitable for miniature cable assemblies.
The connector's operating temperature ranges from -40°C to 100°C, allowing it to function reliably under varying temperature conditions. Shell size B0 refers to its miniature form factor, making it compact yet sturdy.
The product is part of the Jaeger 5302 series and is manufactured in France, assuring quality and compliance with industrial standards. IP65 rated for dust and water protection. Aluminium housing with nickel plating for corrosion resistance.
7 gold-plated brass contacts for reliable conductivity. Push-pull mating system for easy and secure connection. Straight body orientation for versatile cable routing. Crimp termination for strong cable retention. Wide temperature range from -40°C to 100°C.
Operates up to 2500V and 7A current capacity.
This Jaeger circular connector is ideal for industrial electronics, telecommunications, and measurement equipment installations. Its durable build and secure connection features make it a dependable choice for demanding environments. Browse more industrial connectors and accessories in the Electronics & Electricals category at EnvMart.
Explore more products in our Industrial Circular Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports an operational voltage of up to 2500V.
The current capacity is rated at 7A.
This connector has an IP65 rating, making it dust-tight and protected against water jets.
It features an aluminium housing and gold-plated brass contacts for enhanced durability and conductivity.
The operating temperature range is from -40°C to 100°C.
It uses crimp termination for stable cable fixation.
This model has 7 contacts.
It features a push-pull mating type for secure connections.
The shell size is B0, suitable for miniature connector applications.
This connector is manufactured in France.
The connector has a straight body orientation.
It is suitable for industrial electronics, telecommunications, and measurement equipment installations.
