Schurter Thermal Circuit Breaker Panel Mount 2A 1-Pole 240V AC 48V DC T11 Series 4400.0047

Free Delivery in India | Lowest Global Shipping Charges

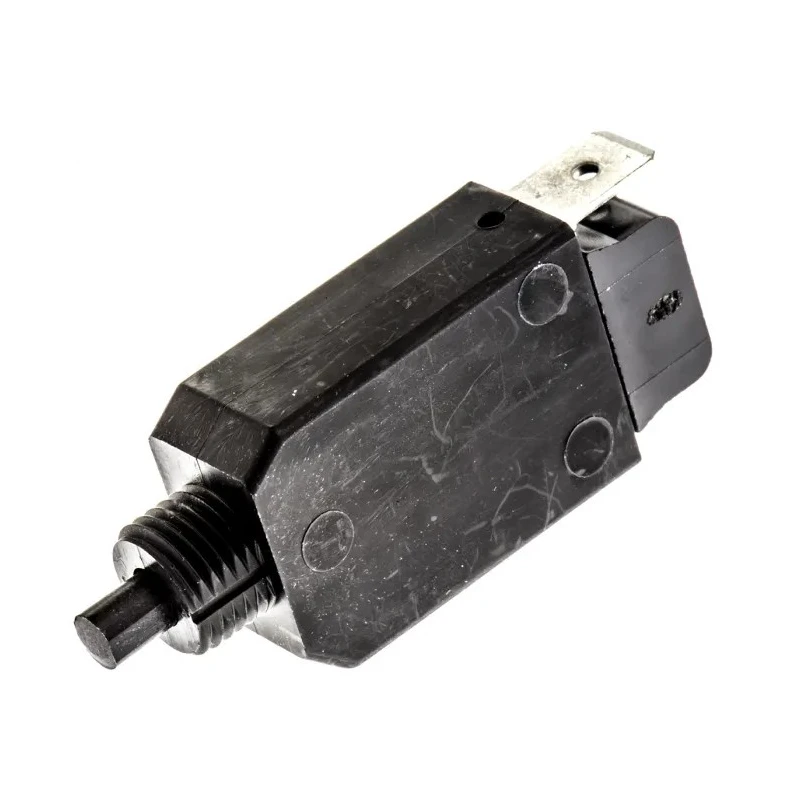

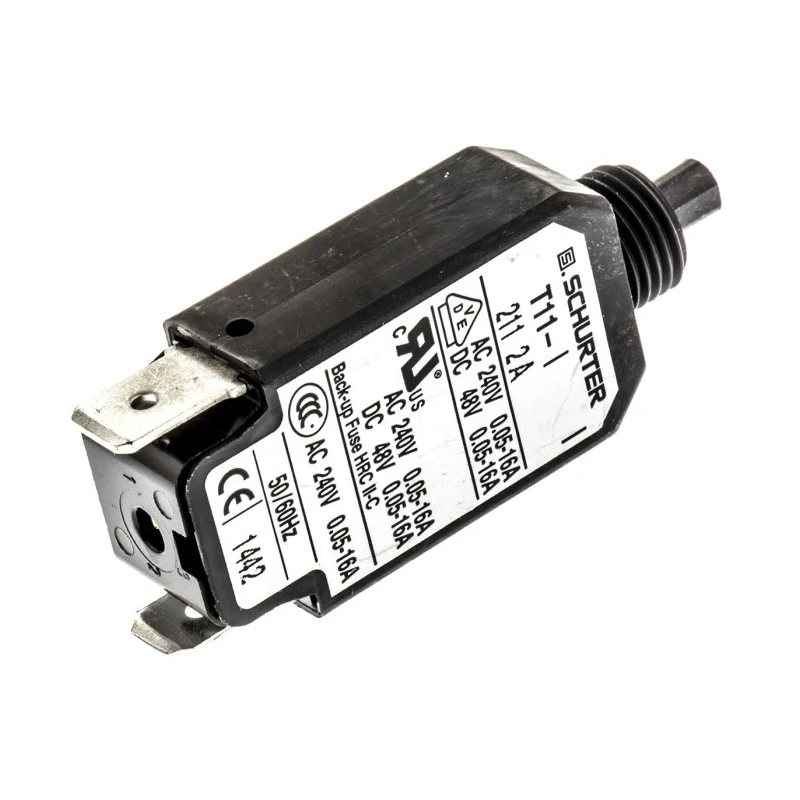

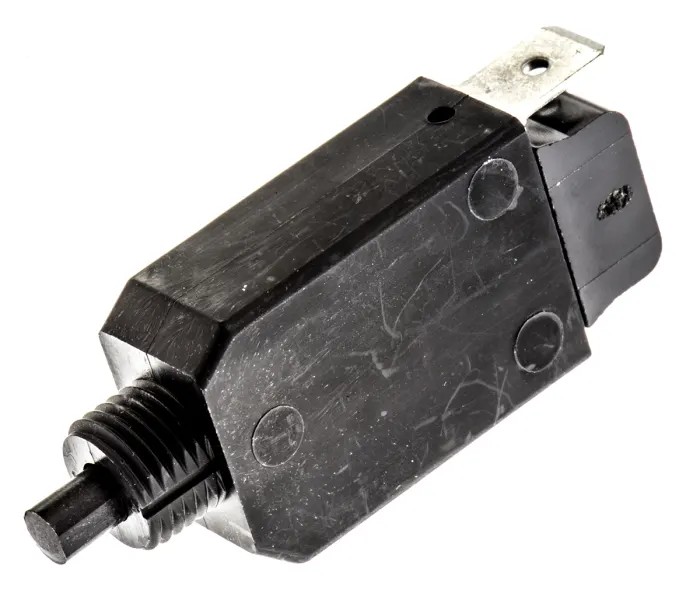

Schurter Thermal Circuit Breaker Panel Mount 2A 1-Pole 240V AC 48V DC T11 Series 4400.0047

Name: Schurter Thermal Circuit Breaker Panel Mount 2A 1-Pole 240V AC 48V DC T11 Series 4400.0047
Brand: Schurter
SKU: 181235
Price: 8.59 USD
Availability: InStock



Category Thermal Circuit Breaker Brand Schurter Condition New

Specifications

Country of Origin	India
Range	T11
Brand	Schurter
Height	50.2mm
Width	15.2mm
Mount Type	Panel
Current Rating	2A
Series	T11
Terminal type	Threaded
Breaking Capacity	6.5A
Number of Poles	1
Standards/Approvals	RoHS
Rated AC Voltage	240V ac
Rated DC Voltage	48V dc
Tripping Mechanism	Thermal
Reset Actuator Type	Push Button
Mount Hole Size	13.6 mm
Break Time	Medium

Key Features

The T11 series features a compact 1-pole thermal circuit breaker design.
It operates at 240V AC and supports rated DC voltage of 48V.
The circuit breaker has a breaking capacity of 6.5A suitable for medium break times.
Mounting is done via a panel with threaded terminals for secure connections.
Reset actuator type is a push button allowing easy manual reset after trip.
The device ensures a snap-in installation and offers a positively trip free release mechanism.
It uses a thermal tripping mechanism via a bimetallic element insensitive to short start-up surges.
The width measures 15.2 mm, height 50.2 mm, with a mount hole size of 13.6 mm.

Product Description

Schurter 4400.0047 is a Thermal Circuit Breaker from the T11 series designed for panel mounting and offers a 2A current rating suitable for protecting electrical circuits against overloads.

This single-pole compact circuit breaker measures 15.2 mm in width and 50.2 mm in height, with panel mount hole size of 13.6 mm, enabling straightforward installation into electrical panels.

Its rated voltage supports up to 240V AC and 48V DC, making it versatile for AC and DC circuit applications. The breaker employs a thermal tripping mechanism activated by a bimetallic element, providing reliable protection with a medium break time and 6.5A breaking capacity.

The device features threaded terminals for secure connection and a push button reset actuator for convenient manual resetting following a trip event. Its snap-in mount ensures easy fitting and removal, complemented by a positively trip free release to prevent nuisance tripping.

Constructed to meet strict RoHS requirements, the Schurter T11 breaker is well-suited for industrial, power tool, household appliance, power supply, charger, and other electrical protection applications where precise and reliable circuit protection is essential.

The T11 series thermal circuit breaker is compact and single-pole. Rated for 2A current with medium breaking time and 6.5A breaking capacity. Suitable for applications up to 240V AC and 48V DC. Threaded terminals and panel mount ensure secure installation.

Push button reset allows easy restoration after trip. Snap-in mounting and trip free release enhance reliability. Thermal tripping mechanism uses bimetallic element to prevent nuisance trips. Compliant with RoHS environmental standards.

Ideal for industrial, household, power supply, and power tool applications. Explore more Thermal Circuit Breakers and electrical components for industrial and commercial use on EnvMart.
