Cynergy3 RSF54V100MC RSF50 Series Vertical Nitrile Rubber (NBR) Float Switch 1m Cable NO/NC 240V AC Max 120V DC Max

Free Delivery in India | Lowest Global Shipping Charges

Cynergy3 RSF54V100MC RSF50 Series Vertical Nitrile Rubber (NBR) Float Switch 1m Cable NO/NC 240V AC Max 120V DC Max

Name: Cynergy3 RSF54V100MC RSF50 Series Vertical Nitrile Rubber (NBR) Float Switch 1m Cable NO/NC 240V AC Max 120V DC Max
Brand: Cynergy3
SKU: 181219
Price: 25.93 USD
Availability: InStock



Category Float Switch Brand Cynergy3 Condition New

Specifications

Country of Origin	China
Brand	Cynergy3
Model	RSF54V100MC
Cable Length	1m
Mount Type	Vertical
Housing Material	Polypropylene
Series	RSF50
Maximum Operating Temperature	100°C
Switch output	NO/NC
Minimum Operating Temperature	-20°C
Maximum Current	600mA
Maximum dc Voltage	120V dc
Standards/Approvals	WRAS and NSF
Maximum AC Voltage	240V ac
Gasket Material	Nitrile Rubber (NBR)

Key Features

The float switch is designed for vertical mounting in tanks or containers with limited side access.
Suitable for use with most liquids including acids, alkalis, detergents, and oils due to chemical-resistant polypropylene construction.
Supports normally open and normally closed configurations for versatile control applications.
Operates across a wide temperature range from -20°C to +100°C to accommodate demanding environments.
Accepts maximum 240V AC and 120V DC with a maximum current load of 600mA.

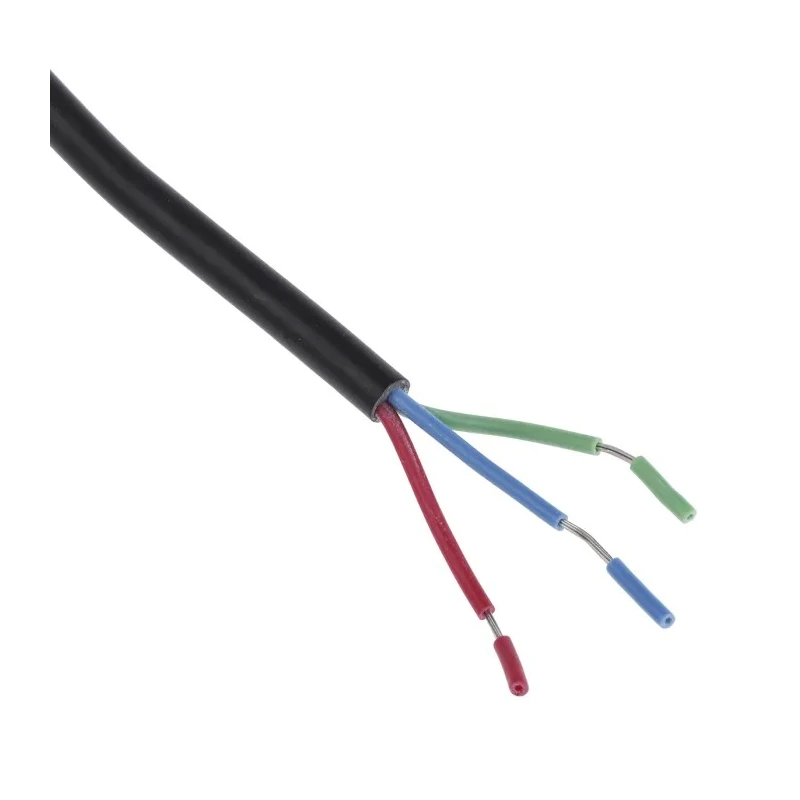

The 1 meter cable ensures flexible installation options in industrial and commercial liquid monitoring systems.
Gasket material is nitrile rubber (NBR) providing reliable sealing and durability.
Complies with WRAS and NSF standards ensuring suitability for potable water and food-related applications.

Product Description

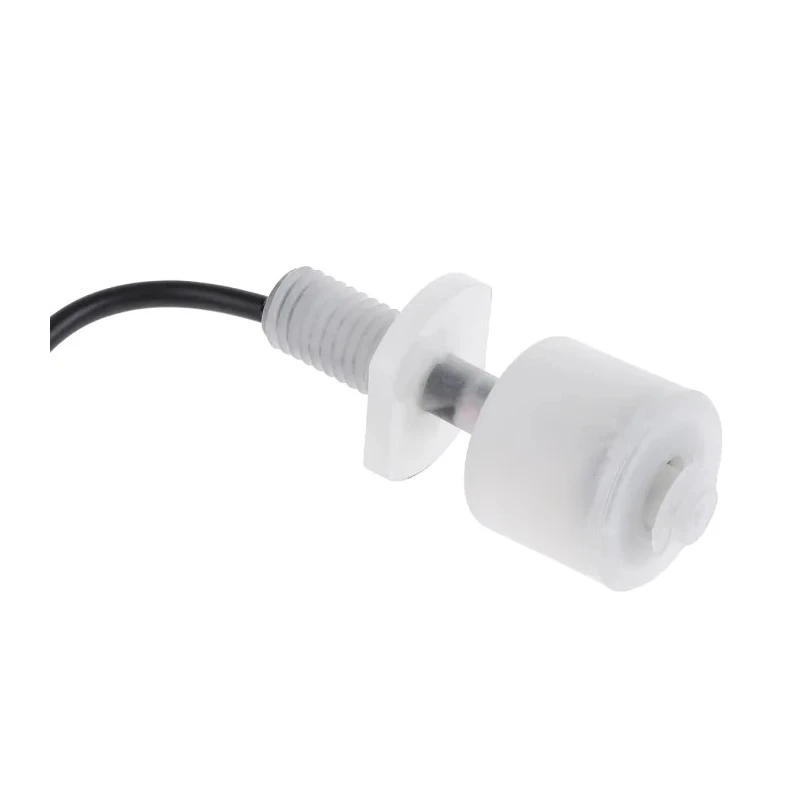

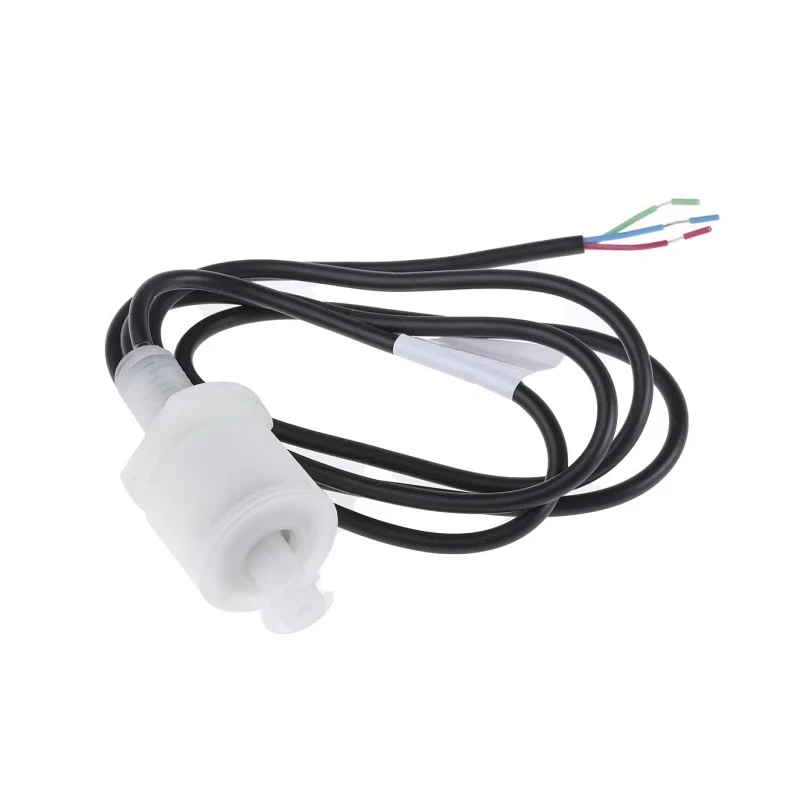

Cynergy3 RSF54V100MC RSF50 Series vertical nitrile rubber (NBR) float switch features a robust polypropylene housing with chemical and corrosion resistance, making it suitable for monitoring liquid levels in a variety of industrial, commercial, and agricultural applications. This vertical mount float switch includes a 1 meter cable and operates under normally open (NO) or normally closed (NC) switch output configurations, supporting flexible integration with control systems.

Designed to prevent overfilling in tanks and containers where side access is restricted, this float switch maintains liquid levels between a must-close level of 15 mm and a must-open level of 26 mm. Its wide operating temperature range from -20°C to +100°C ensures reliable performance in challenging environments, including chemical dosing, printing systems, and food processing equipment.

The RSF54V100MC accepts a maximum AC voltage of 240V and DC voltage of 120V with a maximum current capacity of 600mA, making it compatible with a range of pumps and controls. The nitrile rubber (NBR) gasket enhances sealing integrity and chemical resistance.

This product complies with WRAS and NSF certifications, attesting its suitability for potable water systems and food-grade applications. Manufactured in China, the float switch is part of the proven RSF50 Series known for reliability and versatility.

The float switch supports vertical mounting with either M12 or 1/8" NPT threaded fittings. It can be configured for normally open or normally closed operation by removing and inverting the float. The polypropylene housing ensures durability against acids, alkalis, detergents, and oils.

Its compact design is ideal for integration into vending machines, printing systems, and chemical dosing equipment. The device is certified for use in potable water systems with WRAS and NSF approvals.

Choose Cynergy3 RSF54V100MC for reliable liquid level monitoring in industrial automation, HVAC systems, water treatment, and manufacturing processes. Browse more in our Float Switch category at EnvMart for compatible sensors and control devices.
