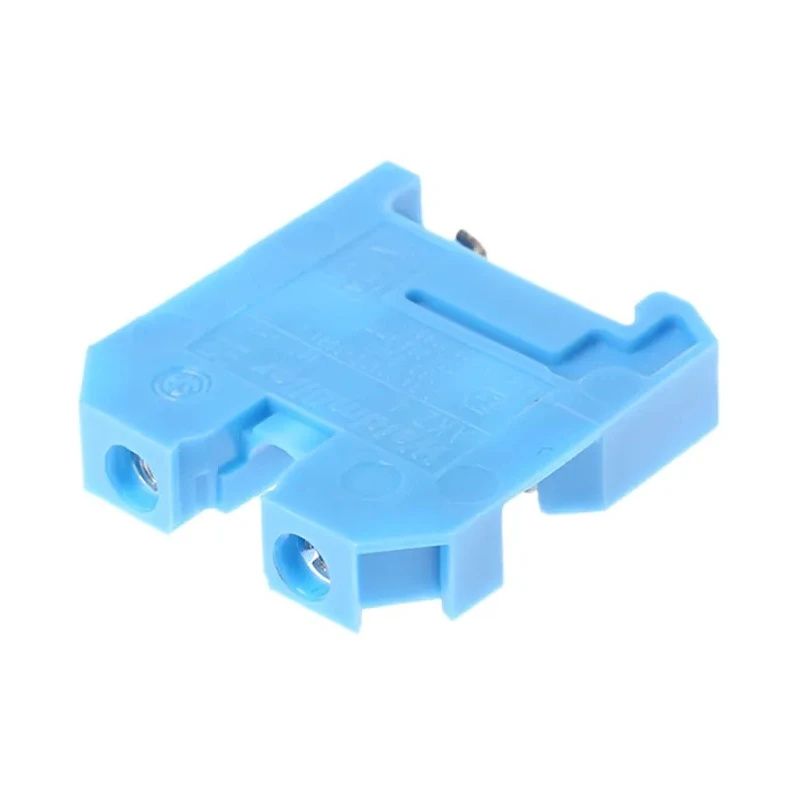

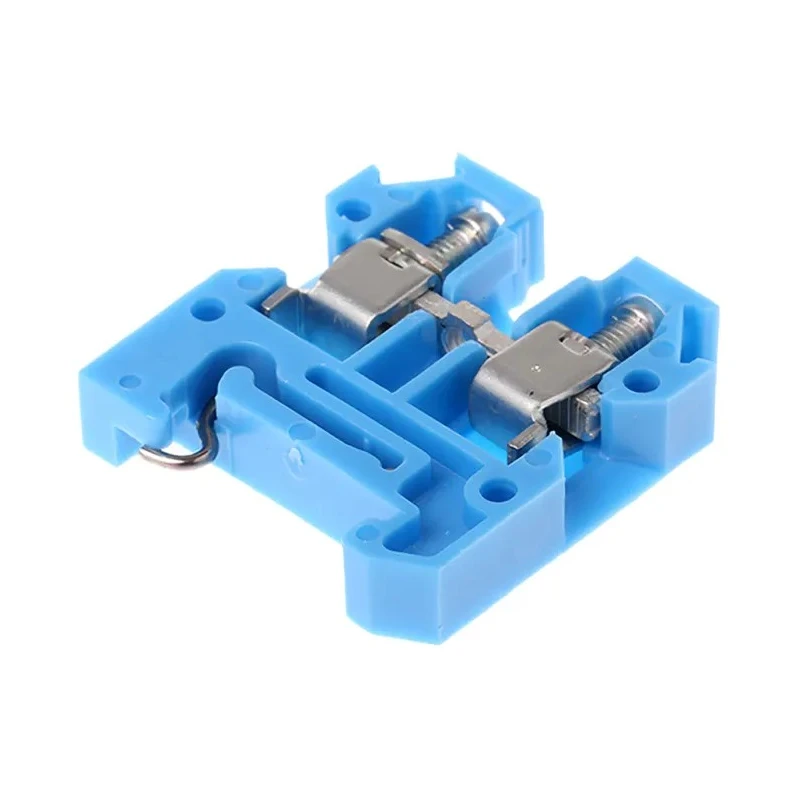

Weidmüller AKZ Series DIN Rail Terminal Blue, 0.22 mm² to 4 mm² Wire Size, 1-Level, Screw Termination, 400V 41A 0294380000
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 400V |
| Brand | Weidmüller |
| Colour | Blue |
| Series | AKZ |
| Termination Type | Screw |
| Maximum Operating Temperature | 100°C |
| Number of Levels | 1 |
| Minimum Operating Temperature | -50°C |
| Standards/Approvals | UL, CSA |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 0.22, 4mm² |
| Terminal Block Current | 41A |
| Miniature terminals, designed for mounting on 15 mm symmetrical rail to BS 6273 | 1982 TS15. The range is ideally suited for use in terminal boxes or areas where space is at a premium |
Key Features
- Supports wire sizes from 0.22 mm² to 4 mm² (24 AWG to 12 AWG).
- Rated for 400V voltage and 41A current capacity.
- Constructed with polyamide 6.6 housing and tin-plated brass contacts for enhanced durability.
- Operates reliably in temperatures ranging from -50°C to 100°C.
- Features one-level terminal design with screw type termination for easy installation.
- Complies with UL and CSA safety standards ensuring certified quality.
- Produced in Romania, suitable for industrial and electronic component use.
Product Description
Weidmüller 0294380000 AKZ Series DIN Rail Terminal Blue is a miniature terminal block designed specifically for mounting on 15 mm symmetrical DIN rails in accordance with BS 6273:1982 TS15 standards. Its compact design makes it ideal for use in terminal boxes or electrical enclosures where space saving is crucial.
The terminal is capable of accommodating solid or stranded wires ranging from 0.22 mm² to 4 mm², corresponding to AWG sizes 24 to 12. It is rated for operation at voltages up to 400V and a terminal block current of 41A, making it suitable for a variety of industrial electrical applications.
Constructed from durable polyamide 6.6, the housing is supplemented with tin-plated brass contacts to ensure strong and corrosion-resistant electrical connections. The terminal supports a wide operating temperature range from -50°C to 100°C, making it reliable in harsh environmental conditions.
The screw termination type facilitates secure and simple wire connections, and the single-level terminal design allows straightforward integration within electrical systems. This product complies with UL and CSA approvals, guaranteeing adherence to rigorous safety standards.
Manufactured in Romania, the Weidmüller AKZ series terminal blocks are well suited for industrial, laboratory, commercial, and electrical distribution system applications where reliability and space efficiency are priorities.
Secure DIN rail mounting on 15 mm symmetrical rails. Accommodates 0.22 mm² to 4 mm² wires. Rated 400V and 41A current capacity. Polyamide 6.6 housing with tin-plated brass contacts. Wide temperature operation from -50°C to 100°C.
Single-level screw termination design. UL and CSA certified for safety compliance. Made in Romania with high-quality manufacturing standards. Explore more from the Weidmüller AKZ Series DIN Rail Terminal range for reliable electrical connection solutions across industrial and electronic components.
Explore more products in our DIN Rail Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It accommodates wire sizes from 0.22 mm² to 4 mm², corresponding to AWG sizes 24 to 12.
This terminal block is rated for operation at voltages up to 400V and a current capacity of 41A.
It features a screw termination type, allowing for secure and simple wire connections.
It operates reliably in temperatures ranging from -50°C to 100°C.
It complies with UL and CSA safety standards, ensuring certified quality.
The housing is constructed from polyamide 6.6, with tin-plated brass contacts for enhanced durability.
It is designed for mounting on 15 mm symmetrical DIN rails in accordance with BS 6273:1982 TS15 standards.
This model features a single-level terminal design, allowing for straightforward integration within electrical systems.
It is manufactured in Romania, adhering to high-quality manufacturing standards.
It is well suited for industrial, laboratory, commercial, and electrical distribution system applications.
The specific dimensions are not provided, but it is designed to be compact for use in terminal boxes or electrical enclosures where space saving is crucial.
The product details do not specify any combinations or variants; it is offered as a single model.
