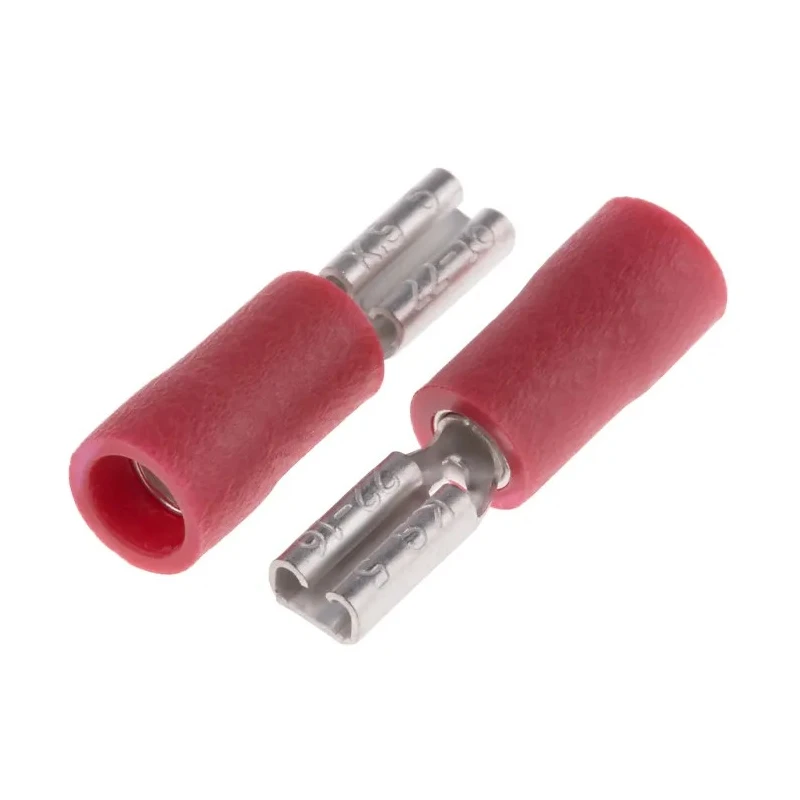

RS PRO Red Insulated Female Spade Connector Crimp 2.8 x 0.5 mm Tab 22 - 16 AWG 19mm 125-1944

Name: RS PRO Red Insulated Female Spade Connector Crimp 2.8 x 0.5 mm Tab 22 - 16 AWG 19mm 125-1944
Brand: RS PRO
SKU: 88848
Price: 0.14 USD
Availability: InStock



Category Spade Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Red
Orientation	Straight
Model	125-1944
Gender	Female
Insulation	Insulated
Overall Length	19mm
Contact Material	Copper, Brass
Series	RS PRO
Termination Type	Crimp
Insulation Material	Vinyl
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Per Unit, RS stock no	125-1944
RS stock no	270-7569
Tab Width	2.8mm
Tab Thickness	0.5mm
Tab Size	2.8 x 0.5 mm

Key Features

Suitable for wire sizes from 22 AWG to 16 AWG.
2.8 x 0.5 mm tab ensures compatibility with common male connectors.
Insulated with red vinyl for electrical safety and easy wire size identification.
Double crimp design includes internal copper sleeve for robust joint strength.
Manufactured with tin-plated brass contacts for excellent conductivity and corrosion resistance.
Straight orientation simplifies installation in confined spaces.
Plastic insulation provides protection against shock and environmental contaminants.
Overall length of 19 mm, compact and suitable for industrial control, automotive, and household appliances.

Product Description

RS PRO 125-1944 Red Insulated Female Spade Connector is a high-quality crimp terminal designed for efficient and reliable wire termination applications. This connector is engineered for use with stranded wires ranging from 22 AWG up to 16 AWG, accommodating a wide array of control, power, and signal wiring tasks in industrial, automotive, and commercial installations.

The connector features a 2.8 x 0.5 mm tab size, ensuring proper fitment with standard male tab connectors. Its red vinyl insulation not only provides robust electrical safety but also allows for quick visual identification of wire size compatibility, enhancing workflow efficiency and reducing errors during maintenance and assembly operations.

Offering a double crimp design with an internal copper sleeve, the connector guarantees a secure joint that withstands stress and vibration common in demanding environments. Tin-plated brass contacts enhance conductivity and resist corrosion, making this spade connector durable and effective for repeated use in harsh conditions.

The straight orientation of the receptacle simplifies installation even in tight locations, while the funnelled insulation design aids in easy wire insertion. Plastic insulation shields users from electric shock and offers added protection from dust, grease, and liquids.

With an overall length of 19 mm, this compact connector suits confined panel spaces and is ideal for use in industrial machines, control systems, automotive wiring, power supplies, HVAC equipment, and domestic appliances such as washing machines and dryers.

Quick connection and disconnection for maintenance and changeovers. Colour-coded insulation for easy terminal size recognition. Reliable crimp joint strength appropriate for high vibration settings. Resistant to corrosion for extended product life.

Supports a range of wire sizes, broadening application flexibility.

Industrial applications include control cabinet wiring, automotive harnesses, communication system setups, and household appliance repairs. RS PRO connectors are widely respected for reliability and safety in professional environments. Explore more connectors and wiring solutions in the RS PRO Spade Connector category on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is suitable for wire sizes ranging from 22 AWG to 16 AWG, accommodating various stranded wire applications.

The connector features a tab size of 2.8 x 0.5 mm, ensuring compatibility with standard male tab connectors.

It is constructed with tin-plated brass contacts for excellent conductivity and corrosion resistance, and features a vinyl insulation for electrical safety.

The overall length of this model is 19 mm, making it compact and suitable for use in confined spaces.

The double crimp design includes an internal copper sleeve, providing robust joint strength that can withstand stress and vibration in demanding environments.

It features red vinyl insulation, which not only provides electrical safety but also allows for easy identification of wire size.

The connector has a straight orientation, which simplifies installation in tight or confined spaces.

This unit is ideal for use in industrial machines, control systems, automotive wiring, power supplies, and household appliances such as washing machines and dryers.

The contacts are made from copper and brass, ensuring good conductivity and resistance to corrosion.

This model utilizes a crimp termination type, which is common for secure electrical connections.
