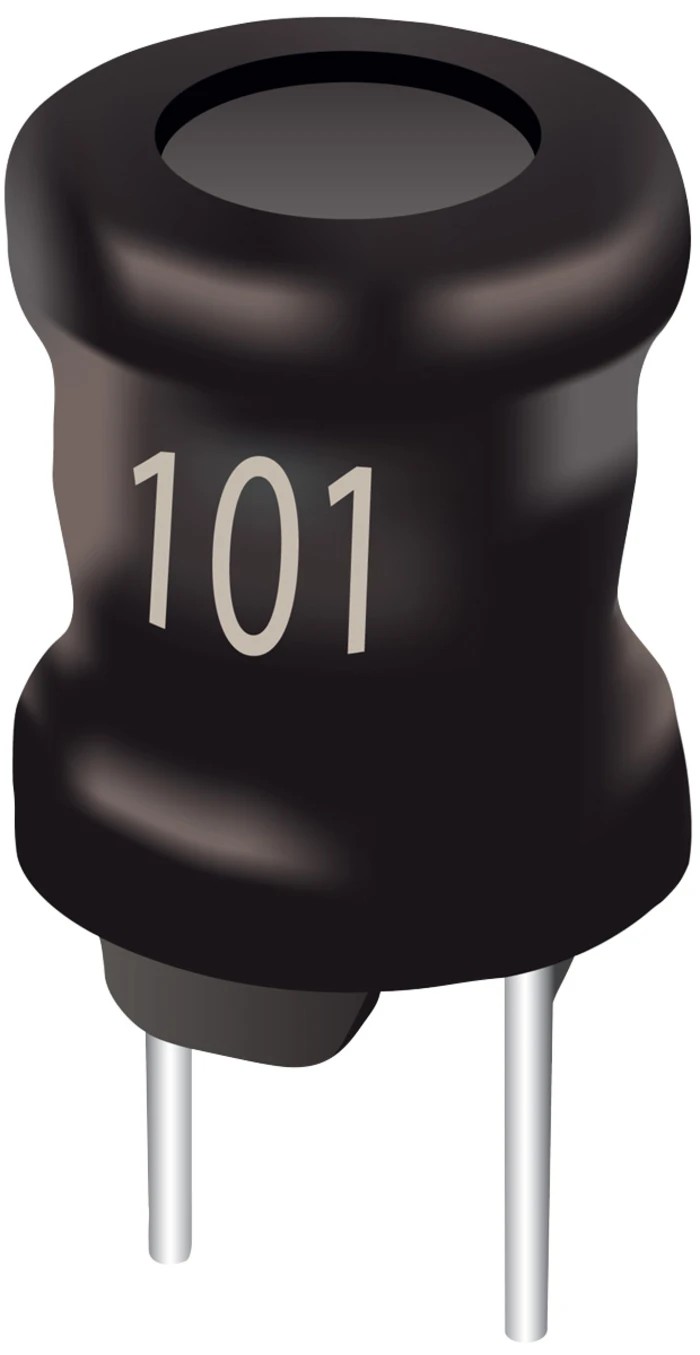

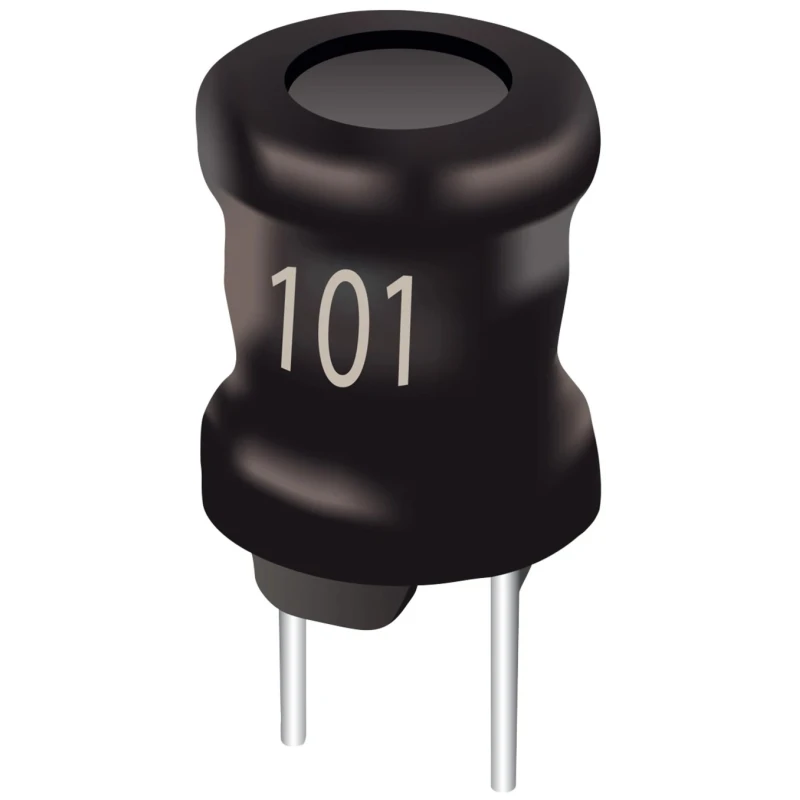

Bourns 12 mH Ferrite Leaded Inductor Radial Leaded, Max SRF 300 kHz, Q Factor 40, 40 mA Idc, 33 Ω Rdc RLB0913

Bourns RLB0913 12 mH Ferrite Leaded Inductor is a high-quality radial leaded inductor designed to meet demanding electrical performance requirements. Featuring a ferrite core, this component offers efficient inductance with a nominal value of 12 mH and a tolerance of ±10%. It operates with a maximum self-resonant frequency of 300 kHz and maintains a quality factor of 40, which supports minimal signal loss and superior frequency response in electronic circuits.

The maximum DC current rating is 40 mA, while the maximum DC resistance stands at 33 Ω, allowing it to handle currents suitable for low-power applications. The inductor is tailored for radial mounting with a fixed lead pitch of 5 mm, accommodating a wide range of PCB layouts. The leads feature a diameter of 0.65 mm, supporting secure electrical connections.

With a core material of ferrite, the component sustains performance over a broad operating temperature range from -55°C to 125°C, making it reliable in harsh environmental conditions. Its compact form factor with a diameter of 8.5 mm, height of 12.5 mm, depth of 12.5 mm, and length of 17.5 mm aids integration in space-constrained electronic assemblies.

This inductor series is packaged in trays for efficient handling in manufacturing environments. It is broadly applicable in industrial, manufacturing, and laboratory electronic equipment, particularly useful in DC-DC converters, power supply filters, output chokes, as well as electromagnetic and radio frequency interference (EMI/RFI) filters.

This inductor features a ferrite core material ensuring efficient magnetic performance. It is designed for radial mounting with fixed lead pitch of 5 mm. The inductance tolerance is ±10%, suitable for precise electronic applications.

Maximum DC resistance is rated at 33 Ω for reliable current carrying capacity. Operating temperature range spans from -55°C to 125°C for durability under varied conditions. Available in tray packaging suitable for efficient inventory and automated placement.

Compact dimensions: diameter 8.5 mm, height and depth of 12.5 mm each, length 17.5 mm. Ideal for use in DC-DC converters, power supplies, EMI/RFI filters, and output chokes. Boasts a minimum quality factor of 40 ensuring minimal energy loss during operation.
