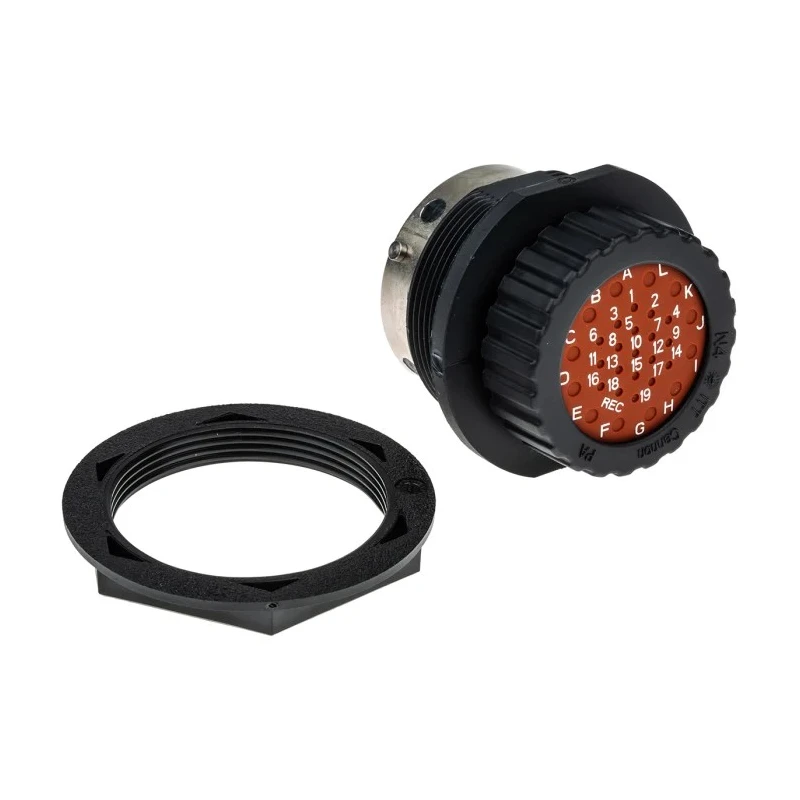

ITT Cannon Circular Connector Panel Mount 31 Contacts Socket Male IP67 Trident Neptune Series TN7S24-1219P1L / 192900-0077

ITT Cannon TN7S24-1219P1L / 192900-0077 Circular Connector is a high-performance, IP67 rated panel mount socket connector with 31 contacts, integrating 19 signal and 12 power contacts. It is designed to provide reliable connections in demanding industrial and automotive environments, supporting up to 30A current and 250V operating voltage.

The connector features a durable polymer housing combined with a metal coupling ring and stainless steel bayonet pins, providing robust mechanical strength and corrosion resistance. Its bayonet mating type with a straight orientation simplifies installation and ensures secure engagement.

This product utilizes crimp termination for secure wire connections and maintains functionality over a wide temperature range from -55°C to 105°C. The nickel plating on copper contacts assures excellent conductivity and long-lasting corrosion resistance.

The Trident Neptune series connectors are widely used in automotive, marine, and process control industries, providing a reliable mix of power and signal contacts within a single housing. The connector's IP67 rating guarantees full protection against dust and immersion in water, making it suitable for challenging environments.

The rear mounting is panel type, using a single D-hole for mounting, making it ideal for in-line connection applications. The design supports 500 mating cycles ensuring durability over prolonged use.

This connector includes features such as metal coupling nuts and bayonet retention mechanisms to combine the lightweight benefits of plastic with metal connector robustness. Accessories like backshells and dust caps are available to maintain sealing and system integrity.

Applications include off-road vehicles, trucks, buses, agricultural and construction equipment, printing machines, industrial automation, and stamping machines, making it an ideal choice where reliability and performance are critical.

This connector features a rugged polymer housing with a metal coupling ring for enhanced durability. It offers 31 contacts including 19 signal and 12 power contacts capable of handling up to 30A current and 250V voltage.

The connector has a bayonet mating type with a straight body orientation for easy installation. It supports crimp termination and is built to withstand operating temperatures from -55°C to 105°C. The connector is widely used in automotive, marine, and industrial process control environments requiring reliable sealing and connectivity.

Its IP67 rating ensures protection against dust and water submersion for harsh environmental conditions. The nickel-plated copper contacts guarantee excellent conductivity and resistance to corrosion. This panel mount socket connector is part of the Trident Neptune series, known for combining power and signal contacts in one housing.

The product is manufactured in Hungary and designed for 500 mating cycles ensuring long service life. Explore more Industrial Circular Connectors and ITT Cannon solutions at EnvMart for high-quality and reliable electrical components.
