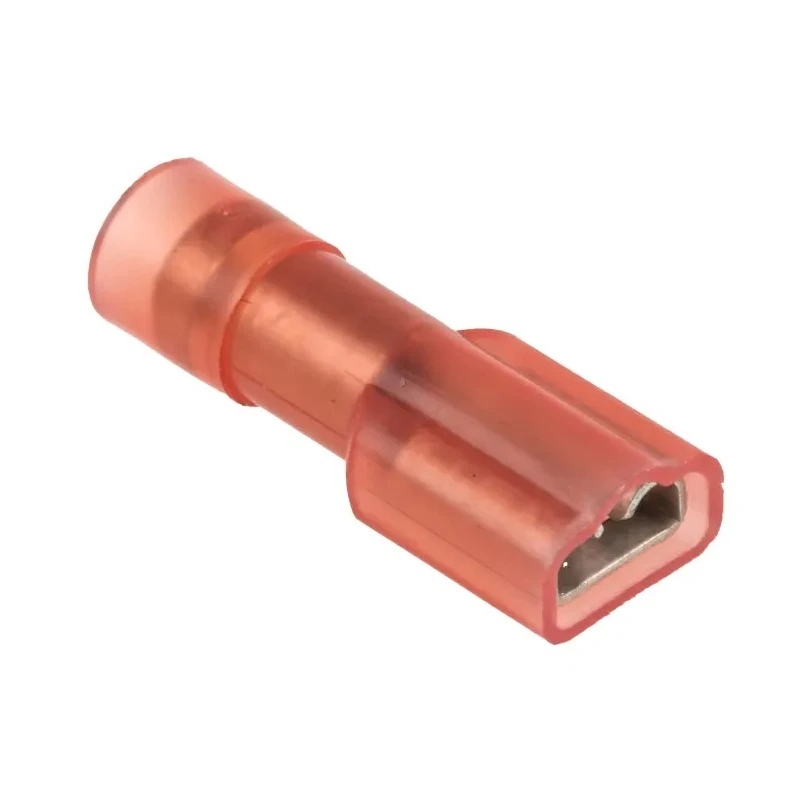

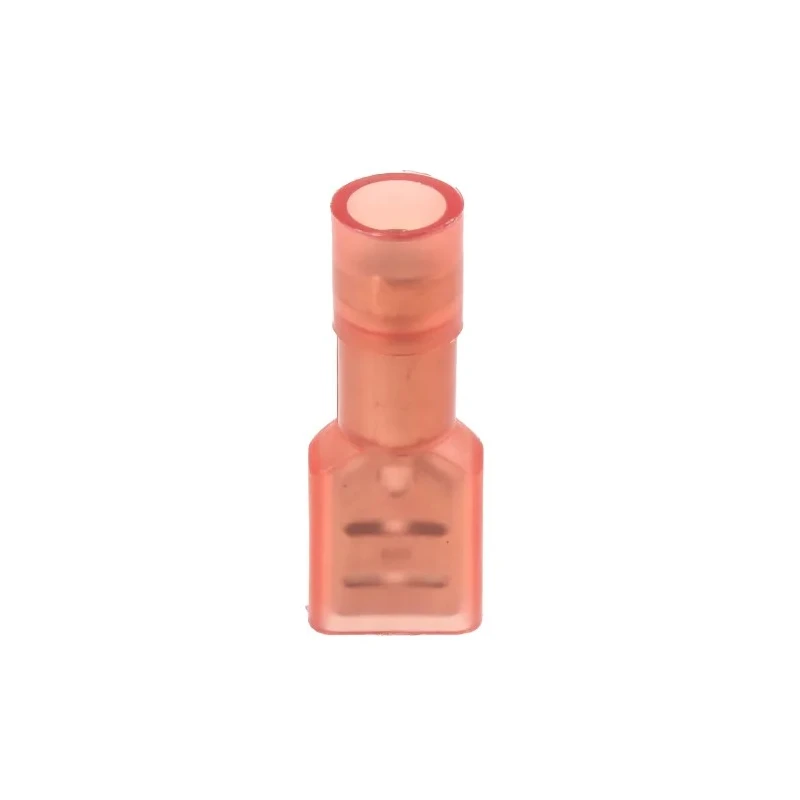

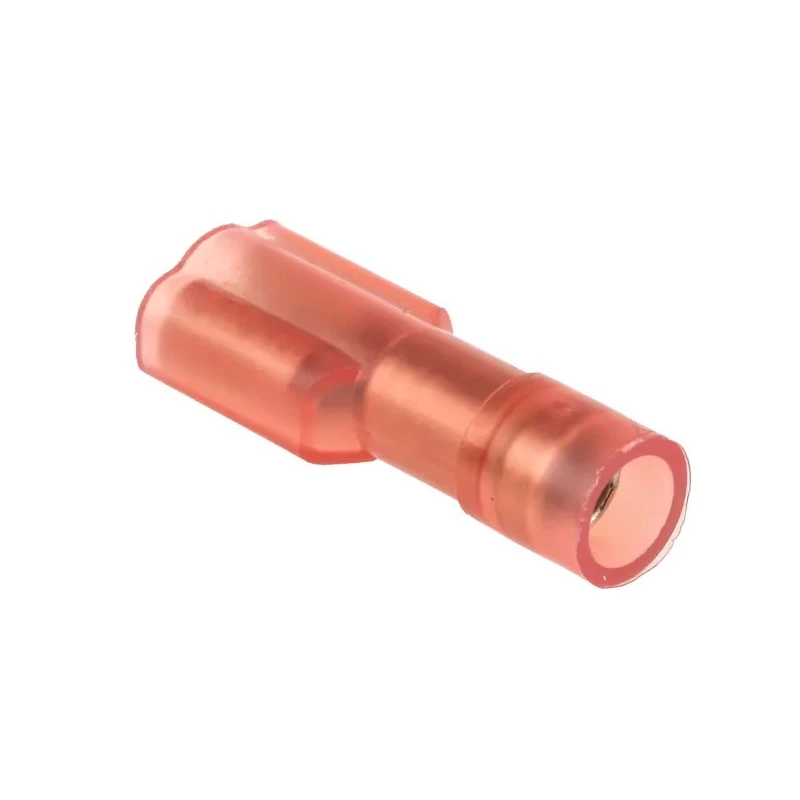

RS PRO Red Insulated Female Spade Connector Crimp 4.75 x 0.8 mm Tab Size 22 AWG to 16 AWG 267-4293
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| Orientation | Straight |
| Model | 267-4293 |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 20.2mm |
| Contact Material | Copper, Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Per Unit, RS stock no | 267-4293 |
| RS stock no | 270-7576 |
| Tab Width | 4.75mm |
| Tab Thickness | 0.8mm |
| Tab Size | 4.75 x 0.8 mm |
Key Features
- Offers quick and easy connection and disconnection for electrical wiring.
- Fully insulated with red nylon to protect against electric shock and contaminants.
- Double crimp design with internal copper sleeve for enhanced strength and durability.
- Tin-plated copper and brass contacts ensure excellent conductivity and corrosion resistance.
- Designed for use in industrial control systems, HVAC, automotive, and domestic appliances.
- Straight orientation with a tab size of 4.75 x 0.8 mm for compatibility with matching male connectors.
- Provides protection against vibration and mechanical stress.
- Made in Taiwan, Province Of China, ensuring quality manufacturing standards.
Product Description
RS PRO 267-4293 Red Insulated Female Spade Connector Crimp is a high-quality fully insulated crimp receptacle designed to deliver a robust electrical connection for wires ranging from 22 AWG to 16 AWG. The connector features a 4.75 x 0.8 mm tab size, making it suitable for use with matching male tab connectors in various industrial and commercial applications.
This fully insulated female spade connector is made of tin-plated brass with an internal copper sleeve that provides enhanced mechanical strength and a secure crimp joint. The insulation, made from durable nylon and colored red for easy identification, protects against electric shock and shields the connection from dirt, grease, and moisture.
The double crimp design reinforces the connection, preventing wire damage under high vibration or mechanical stress. The connector’s straight orientation facilitates easy insertion of male tab connectors and ensures reliable electrical continuity.
Common applications include industrial control systems, automotive wiring harnesses, communication equipment, HVAC systems, power supplies, and household appliances such as dishwashers, washing machines, and dryers.
The overall length of the connector is 20.2 mm, making it compact and easy to integrate into tight spaces. Offers quick and easy connection and disconnection for efficient wiring tasks. Red nylon insulation provides protection against electric shocks and contamination.
Double crimp barrel with internal copper sleeve enhances durability and crimp strength. Tin-plated copper and brass contacts ensure optimal conductivity and corrosion resistance. Compatible with 22 AWG to 16 AWG wires, suitable for a range of wire sizes.
Straight orientation simplifies installation and connection processes. Suitable for demanding industrial, automotive, HVAC, and domestic electrical applications. Produced under high manufacturing standards in Taiwan, Province Of China.
Browse more in the Spade Connector category at EnvMart for a wide range of electrical connectors and terminals.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 22 AWG to 16 AWG, which corresponds to a minimum wire size of 0.5 mm² and a maximum wire size of 1.5 mm².
The overall length of the connector is 20.2 mm, with a tab size of 4.75 x 0.8 mm.
The connector features contacts made of tin-plated copper and brass, and it is insulated with durable red nylon.
It has a straight orientation, which facilitates easy insertion of matching male tab connectors.
The double crimp design with an internal copper sleeve enhances the mechanical strength and durability of the connection, preventing wire damage under vibration or mechanical stress.
This connector is designed for use in various applications, including industrial control systems, automotive wiring harnesses, HVAC systems, and household appliances like dishwashers and washing machines.
The connector is fully insulated with red nylon, providing protection against electric shock and contaminants.
The tab size of this spade connector is 4.75 mm in width and 0.8 mm in thickness.
This model is manufactured in Taiwan, Province Of China, ensuring adherence to quality manufacturing standards.
The termination type for this spade connector is crimp, allowing for a secure electrical connection.
The connector is colored red, which helps in easy identification during installation and usage.
It supports quick and easy connections and disconnections for electrical wiring, making it suitable for various wiring tasks.
