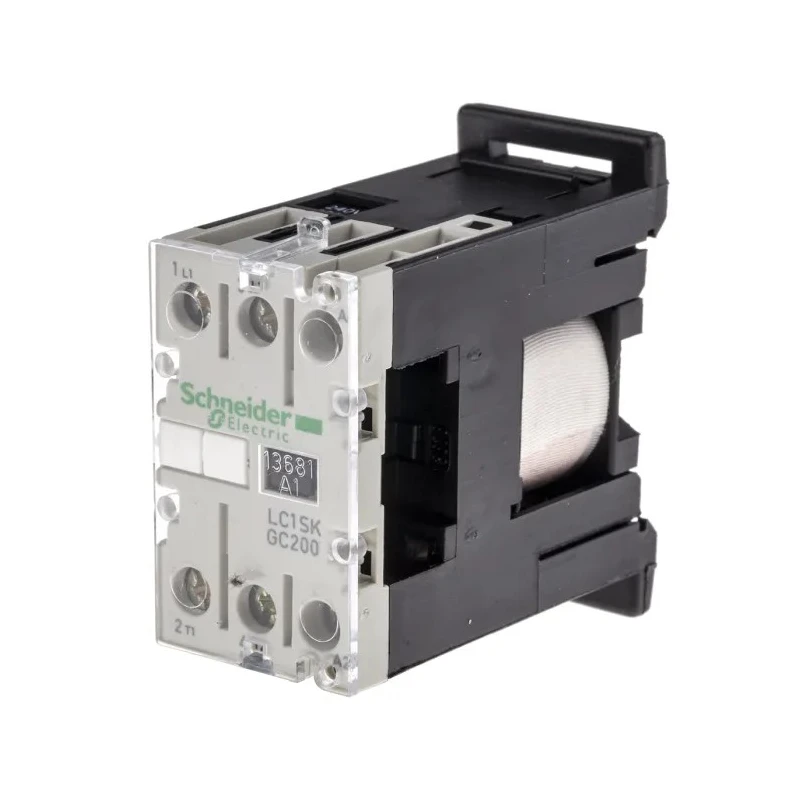

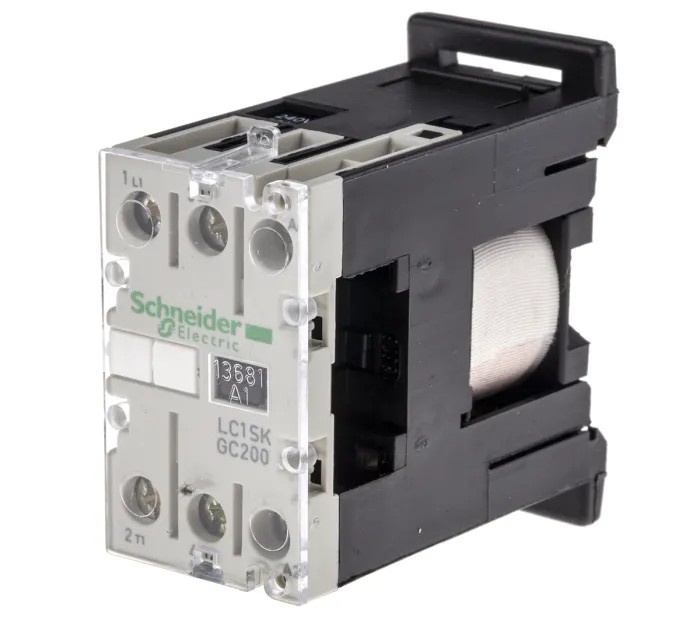

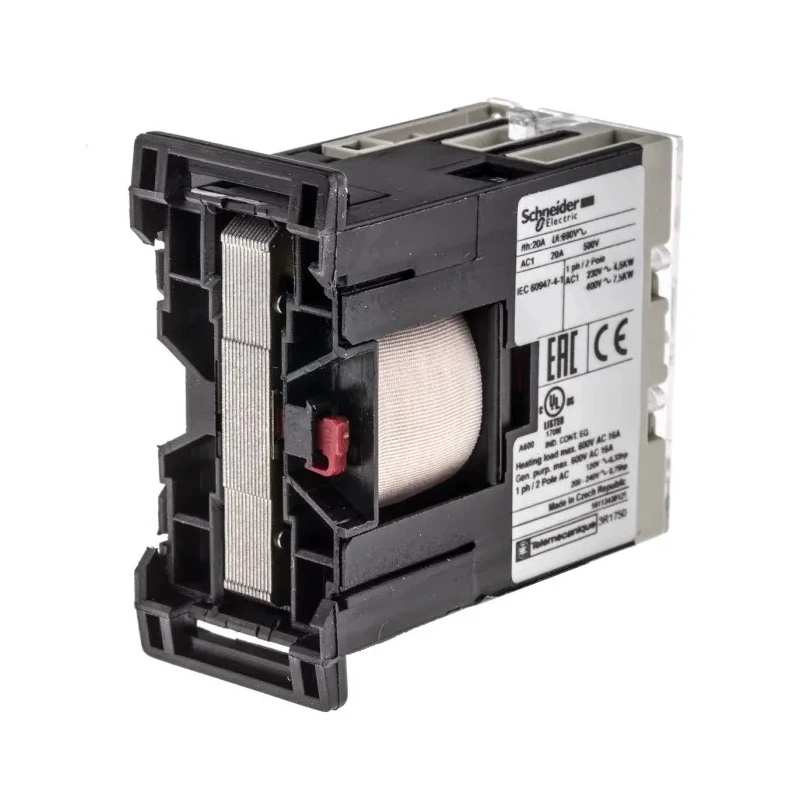

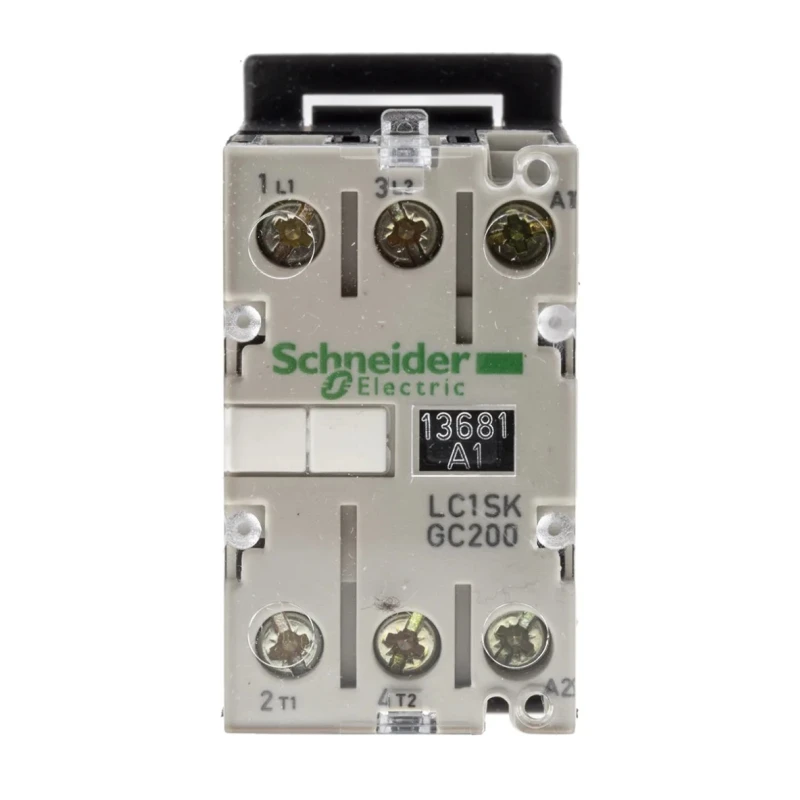

Schneider Electric LC1S Miniature Contactor, 2-Pole, 5 A, 2.2 kW, 230V AC Coil, 2 NO, 690V AC LC1SKGC200U7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 56mm |
| Model | LC1SKGC200U7 |
| Depth | 55.5mm |
| Width | 27mm |
| Mount Type | DIN Rail |
| Series | LC1S |
| Power Rating | 2.2kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number of Poles | 2 |
| Standards/Approvals | CSA, EAC, IEC, RoHS, UL, CCC |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 2 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 5A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO |
| Operational Current Ie | 20A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | DPST |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| Schneider Electric CA2SK Contactor, 10 A, 2 NO, 690V acBrand | Schneider Electric |
Key Features
- Supports motor control applications with high operational current capacity.
- Equipped with 2 normally open main contacts for effective switching.
- Includes 2 auxiliary contacts to enhance switching capabilities.
- Designed for DIN rail mounting with screw terminal connections.
- Operates reliably within -20°C to 50°C temperature range.
- Compact dimensions with 56mm length, 27mm width, and 55.5mm depth.
- Complies with international standards including UL, CSA, IEC, RoHS, and CCC approvals.
- Features IP20 finger-safe terminals with both North American and International markings.
Product Description
Schneider Electric LC1SKGC200U7 is a high-quality miniature contactor designed for industrial motor control applications. Featuring a 230V AC coil and a 2-pole configuration with a 5 A contact current, this device is suitable for controlling squirrel cage motors and other industrial control systems.
The contactor delivers a power rating of 2.2 kW at 230V AC and operates reliably within a temperature range from -20°C to 50°C. It features 2 normally open main contacts and 2 normally open auxiliary contacts, providing versatile switching capabilities to meet complex control requirements.
Installation flexibility is ensured with DIN rail mounting options and screw terminal type connections. IP20 finger-safe terminals enhance user safety while enabling easy wiring with both North American and International terminal markings.
This product complies with multiple international standards and approvals including UL, CSA, IEC, RoHS, and CCC, supporting global industrial usage requirements. The Contactor’s compact size, with 56mm length, 27mm width, and 55.5mm depth, allows convenient panel integration.
Additional features include built-in auxiliary contacts for switching enhancements, a coil with an incorporated rectifier, and a design focused on long mechanical and electrical life. The Schneider Electric LC1SKGC200U7 is ideal for industrial automation, HVAC systems, manufacturing control, and power distribution applications.
Supports motor control applications with high operational current capacity. Equipped with 2 normally open main contacts for effective switching. Includes 2 auxiliary contacts to enhance switching capabilities. Designed for DIN rail mounting with screw terminal connections.
Operates reliably within -20°C to 50°C temperature range. Compact dimensions with 56mm length, 27mm width, and 55.5mm depth. Complies with international standards including UL, CSA, IEC, RoHS, and CCC approvals. Features IP20 finger-safe terminals with both North American and International markings.
Constructed for high mechanical and electrical durability with quick installation features. Explore more Schneider Electric products in the Automation & Control Gear category at EnvMart for advanced industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1SKGC200U7 has a power rating of 2.2 kW at 230V AC.
This model can handle a contact current of 5 A.
It is designed for DIN rail mounting with screw terminal connections.
The LC1SKGC200U7 operates reliably within a temperature range of -20°C to 50°C.
This contactor includes 2 normally open auxiliary contacts.
The dimensions are 56 mm in length, 27 mm in width, and 55.5 mm in depth.
The coil voltage for this model is 230V AC.
It complies with UL, CSA, IEC, RoHS, and CCC standards.
The maximum contact voltage is 690V AC.
The main contacts are configured as 2 normally open (2 NO).
This model is designed for motor control applications.
It features IP20 finger-safe terminals with both North American and International markings.
