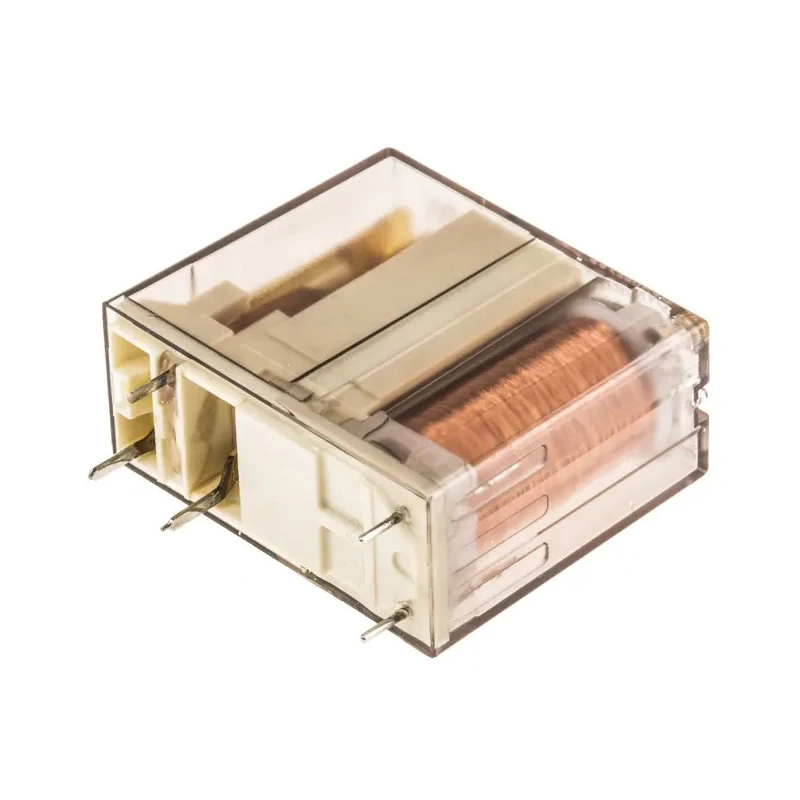

TE Connectivity RPII Series PCB Power Relay 12V dc Coil 12A Switching Current SPDT RP412012

TE Connectivity RP412012 PCB Power Relay is part of the RPII series designed for industrial and commercial electrical circuit switching applications. This relay operates with a 12V dc coil voltage and supports a maximum switching current of 12A with a single pole double throw (SPDT) contact configuration.

The relay features a coil power of 500mW, reducing power consumption while ensuring dependable actuation. It operates reliably within a temperature range from -40°C to +70°C, making it suitable for harsh environmental conditions encountered in industrial, HVAC, and power supply applications.

Constructed with silver alloy contacts, this relay guarantees excellent conductivity and long service life. The PCB mounting type and solder terminal facilitate easy integration into printed circuit boards for compact design and efficient installation.

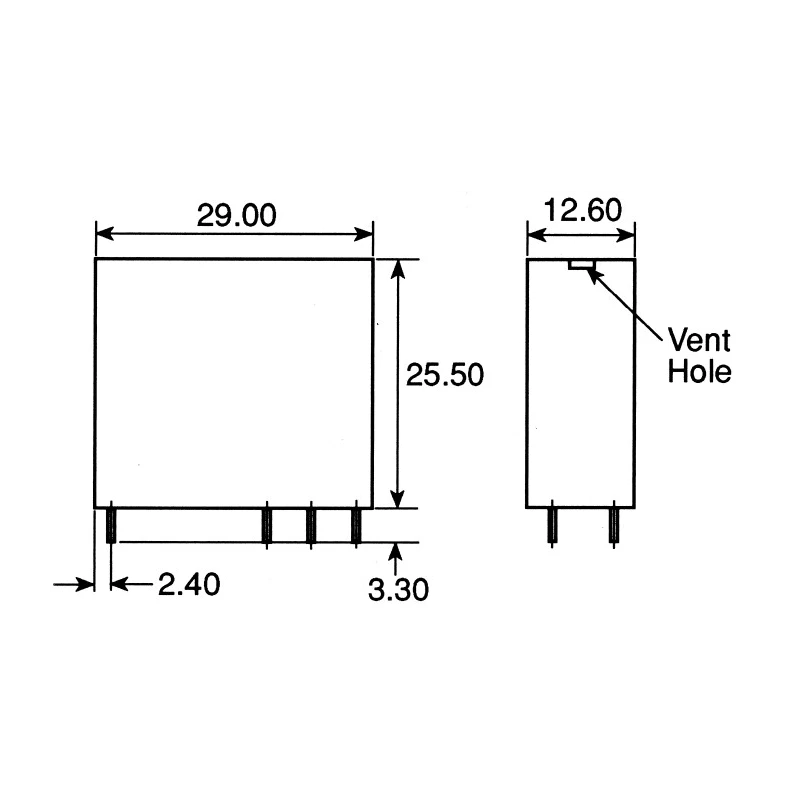

With switching capabilities up to 400V AC and a creepage clearance of 8mm, the RPII series relay ensures operational safety and compliance with relevant standards. Its compact size of 29mm length, 25.5mm height, and 12.6mm width allows it to fit into constrained spaces within electronic assemblies.

Typical applications include power supplies, domestic appliances, heating controls, and other automation equipment requiring reliable power relay switching. The product complies with RoHS directives and is manufactured in the Czech Republic, reflecting quality and environmental responsibility.

Features a 500mW coil power consumption ensuring energy efficiency. Operates over a wide temperature range from -40°C to 70°C. Switching AC voltage capacity up to 400V ac enabling versatile electrical applications. Constructed with durable silver alloy contact material for reliable conductivity.

Compact dimensions measuring 29mm length, 25.5mm height, and 12.6mm width for space-saving PCB designs. Coil resistance is precisely 270Ω for stable operation. RoHS compliant, promoting environmental safety standards. Designed for power supply, heating control, and domestic equipment integration.

Provides creepage and clearance distance of 8mm enhancing safety and insulation.
