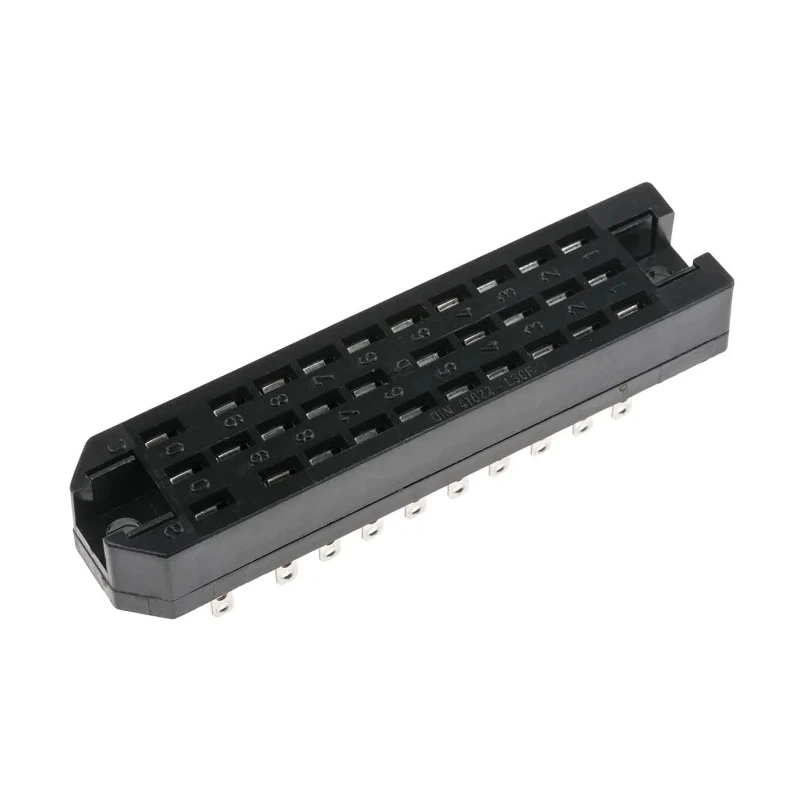

TE Connectivity 30 Way, Type Solder Class II, 3 Row Female Straight Rectangular Connector RP622

TE Connectivity RP622 is a female 30 way rectangular connector, featuring 3 rows and a straight orientation, designed in accordance with the DIN 41612 standard. This connector utilizes solder termination and silver-plated contacts, delivering excellent electrical conductivity and durable performance in industrial, electronic, and power connector applications.

It supports a current rating of 10 amperes per contact and a voltage rating of 450 volts, with operational temperature range between -55°C and 125°C. The contact material is composed of 90% silver, silver tin oxide, and 10% nickel, ensuring low contact resistance capped at 5 milliohms.

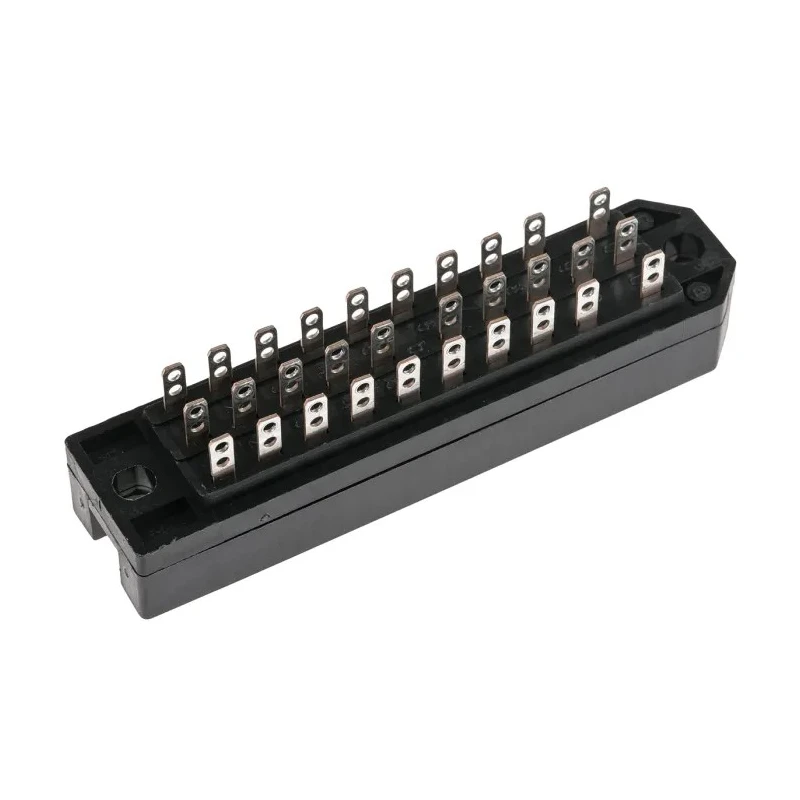

RP622 connectors are designed for free wiring with solder lugs, making them highly flexible and reliable for backplane and rack interconnections in electronic manufacturing and power distribution systems. The class II contact classification provides secure mechanical and electrical connection suited for various industrial sectors including manufacturing equipment, automation, and telecommunications.

The series RP622 connectors are rated for up to 1000 mating cycles, guaranteeing long service life and durability under heavy usage. Supports a rated current of 10 amperes per contact. Features silver-plated contacts for reliable conductivity.

Operates in a temperature range of -55°C to 125°C. Designed with a straight, 3 row, female configuration. Rated for 450 volts maximum voltage. Contact resistance not exceeding 5 milliohms. Material composition of 90% silver, silver tin oxide, and 10% nickel.

Complies with DIN 41612 standards under RP622 series. Suitable for industrial, electronic, power distribution, and telecommunications applications.

This connector is a trusted component for ensuring robust electrical connections in industrial and laboratory settings. Discover more TE Connectivity Connectors and products on EnvMart for your electronic component requirements.
