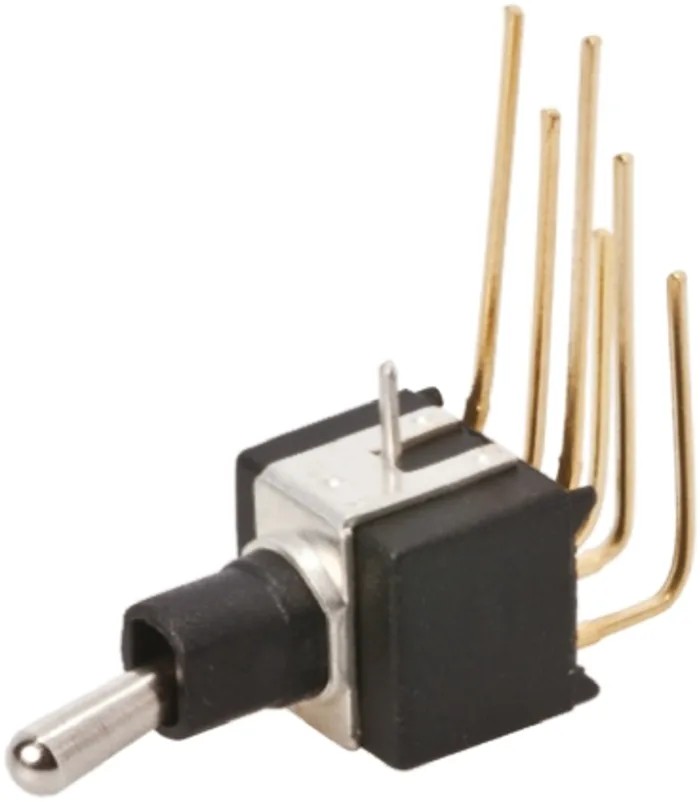

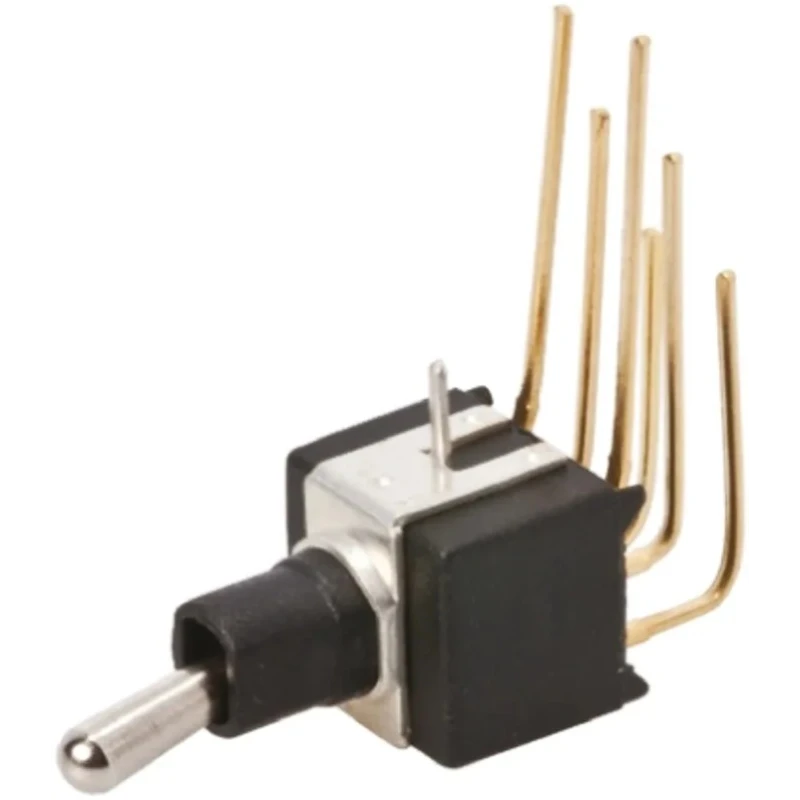

APEM Toggle Switch PCB Mount On-On DPDT Through Hole Terminal 20 V dc 20 V ac TL46WW050

The APEM TL46WW050 toggle switch is a high-quality PCB mount On-On DPDT switch designed for precision low-level switching applications in industrial, electrical, and automation systems. This ultra-min toggle switch features a compact form factor with a brass actuator and durable PBT case, ensuring structural robustness and long service life.

Gold plated brass terminals enhance conductivity and protect against corrosion, suitable for critical control circuits. The switch supports both AC and DC voltages of 20 V and can handle a contact current of up to 400mA, making it ideal for sensitive electronic circuits requiring dependable switching at low currents.

The device is rated for extensive operational cycles of 60000 in 2-position switching and 30000 in 3-position switching, providing excellent durability. It maintains functionality across a broad temperature range from -30°C to a maximum 85°C, suitable for demanding environmental conditions.

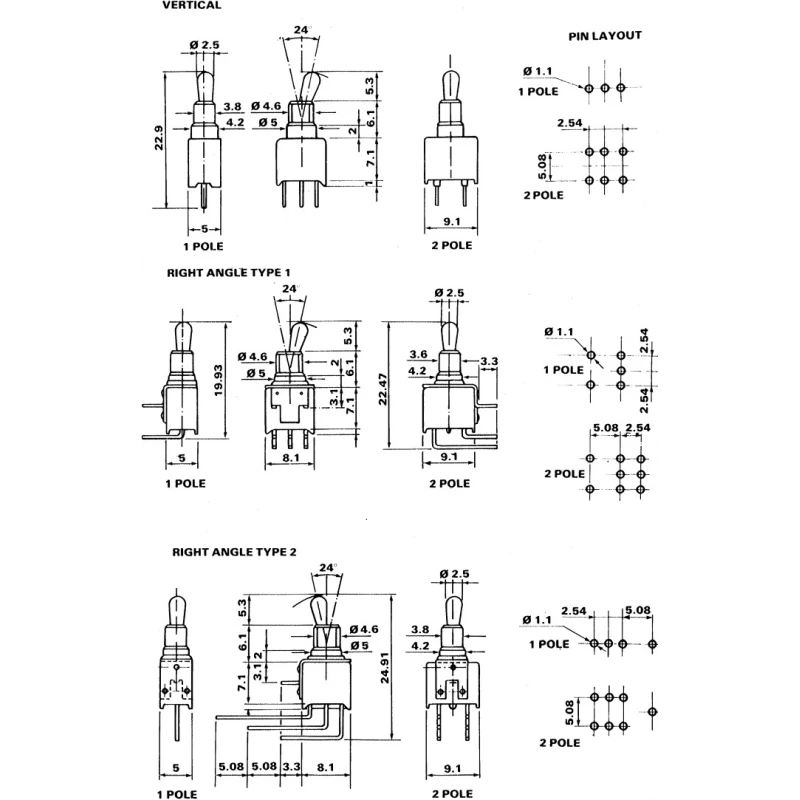

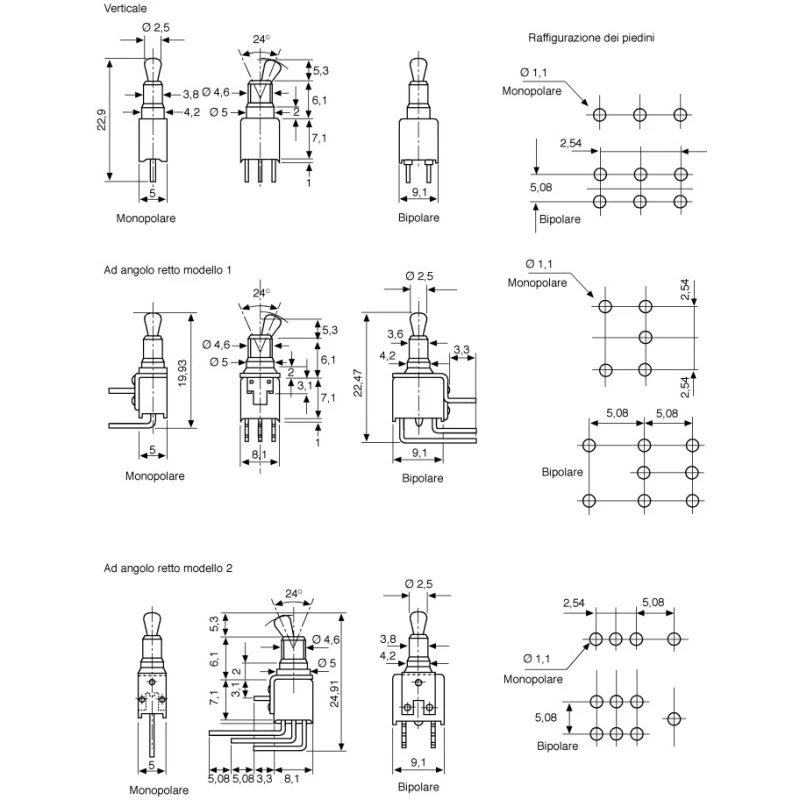

The sealed construction ensures the switch is washable and can endure immersion cleaning, aligning with industrial manufacturing hygiene standards. It is also wave solderable and withstands soldering temperatures of 260°C for up to 5 seconds. The actuator length is 5.3mm, with overall dimensions of 19.58mm height, 9.1mm length, and 8.65mm width, making it compact for integration in space-constrained PCB layouts.

Compact ultra-min design suitable for PCB mounting applications. Double pole double throw (DPDT) On-On switch operation for reliable control. Brass actuator and PBT case ensure durability and strength. Gold plated brass terminals provide excellent conductivity and corrosion resistance.

Rated for 400mA contact current with a minimum load current as low as 10μA at 5V dc. Capable of 60000 operations in 2-position mode and 30000 in 3-position mode. Wide operating temperature range from -30°C to 85°C ensures reliable use in harsh environments.

Sealed design compliant with RoHS and suitable for immersion cleaning and wave soldering. Actuator length is 5.3mm with dimensions of 19.58mm height, 9.1mm length, and 8.65mm width.

This Toggle Switch is ideal for use in industrial automation, electrical control panels, instrumentation, and other commercial electronic equipment where precise and dependable switching is required. Its robust construction and compliance with environmental and safety standards make it a preferred choice for designers and manufacturers.

Explore APEM switch series and compatible electrical components at EnvMart for comprehensive industrial solutions.
