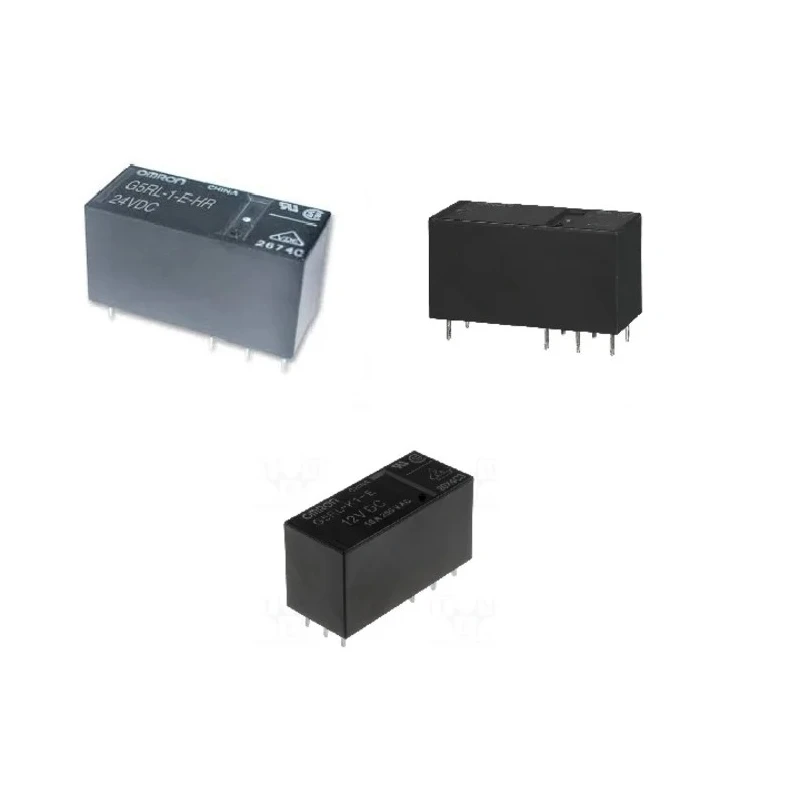

Omron Power Relay PCB Mount SPDT 24V DC Coil 16A Switching Current G5RL-1-E-HR DC24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G5RL-1-E-HR DC24 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 24V ac |
| Coil Power | 750mW |
Key Features
- Single pole double throw (SPDT) contact configuration provides versatile switching options.
- PCB mounting type ensures easy integration into printed circuit boards.
- Coil resistance of 1.4 kiloohms and coil power of 750mW optimize consumption.
- Constructed with silver alloy contacts for enhanced conductivity and reduced wear.
- Operates efficiently within a temperature range from -40°C to 85°C.
- Compliant with RoHS standards ensuring environmental safety.
- Maximum switching power of 4 kVA supports significant load handling.
- Designed for industrial, automation, and electrical applications requiring reliable power relay performance.
Product Description
Omron G5RL-1-E-HR DC24 power relay is a robust PCB mount relay designed for industrial and commercial applications requiring reliable switching performance at 24V DC coil voltage and 16A switching current capacity.
This SPDT (Single Pole Double Throw) relay features silver alloy contacts that ensure excellent conductivity and durability under continuous operation. The coil resistance of 1.4 kiloohms with a coil power consumption of 750mW provides energy-efficient operation.
Its compact design with dimensions of 29mm length, 12.7mm width, and 15.7mm height allows easy PCB integration in constrained spaces. The relay is mounted via solder terminals, enhancing mechanical stability on circuit boards.
Engineered with a creepage distance of 8mm between coil and contacts, it ensures high safety standards. It operates reliably across a broad temperature range from -40°C to 85°C, suitable for various industrial environments.
With switching power rated up to 4 kVA and switching voltages of 24V DC and 24V AC, this relay is ideal for signal conditioning, power control, and automation tasks. The product features RoHS compliance, supporting sustainable manufacturing processes. Originating from China, it promises quality consistent with Omron's standards.
Single pole double throw (SPDT) contact configuration provides versatile switching options. PCB mount type enables straightforward installation on printed circuit boards. Silver alloy contact material improves electrical performance and durability.
Operates over a wide temperature range from -40°C to 85°C for reliability in diverse environments. Compact size with 29mm length, 12.7mm width, and 15.7mm height facilitates flexible installation. Coil voltage of 24V DC with coil resistance of 1.4 kiloohms and coil power of 750mW ensures efficient operation.
Switching current of 16A and switching power up to 4 kVA supports substantial load handling. RoHS compliant for environmental safety and regulatory adherence. Solder terminal type for secure and easy mounting on PCB.
This Omron G5RL-1-E-HR DC24 power relay is widely used in electrical control systems, industrial automation, HVAC, manufacturing equipment, and signal conditioning applications due to its dependable performance and compact design.
Explore more Power Relays and electrical components on EnvMart for robust, industrial-grade products suited to your technical and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 16A, allowing it to handle significant electrical loads.
The coil voltage for this relay is 24V DC, which is essential for its operation.
The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height, making it compact for PCB integration.
It supports a maximum switching power of up to 4 kVA, suitable for various applications.
This relay features a Single Pole Double Throw (SPDT) contact configuration, providing versatile switching options.
It operates efficiently within a temperature range from -40°C to 85°C, suitable for diverse industrial environments.
The relay uses solder terminals for secure and easy mounting on printed circuit boards (PCBs).
The contacts are made from silver alloy, which enhances conductivity and reduces wear during operation.
Yes, it is compliant with RoHS standards, ensuring it meets environmental safety requirements.
The coil resistance is 1.4 kiloohms, which contributes to its energy-efficient operation.
This relay is widely used in electrical control systems, industrial automation, HVAC, and signal conditioning applications.
The relay is engineered with a creepage distance of 8mm between the coil and contacts, ensuring high safety standards.
