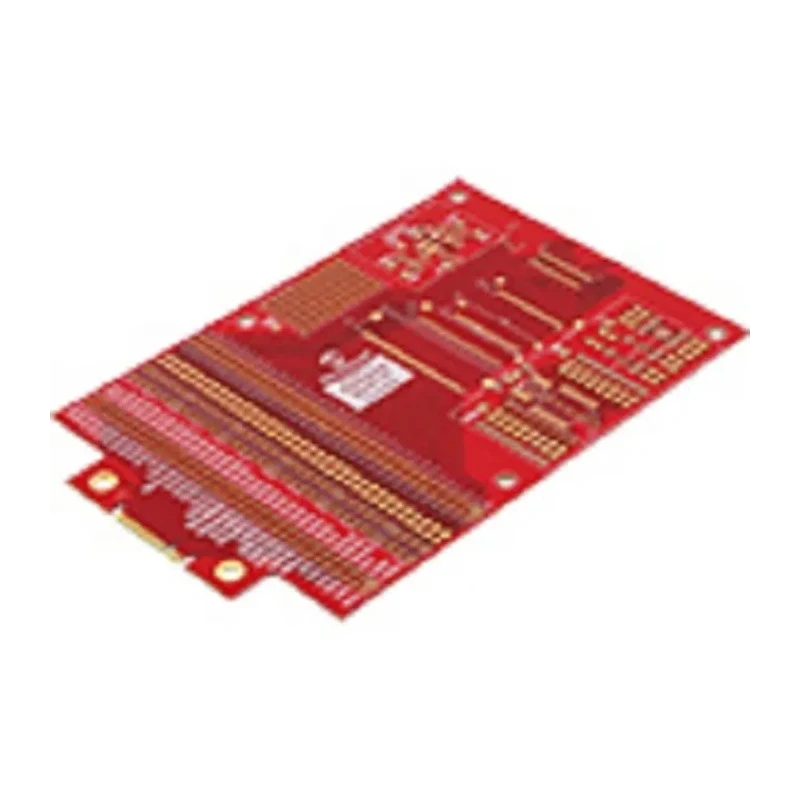

Microchip Graphics Prototype Board for Curiosity Boards LCD Development Board with Graphics Connector and LED Driver EV48R50A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | EV48R50A |
| Display Technology | LCD |
| For Use With | SAM and PIC32 development boards |
| Kit Classification | Development Board |
| Featured Device | Graphics Connector, LED Driver, 6 LCD Connectors |
| Kit Name | Graphics Prototype Board For Curiosity Boards |
Key Features
- The board features a graphics connector, LED driver, and six LCD connectors.
- Enables prototyping of off-the-shelf displays such as RGB and parallel 8080 interfaces.
- Supports prototyping of various color modes including RGB332 and additional interfaces.
- Allows probing of display and touch signals for debugging purposes.
- Facilitates connection to Curiosity Pro or Ultra Graphics Port Standard interface.
- Includes LED driver and component pad circuits to test backlight display functionality.
Product Description
Microchip EV48R50A Graphics Prototype Board for Curiosity Boards is a versatile LCD development board designed to enable developers to integrate and prototype display modules with 32-bit MCU Graphics development boards. It supports both SAM and PIC32 MCU platforms, making it ideal for a wide range of embedded graphics applications.
This development board includes a graphics connector, LED driver, and six LCD connectors, offering flexible support for various display types including RGB and parallel 8080 interfaces. Developers can also prototype other color modes such as RGB332 and additional display interfaces, expanding design possibilities.
The board's design facilitates signal probing for display and touch functions, which aids in debugging and development. Users can prototype touch controllers and other touch interfaces effectively.
With integrated LED driver and bare component pads, users can test backlight display functionalities to optimize display performance. The board connects easily to Curiosity Pro or Ultra Graphics Port Standard interfaces.
This product is a valuable tool in industries including embedded systems development, education, manufacturing, and electronic prototyping, providing a streamlined approach to graphics and display development.
The board features a graphics connector, LED driver, and six LCD connectors. Supports prototyping of various display interfaces including RGB and parallel 8080. Allows debugging by probing display and touch signals. Enables prototyping of touch controllers and touch interfaces.
Designed for use with SAM and PIC32 development boards. Explore more Development Boards and electronic components in the EnvMart catalog for embedded systems and display solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The EV48R50A features a graphics connector, an LED driver, and six LCD connectors, enabling versatile prototyping for various display types, including RGB and parallel 8080 interfaces.
This model is designed for use with SAM and PIC32 development boards, making it suitable for a wide range of embedded graphics applications.
The board supports prototyping of off-the-shelf displays using RGB and parallel 8080 interfaces, as well as various color modes including RGB332.
It allows probing of display and touch signals, which aids in debugging and development of touch controllers and other touch interfaces.
The EV48R50A is manufactured in India.
This board is valuable in industries such as embedded systems development, education, manufacturing, and electronic prototyping.
The board includes an LED driver and bare component pads to test backlight display functionality, optimizing display performance.
The EV48R50A is classified as a development board, specifically designed for graphics prototyping.
Yes, it allows effective prototyping of touch controllers and other touch interfaces, enhancing design possibilities.
The model number of this graphics prototype board is EV48R50A.
The board supports LCD display technology, making it suitable for various LCD applications.
The kit name for this development board is Graphics Prototype Board For Curiosity Boards.
