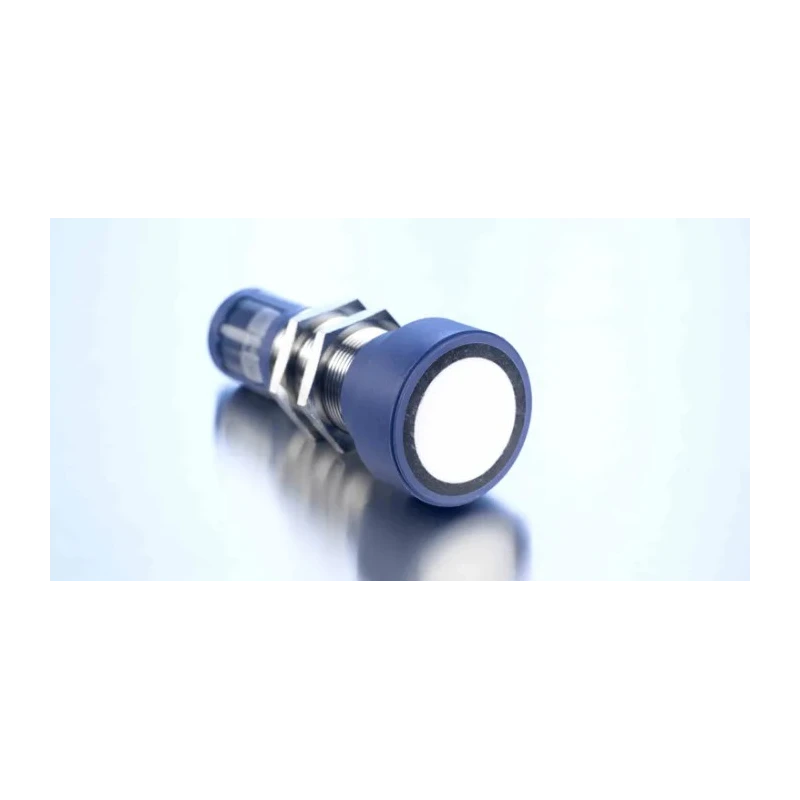

Microsonic Threaded Barrel Ultrasonic Proximity Sensor M30 Analogue 30V 5 m mic+340/IU/TC

The Microsonic mic+340/IU/TC is a high-performance threaded barrel ultrasonic proximity sensor designed for industrial automation and control applications. Featuring a robust M30 threaded barrel housing made of nickel plated brass, this sensor offers reliable operation with an IP67 rating, protecting against dust and water. It is built to accurately measure distances up to 5 meters using a 120 kHz transducer frequency, with an internal resolution ranging from 0.025 mm to 2.4 mm depending on detection range.

Equipped with a 5-pin M12 initiator plug, the sensor supports secure and straightforward panel mounting. It is engineered to operate effectively across a temperature range of -25°C to 70°C with integrated temperature compensation for enhanced measurement stability. The sensor supports a maximum DC voltage of 30V and AC voltage of 240V with a switching current of up to 80 mA, providing an analogue output signal suitable for varied industrial control systems.

This Ultrasonic Proximity Sensor can detect a wide range of materials including die cast zinc, plastic, and polybutylene terephthalate, making it versatile for numerous applications such as manufacturing automation, HVAC system monitoring, robotics, and quality control processes. The precise analogue output allows seamless integration into complex industrial networks and measurement systems.

The sensor's design ensures durable performance in harsh environments thanks to its nickel plated brass housing and IP67 protection level. This makes it ideal for demanding industrial, laboratory, and commercial automation setups. Manufactured in Germany and certified by UL, the mic+340/IU/TC sensor guarantees compliance with international safety and quality standards.

Operates with a maximum supply voltage of 30V DC and 240V AC. Constructed with a durable nickel plated brass threaded barrel housing. IP67 rated for protection against dust and water ingress. Equipped with a 5-pin M12 initiator plug for secure terminal connection.

Suitable for panel mounting with body dimensions 102 mm length, 47.5 mm width, and depth. Detects materials such as die cast zinc, plastic, and polybutylene terephthalate. Operating temperature range from -25°C to 70°C with temperature compensation.

Maximum switching frequency of 120 kHz with analogue output type. Certified by UL and manufactured in Germany. Explore EnvMart’s extensive selection of Microsonic sensors for automation and control solutions designed to enhance precision and reliability in your industrial applications.
