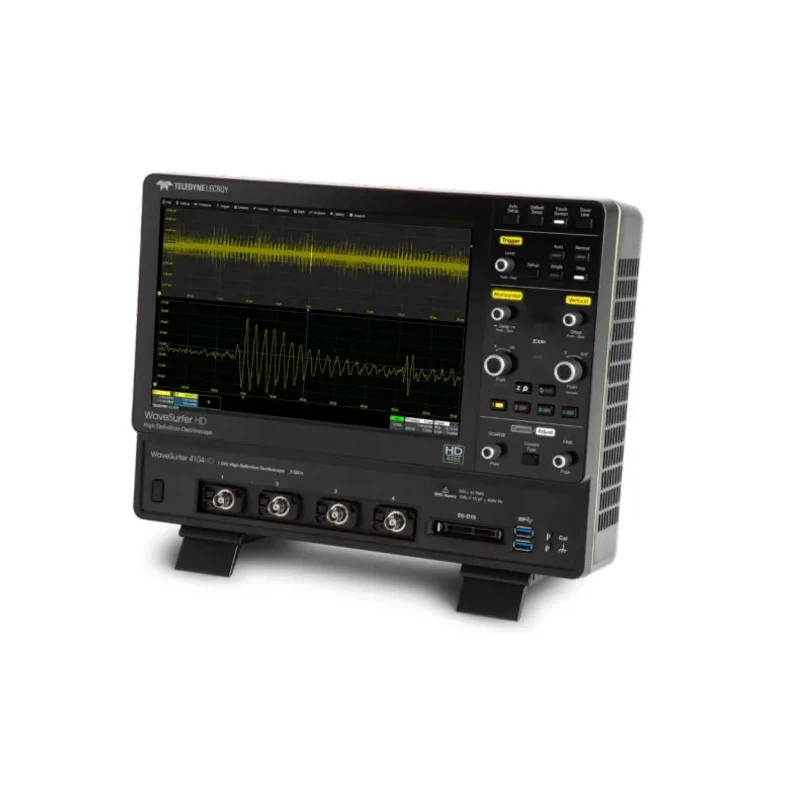

Teledyne LeCroy Desktop WaveSurfer 4000HD Spectrum Analyser 1 GHz WS4KHD-SPECTRUM-1

Teledyne LeCroy WS4KHD-SPECTRUM-1 Desktop WaveSurfer 4000HD Spectrum Analyser delivers exceptional measurement performance with a 1 GHz bandwidth driven by advanced 12-bit HD4096 ADC technology. This instrument captures fast signals with high fidelity and precision for industrial, laboratory, and manufacturing test applications requiring detailed spectral analysis.

The unit features a 12.1 inch 1280 x 800 capacitive touch screen enabling direct cursor control and convenient adjustments without navigating complex menus. The MAUI OneTouch user interface allows for intuitive operation and streamlined workflow.

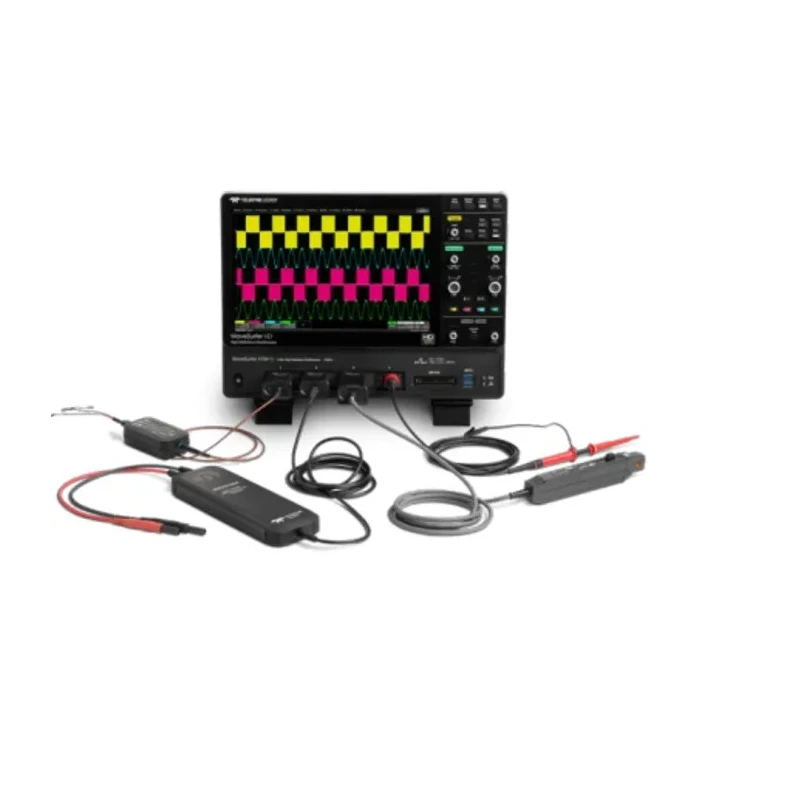

With ProBus input support, the spectrum analyser can interface with more than 30 different probe types from 9 categories, expanding application versatility. High-speed USB 3.1 ports and HDMI output provide flexible options for data transfer and external display.

Designed for desktop use, the device measures 160 mm in length, 380 mm in width, and 273 mm in height while weighing 5.3 kg. It operates reliably within a temperature range of 0°C to 50°C and meets CE, UL, cUL, and RoHS compliance standards ensuring safety and quality.

12.1 inch capacitive touch screen enhances usability. MAUI OneTouch interface simplifies operation. ProBus input supports extensive probe compatibility. USB 3.1 and HDMI provide versatile connectivity. Robust performance from 0°C to 50°C operating temperature.

Compact desktop form factor with precise dimensional footprint. Compliance with CE, UL, cUL, and RoHS certifications.

This Spectrum Analyser is ideal for industrial measurement, laboratory research, manufacturing quality control, and educational settings requiring precise spectral signal capture and analysis.
