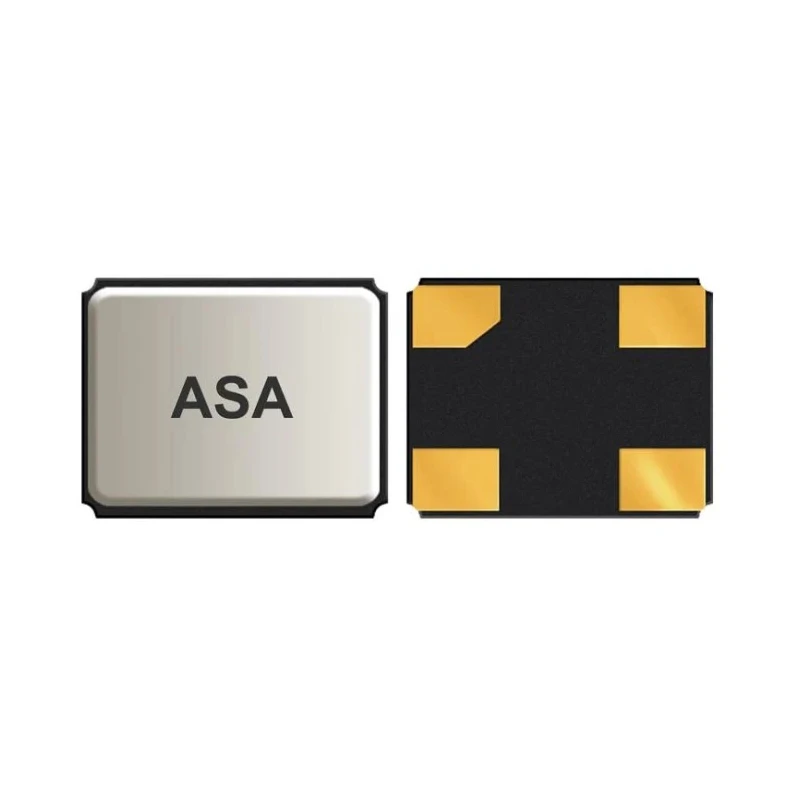

Abracon 12MHz Clock Oscillator Crystal Oscillator HCMOS 4-Pin Surface Mount ASA-12.000MHZ-L-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.7mm |
| Length | 2mm |
| Model | ASA-12.000MHZ-L-T |
| Packaging | Tape & Reel |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | ASA |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 12MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Supply Voltage | 3.66V |
| Minimum Supply Voltage | 2.97V |
| Oscillator Type | Clock Oscillator |
| Output Level | HCMOS |
Key Features
- Operates at output frequency of 12MHz with HCMOS output level.
- Compact surface mount package measuring 2.0 x 1.6 x 0.7 mm.
- Wide operating voltage range from 2.97V minimum to 3.66V maximum.
- Reliable performance from -40°C to +85°C operating temperature range.
- Quad (4) pin configuration suitable for high density SMT assemblies.
- Seam sealed package ensures high reliability and RoHS compliance.
- Tri-state function supports flexible control in clock applications.
- Ideal for applications in CCD clock for VTR cameras, computers, peripherals, and portable electronics.
Product Description
Abracon ASA-12.000MHZ-L-T is a 12MHz clock oscillator crystal oscillator featuring HCMOS output in a compact 4-pin surface mount package. The ultra miniature package size of 2.0 x 1.6 x 0.7 mm makes it suitable for high-density SMT PCB designs.
Designed for operation over a wide supply voltage range from 2.97V to 3.66V and operating temperatures from -40°C to +85°C, this oscillator meets the demands of various industrial and commercial electronic applications. The seam sealed construction ensures high reliability in challenging environments.
The oscillator's tri-state function adds versatility for clock gating and control mechanisms, ideal for precise timing requirements. It is commonly used in CCD clocking for video tape recorder (VTR) cameras, computer systems, peripheral devices, and a broad range of portable electronic equipment.
This device is RoHS compliant and suitable for lead-free reflow soldering processes, supporting eco-friendly manufacturing standards. Operates at 12MHz output frequency with HCMOS output level. Compact surface mount design measuring 2.0 x 1.6 x 0.7 mm in size.
Wide operating voltage range of 2.97V to 3.66V. Supports operating temperatures between -40°C and +85°C. 4-pin surface mount with tri-state function for flexible clock control. Seam sealed for enhanced reliability. Suitable for CCD clocks in VTR cameras, computers, and portable electronics.
Widely used in industrial, laboratory, computer hardware, and consumer electronics applications, the Abracon ASA series offers precision and dependability for clock generation needs.
Explore more electronic components and Crystal Oscillators in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 12MHz, featuring an HCMOS output level.
This unit has a compact surface mount package measuring 2.0 mm in length, 1.6 mm in width, and 0.7 mm in height.
It operates within a wide supply voltage range from 2.97V to 3.66V.
The oscillator is designed to operate within a temperature range of -40°C to +85°C.
This clock oscillator features a quad (4) pin configuration, suitable for high-density SMT assemblies.
It is packaged in tape and reel format, which is common for surface mount devices.
Yes, this model is RoHS compliant, ensuring it meets environmental standards for lead-free manufacturing.
It is commonly used in applications such as CCD clocking for VTR cameras, computer systems, and portable electronics.
The oscillator features a seam sealed construction, which enhances its reliability in challenging environments.
Yes, it supports a tri-state function, providing flexibility for clock gating and control mechanisms.
This product is classified as a clock oscillator, specifically designed for precise timing applications.
The country of origin for this oscillator is India.
