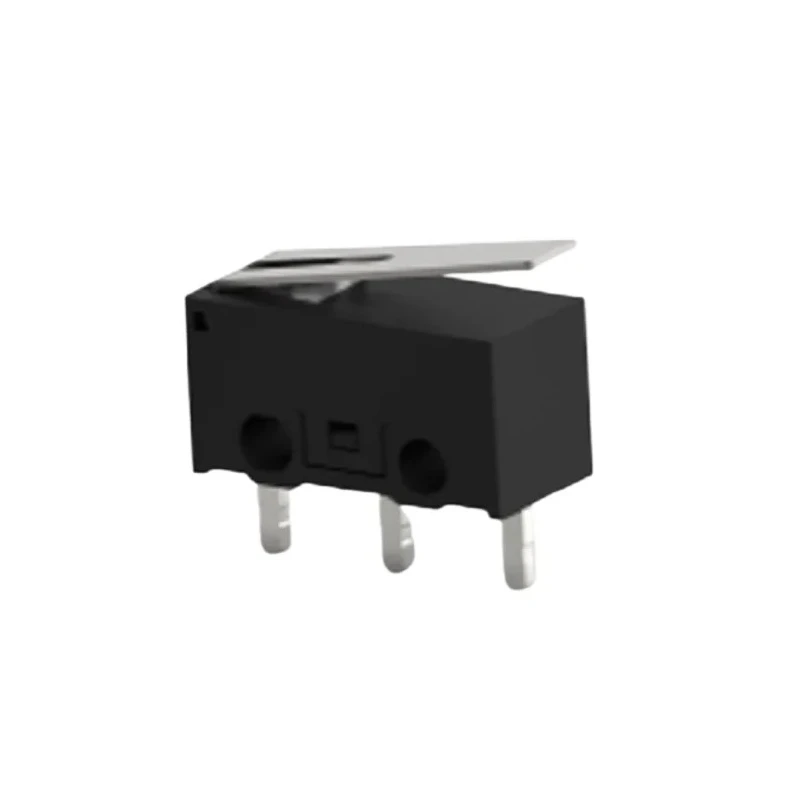

TE Connectivity Lever Snap Action Miniature Micro Switch, PCB Terminal, 3A, SPDT SAJ13XXHL0N88SDTPTQ
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ13XXHL0N88SDTPTQ |
| Series | SAJ |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPDT |
| Actuator Type | Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 3A |
| Operating Force | 0.75N |
| Mechanical Life | 500000Cycles |
| Microswitch Type | Miniature |
Key Features
- The switch features a lever actuator for precise mechanical control.
- PCB terminal type enables easy and reliable circuit board mounting.
- Designed for a switch contact current of 3 amperes suitable for various applications.
- Single Pole Double Throw (SPDT) contact configuration provides versatile switching.
- Operating force is 0.75N ensuring consistent actuation.
- Operational temperature range from -25°C to 75°C for diverse environments.
- Miniature form factor allows integration into compact electronic devices.
- Mechanical life rated at 500,000 cycles for reliable long-term performance.
Product Description
TE Connectivity SAJ13XXHL0N88SDTPTQ lever snap action miniature micro switch with PCB terminal connection is engineered to convert mechanical motion into electrical switching. Its compact design facilitates easy integration in electronic circuits.
This micro switch supports a current rating of 3 amperes with a reliable Single Pole Double Throw (SPDT) configuration, making it ideal for controlling multiple circuit paths.
The lever actuator type provides accurate and responsive actuation with an operating force of 0.75 newtons. It is suitable for use across a wide temperature window ranging from -25 degrees Celsius to 75 degrees Celsius, enabling deployment in diverse industrial, domestic, and commercial environments.
The miniature micro switch is constructed to meet RoHS standards, ensuring compliance with hazardous substance regulations. With a mechanical lifespan of 500,000 cycles, this component is built for durability and dependable switching in factory automation, consumer electronics, and household appliance applications.
PCB terminal terminals are resistant to flux, allowing for reliable soldering and secure mounting on printed circuit boards. The switch’s dimensional compatibility with other popular brands makes it a versatile choice for design engineers.
The switch features a lever actuator providing precise mechanical control. Rated for 3A switch contact current with SPDT configuration. Operational from -25°C to 75°C temperature range. Miniature form factor suitable for compact electronic installations.
Provides a long mechanical life of 500,000 cycles enhancing reliability. PCB terminal type terminals resistant to flux for durable circuit board mounting. Conforms to RoHS standards ensuring environmental compliance. Ideal for home appliances, consumer electronics, and factory automation.
Compatible dimensionally with other popular micro switch brands. Enables efficient and safe electrical switching in industrial systems. Explore more products in the Micro Switch category on EnvMart for diverse applications and advanced switching solutions from TE Connectivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This micro switch has a switch contact current rating of 3 amperes, suitable for various applications.
It operates within a temperature range of -25°C to 75°C, making it suitable for diverse environments.
This model features a lever actuator, providing precise mechanical control for actuation.
The mechanical life of this switch is rated at 500,000 cycles, ensuring reliable long-term performance.
It has a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching applications.
This model features PCB terminal type connections, which are resistant to flux for reliable soldering and secure mounting.
Yes, it conforms to RoHS standards, ensuring compliance with hazardous substance regulations.
The operating force for this switch is 0.75 newtons, ensuring consistent actuation.
The specific dimensions are not provided, but it is designed to be compact for integration into electronic devices.
It is suitable for applications in factory automation, consumer electronics, and household appliances.
This model is part of the SAJ series from TE Connectivity.
The country of origin for this micro switch is India.
