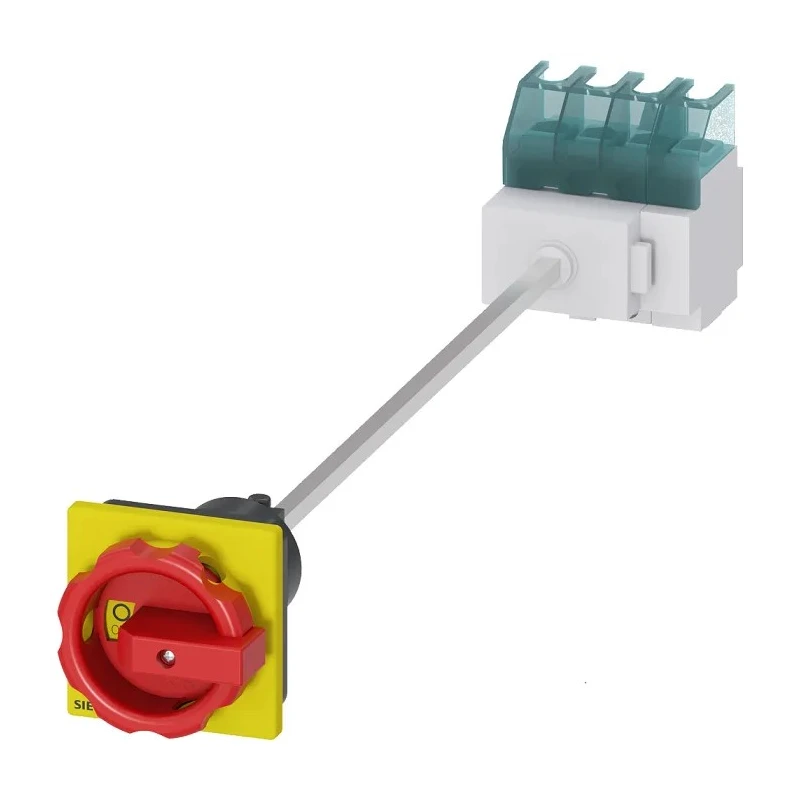

Siemens 4-Pole Floor Non-Fused Switch Disconnector 32A 11.5 kW IP65 SENTRON 3LD 3LD2213-1TL53

Siemens 3LD2213-1TL53 4-Pole Floor Non-Fused Switch Disconnector is engineered for industrial electrical applications, providing a reliable and safe means of circuit isolation. Designed with a four-pole configuration, it ensures full isolation of neutral and phase conductors to protect equipment and personnel.

This non-fused disconnect switch supports a switching current of 32 amperes and a switching power of 11.5 kW at 400V AC, making it ideal for controlling motors and heavy electrical loads. The device features an IP65 rated front enclosure that provides excellent protection against dust and water ingress, enabling outdoor and harsh environment installation.

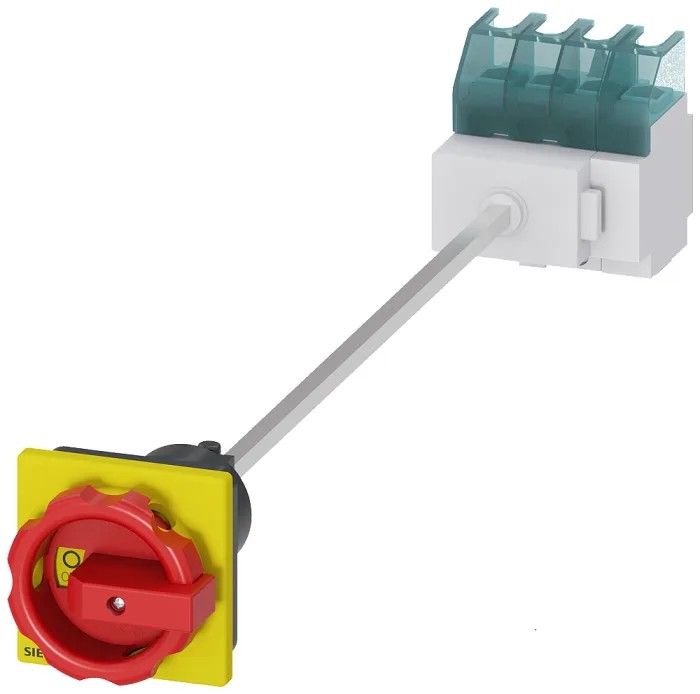

The durable rotary handle with distinct red and yellow colors enables clear manual operation, including locking in the OFF position for safety during maintenance or emergency shutoff. It is designed for floor mounting with door coupling, commonly integrated into switchgear door assemblies, providing a robust physical interface.

With secure box terminal connections for conductor sizes between 1.5mm² and 16mm², this switch disconnector accommodates both solid and stranded copper cables. It functions effectively within a temperature range of -25°C to 55°C, suitable for diverse factory and outdoor conditions. The device achieves mechanical endurance of up to 100000 operating cycles, ensuring long-term reliability in demanding industrial environments.

Applications include isolating three-phase motors in manufacturing plants, serving as a main switch or emergency off device in control and power distribution systems, and providing weatherproof installations for outdoor switchgear. It is manufactured to meet CCC certification standards and is produced in Germany.

Four-pole design for full neutral and phase isolation. Rated 32A switching current suitable for motor and power load isolation. Switching power rated at 11.5 kW at 400V AC for robust performance. IP65 protection ensures resistance to dust and water for outdoor use.

Red/yellow rotary handle with locking option for safe manual operation. Box terminal connections accommodate various copper conductor sizes securely. Floor mounting with door coupling ideal for integration in switchgear panels.

Operation temperature range from -25°C to 55°C for versatile applications. Mechanical endurance rated at 100000 cycles for reliable long service life. Suitable for isolating motors, emergency-off points, and maintenance isolation.

Manufactured in Germany, complying with CCC standards. Explore Siemens Switch Disconnectors in EnvMart to find compatible components and accessories that meet stringent industrial standards for safety and durability.
