Wurth Elektronik WE-CLFS Chassis Mount EMC Filter Screw Termination 10A 250V 100Hz -25Hz 810911010112

Free Delivery in India | Lowest Global Shipping Charges

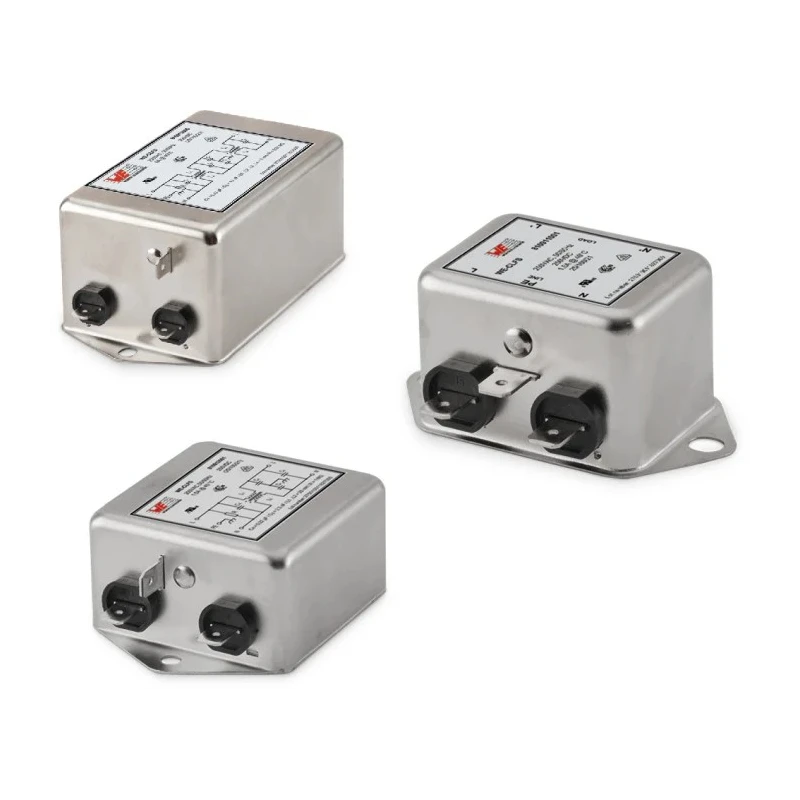

Wurth Elektronik WE-CLFS Chassis Mount EMC Filter Screw Termination 10A 250V 100Hz -25Hz 810911010112

Name: Wurth Elektronik WE-CLFS Chassis Mount EMC Filter Screw Termination 10A 250V 100Hz -25Hz 810911010112
Brand: Wurth Elektronik
SKU: 176427
Price: 20.22 USD
Availability: InStock



Category EMC Filters Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	54mm
Length	43mm
Depth	29mm
Mount Type	Chassis Mount
Operating Frequency	100, -25Hz
Series	WE-CLFS
Maximum Operating Temperature	100°C
Resistance	300mΩ
Capacitance	0.68μF
Minimum Operating Temperature	-25°C
Maximum Current	10A
Number of Phases	1
Leakage Current	0mA
Maximum Voltage	250V
Inductance	1mH
Standards/Approvals	EN 50110-1
Termination Style	Screw

Key Features

This single-phase EMC filter is designed for chassis mount applications with screw termination.
It features 1 mH inductance and 0.68 μF capacitance for effective EMI filtering.
Operating temperature ranges from -25°C to 100°C suitable for industrial environments.
Compact dimensions of 43mm length, 54mm height, and 29mm depth enable easy integration.
Low resistance of 300mΩ and zero leakage current enhances performance.
Complies with EN 50110-1 safety standards and supports UL 94 V-0 flammability rating.
Ideal for industrial electronics, telecommunications, switched-mode power supplies, and household goods.

Product Description

Wurth Elektronik model 810911010112 chassis mount EMC filter is engineered for reliable electromagnetic interference suppression in single-phase power line applications. Rated for a maximum current of 10A and maximum voltage of 250V, this filter ensures effective noise attenuation over frequencies of 100Hz and -25Hz, making it suitable for industrial, telecommunications, and switched-mode power supply environments.

The WE-CLFS series filter features 1 mH inductance combined with 0.68 μF X2-capacitance to provide broadband noise suppression in both common and differential modes. Its screw termination style and chassis mounting design allow for straightforward and secure installation. The compact form factor with dimensions 43mm (L) x 54mm (H) x 29mm (D) aids in fitting into space-constrained electrical assemblies.

Operational in a temperature range from -25°C up to 100°C, it offers durability in demanding conditions. The filter exhibits low resistance of 300mΩ and zero leakage current, contributing to energy efficiency and safety. Compliance with EN 50110-1 and flammability rating UL 94 V-0 confirms adherence to international safety standards.

This component supports EMI noise reduction in industrial electronics and household appliance power supplies. Designed for use in telecommunications equipment to maintain signal integrity. Enables efficient switching power supply noise filtering, improving system reliability.

Ensures compliance with electromagnetic compatibility standards and regulatory requirements. Facilitates easy integration with chassis mount and screw termination configuration.

This Wurth Elektronik EMC filter is manufactured in China and is provided as a new product. Suitable for engineers and procurement professionals looking for high-quality EMI filtering components.
