Solartron Metrology Linear Variable Differential Transformer LVDT Sensor 80°C Maximum Operating Temperature 922938

Solartron Metrology 922938 Linear Variable Differential Transformer (LVDT) sensor is a high precision displacement sensor used extensively in motion control and automation systems. This miniature, DC energized device integrates a built-in electronic oscillator and demodulator, providing a DC output proportional to the position of its core.

The sensor consists of a movable nickel iron core and three coils: one for energisation and two pick-up coils. When driven by a sine wave, it produces an output amplitude and phase directly proportional to core displacement relative to the pick-up coils. A phase sensitive detector is necessary to demodulate the output signal.

Its key advantages include no wear issues common with potentiometers, infinite resolution, high accuracy, and linearity without friction being introduced into the measured system. The device is available in measuring ranges from ±1mm to ±50mm, making it adaptable to diverse industrial and laboratory needs.

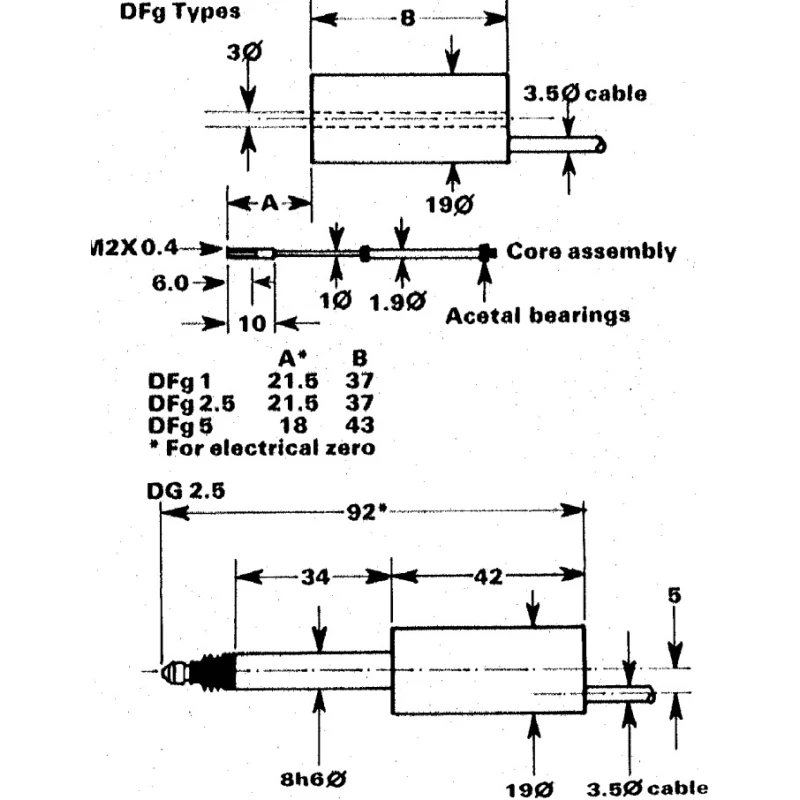

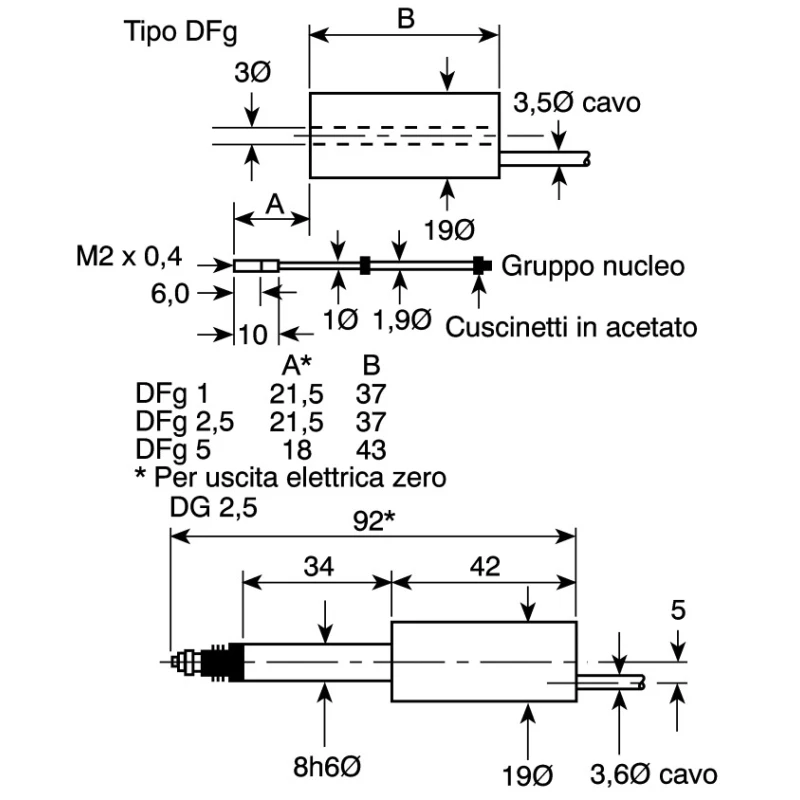

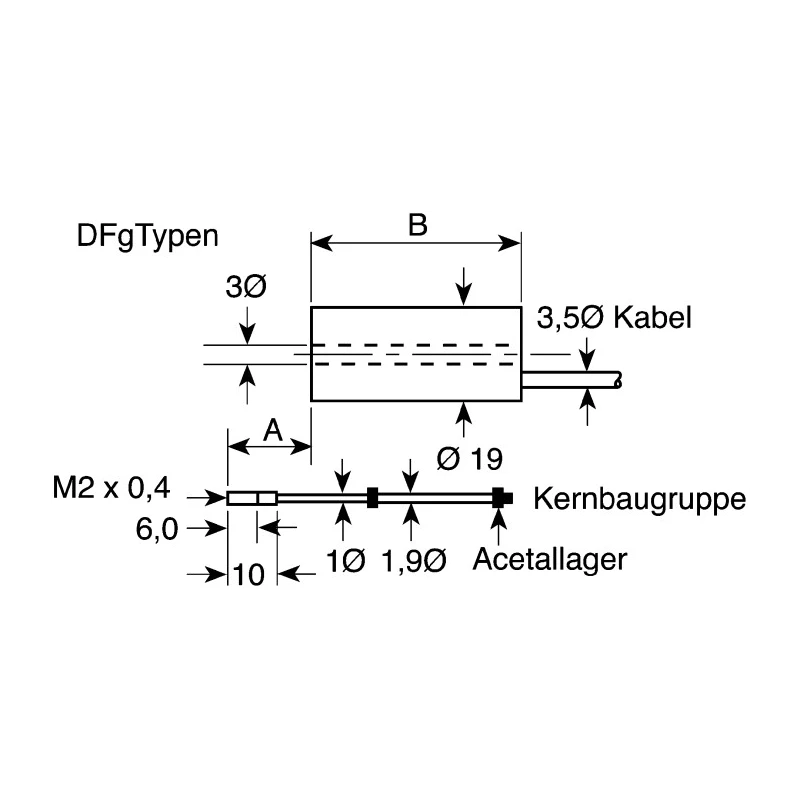

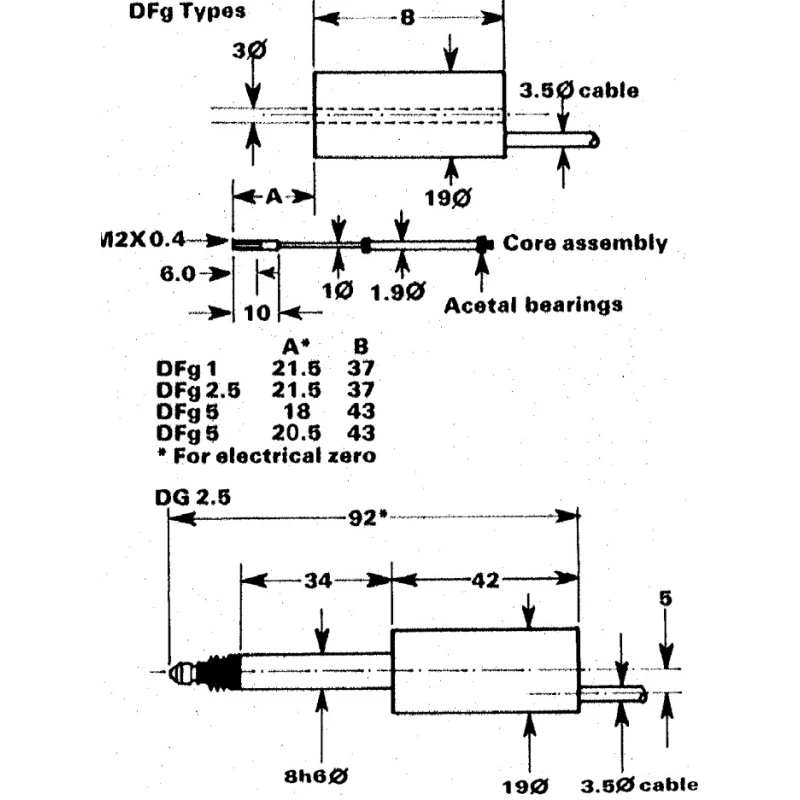

The DFg series feature separate coil/electronic assemblies with a free core fitted with a polyacetal homopolymer bearing to ease guiding requirements, while the DG2.5 model employs a non-rotating spring-loaded armature running on precision linear ball bearings. These design choices enhance the sensor's mechanical reliability and precision.

Operates at a maximum temperature of 80°C for stable performance across a variety of environments. Compact form factor suitable for integration into tight spaces in automated and control gear setups. No friction or wear, ensuring long operational life and consistent measurements.

Ideal for industrial measurement, laboratory instrumentation, HVAC control, manufacturing, and water treatment applications. Manufactured in the United Kingdom with stringent quality controls.

This Solartron Metrology LVDT sensor is a trusted component for those requiring precise linear displacement feedback and measurement in complex systems. Browse the Electronics & Electricals category at EnvMart for more quality sensors and control gear.
