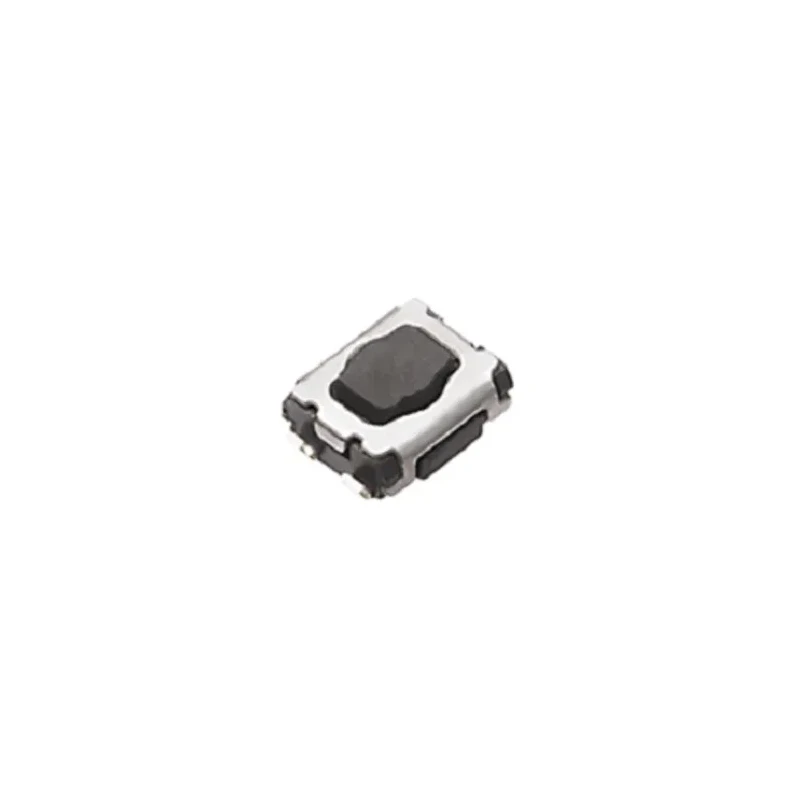

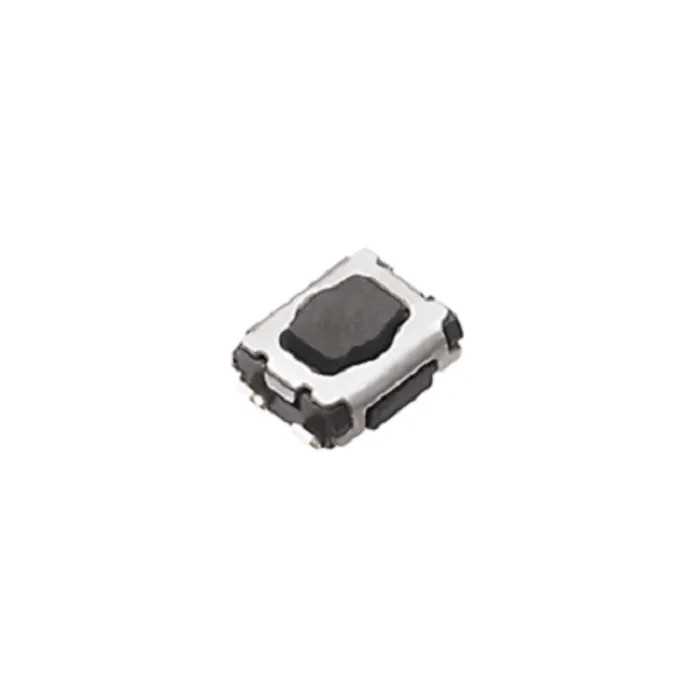

Panasonic White Tactile Switch Push Plate 2.2 mm SPST 20mA 15 V dc Surface Mount EVPAAM02W
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 1.7mm |
| Model | EVPAAM02W |
| Mount Type | Surface |
| Series | EVPA |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Terminal type | J Bend |
| Switch Operation | Push-On |
| Actuator Colour | White |
| Actuator Length | 2.2mm |
| Contact DC Voltage | 15V dc |
| Actuator Style | Push Plate |
| Actuator Orientation | Straight |
| Switch Contact Current | 20mA |
| Operating Force | 3.5N |
| Mechanical Life | 500000Cycles |
Key Features
- White push plate actuator for precise tactile response.
- SPST contact configuration suitable for single pole switching.
- Maximum operating temperature of 85°C ensures durability.
- Operating force of 3.5N for reliable switch activation.
- Compact size with height of 1.7 mm ideal for portable electronics.
- Mechanical life rated for 500,000 cycles for long-term use.
- J Bend terminal type for easy surface mounting installation.
- Actuator style is straight push plate enabling accurate control.
Product Description
Panasonic EVPAAM02W is a white tactile switch push plate designed for surface mounting, featuring an actuator length of 2.2 mm and SPST contact configuration. It is rated for 20mA contact current at 15 V dc, making it suitable for low-voltage electronic switching applications.
This tactile switch has a compact height of 1.7 mm and requires an operating force of 3.5N, providing a precise and reliable push-on operation. The J Bend terminal and surface mount design enable easy integration on electronic equipment such as portable devices and keyless entry systems.
Constructed for durability, the switch supports a mechanical life of up to 500,000 actuation cycles withstanding temperatures up to 85°C, ensuring consistent performance in industrial and consumer electronics.
The push plate actuator is white, straight in orientation, and designed for snap-action type switching for efficient tactile feedback. This switch conforms to no specific standards or approvals but is built by Panasonic in Japan, signifying premium manufacturing quality.
White push plate actuator for reliable tactile feedback. SPST contact configuration ideal for simple switching circuits. Operates safely up to 15 V dc and 20mA current. Compact and low-profile design with 1.7 mm height. High mechanical life of 500,000 cycles for durability.
Surface mount design with J Bend terminals for simple installation. Operating force of 3.5N ensures firm switch actuation. Suitable for portable electronics and keyless entry devices. Made in Japan by Panasonic.
This tactile switch is commonly used in industrial, electronic manufacturing, consumer electronics, and automation systems requiring small, reliable push button controls. Its compact size and high mechanical endurance make it ideal for demanding applications where reliable tactile response is critical.
Explore our extensive range of Tactile Switches and other electronic components on EnvMart for your engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this tactile switch is 85°C, ensuring it can withstand high temperatures during operation.
This model has a mechanical life rating of up to 500,000 cycles, providing long-term reliability for repeated use.
It features an SPST (Single Pole, Single Throw) contact configuration, suitable for simple switching applications.
The height of this tactile switch is 1.7 mm, making it compact and suitable for portable electronics.
The operating force required to activate this switch is 3.5N, allowing for reliable switch activation.
This switch is rated for a contact current of 20mA, making it suitable for low-voltage applications.
The actuator style is a straight push plate, which enables accurate control and tactile feedback during operation.
It features J Bend terminals, which facilitate easy surface mounting installation.
The actuator length of this model is 2.2 mm, contributing to its compact design.
This tactile switch is manufactured in Japan, indicating a level of quality associated with Japanese production standards.
It is commonly used in industrial, electronic manufacturing, consumer electronics, and automation systems that require reliable push button controls.
The switch operates safely at a contact DC voltage of 15V, making it appropriate for low-voltage electronic applications.
