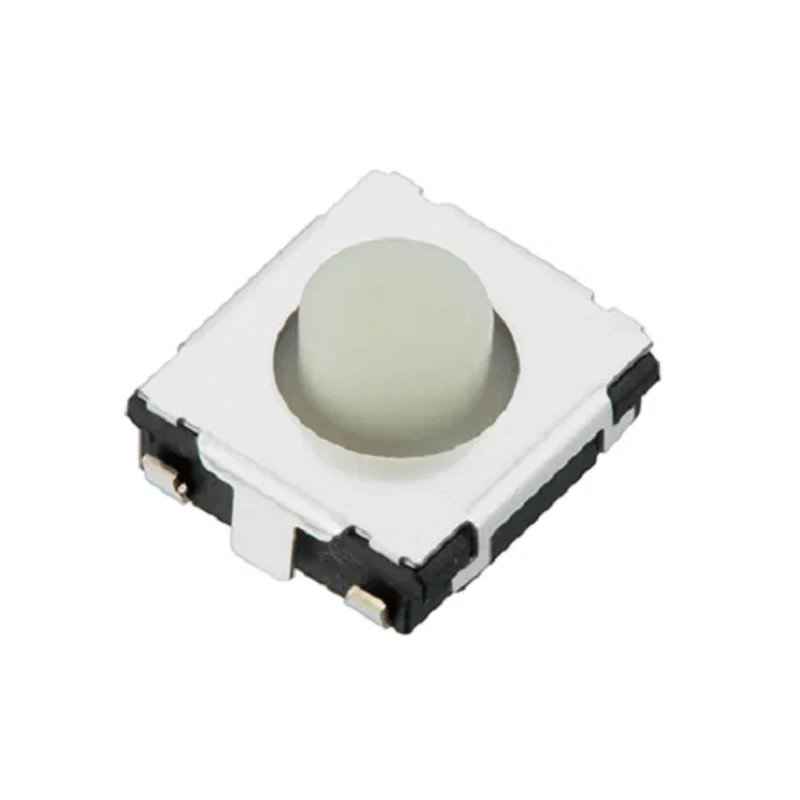

Panasonic White Tactile Switch Push Plate 3.8 mm SPST 20mA Surface EVQQ2P02W
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Panasonic |
| Model | EVQQ2P02W |
| Mount Type | Surface |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Terminal type | J Bend |
| Switch Operation | Push-On |
| Actuator Colour | White |
| Actuator Length | 3.8mm |
| Actuator Style | Push Plate |
| Actuator Orientation | Straight |
| Switch Contact Current | 20mA |
| Operating Force | 1.6N |
| Mechanical Life | 1000000Cycles |
| Panasonic White Tactile Switch Push Plate, 3.8 mm, SPST 20mA, SurfaceBrand | Panasonic |
Key Features
- Designed for precise push-on actuation with 1.6N operating force.
- Electrical rating supports 20mA contact current at low voltage.
- Durable mechanical life of 1,000,000 cycles ensures long-lasting performance.
- Compact dimensions suitable for electronic equipment with 6.5 mm x 6.0 mm footprint.
- Operates efficiently within temperature range up to 70°C for versatile applications.
- Terminal type J Bend facilitates secure surface mounting.
- Non-illuminated actuator with straight orientation for simple functional integration.
Product Description
Panasonic EVQQ2P02W White Tactile Switch Push Plate with 3.8 mm actuator length is a surface mount push-on switch designed for reliable SPST electrical operation supporting a 20mA contact current. It features a white push plate actuator with a straight orientation and is built for long-term durability with a mechanical life rating of 1,000,000 cycles.
The Tactile Switch is ideal for integration into electronic devices such as PC mice, car audio systems, and other precise control applications requiring compact dimension components. This model has a compact external size of 6.5 mm by 6.0 mm and a height of 1.8 mm, designed to fit surface mount requirements with J Bend terminal type.
The switch supports operation up to 70°C and requires a moderate operating force of 1.6N, ensuring consistent actuation without damage. It is not illuminated and uses a snap action/push-on mechanism suitable for environments where tactile feedback and reliable switching are critical.
Applications include industrial automation, electronic equipment controls, and various consumer electronics where small form factor switches are required. This product is manufactured in Malaysia, meeting durable and reliable standards for high-cycle switch operations.
Precise control with push plate actuator for user interfaces. Robust mechanical life suitable for industrial and consumer applications. Compact and surface mount design for easy PCB integration. Reliable SPST contact configuration for simple on-off switching.
Suitable temperature rating for moderate heat environments. Explore the extensive range of Panasonic switches available on EnvMart for industrial electronics, automation systems, and electronic manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 70°C, allowing it to function effectively in moderate heat environments.
This tactile switch has a mechanical life rating of 1,000,000 cycles, ensuring long-lasting performance in applications.
It features a J Bend terminal type, which facilitates secure surface mounting.
The contact configuration of this model is SPST (Single Pole, Single Throw), suitable for simple on-off switching applications.
The actuator length of the push plate is 3.8 mm, designed for precise push-on actuation.
The operating force required for actuation is 1.6N, ensuring consistent performance during use.
This model has a footprint of 6.5 mm x 6.0 mm and a height of 1.8 mm, making it compact for electronic equipment integration.
No, the actuator of this switch is not illuminated, featuring a straight orientation for functional integration.
This tactile switch is suitable for applications in industrial automation, electronic equipment controls, and various consumer electronics.
This product is manufactured in Malaysia, adhering to standards for durable and reliable switch operations.
This model uses a push-on switch operation, designed for reliable SPST electrical operation.
The actuator style of this switch is a push plate, designed for precise control in user interfaces.
