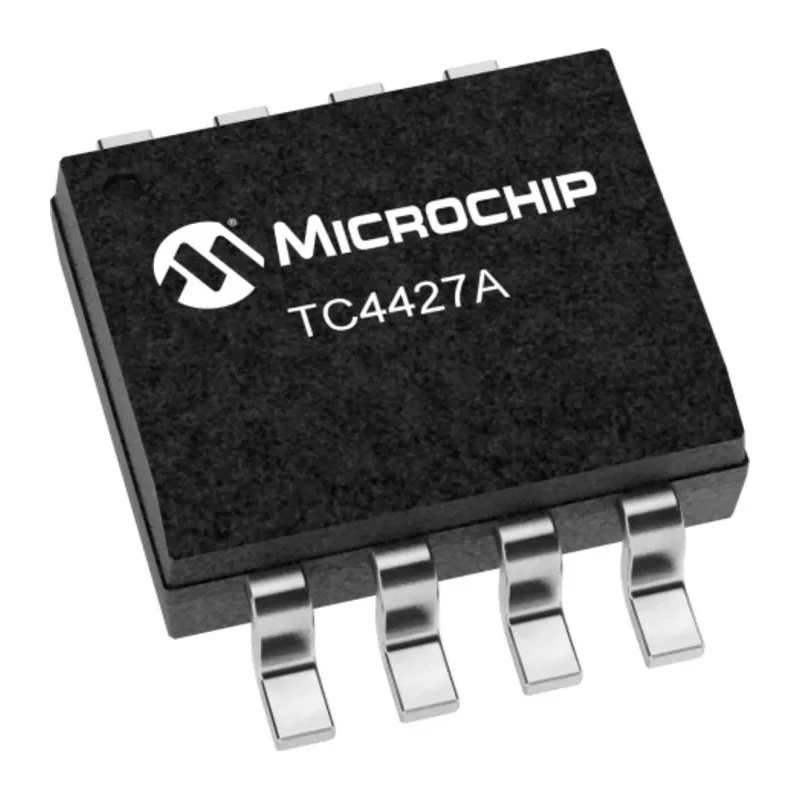

Microchip MOSFET Gate Driver 1.5 A 8-Pin SOIC, 4.5 V TC4427ACOA713

Microchip TC4427ACOA713 is a dual high-speed MOSFET gate driver designed for power management applications with a peak output current of 1.5 A. Packaged in a standard 8-pin SOIC form factor operating at a fixed 4.5 V supply voltage, this driver provides matched rise and fall times with a low 30 ns fall time to ensure rapid switching and improved efficiency in MOSFET-driven circuits.

These devices incorporate matched leading and falling edge propagation delays to synchronize transistor switching. The TC4427ACOA713 family is highly latch-up resistant within its voltage and power ratings, maintaining operational stability in industrial environments. Protection features include tolerance for noise spikes on the ground pin up to 5 V and the ability to withstand reverse currents up to 0.5 A without functional damage.

Each terminal offers electrostatic discharge protection up to 2 kV, mitigating damage risks during handling. This MOSFET driver can efficiently handle large capacitive loads, charging or discharging a 1000 pF gate capacitance in under 30 ns, making it ideal for fast switching power supplies, motor drives, and other power electronics applications.

The device's low output impedance during both ON and OFF states guarantees that MOSFETs will not experience unintended state changes, even under transient voltage conditions. Its rugged design ensures stable operation amid electrical noise, making it suitable for use in industrial controls, power inverters, and other demanding electrical environments.

High peak output current of 1.5 A ensures powerful MOSFET driving capability. Standard 8-pin SOIC package supports compact and reliable PCB mounting. Operating supply voltage fixed at 4.5 V for stable performance. Matched rise and fall times with 30 ns fall time for fast switching.

Latches protected and able to handle up to 0.5 A reverse current without damage. Electrostatic discharge protection up to 2 kV protects against ESD events. Designed to charge/discharge 1000 pF gate capacitances in less than 30 ns.

Input pins withstand negative voltage spikes up to 5 V without logic upset. Suitable for industrial power management, motor drive, and power supply applications. Robust against noise spikes and ensures reliable, efficient switching operation.

This Microchip MOSFET gate driver is engineered for reliable industrial electronic components requiring precise and high-speed switching. Available in standard SOIC packaging to facilitate integration into a wide range of semiconductor and power IC applications.
