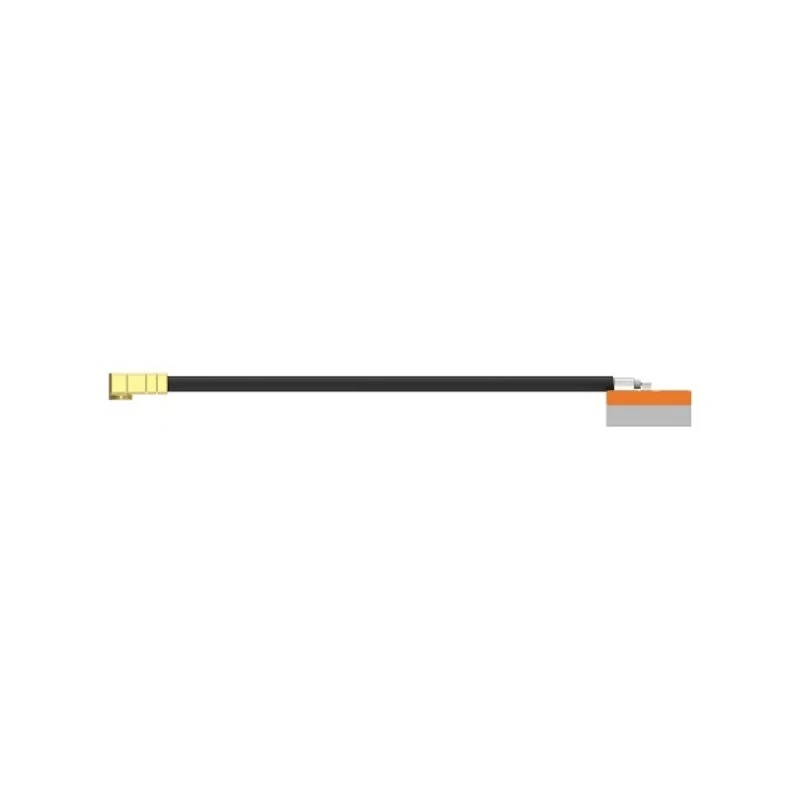

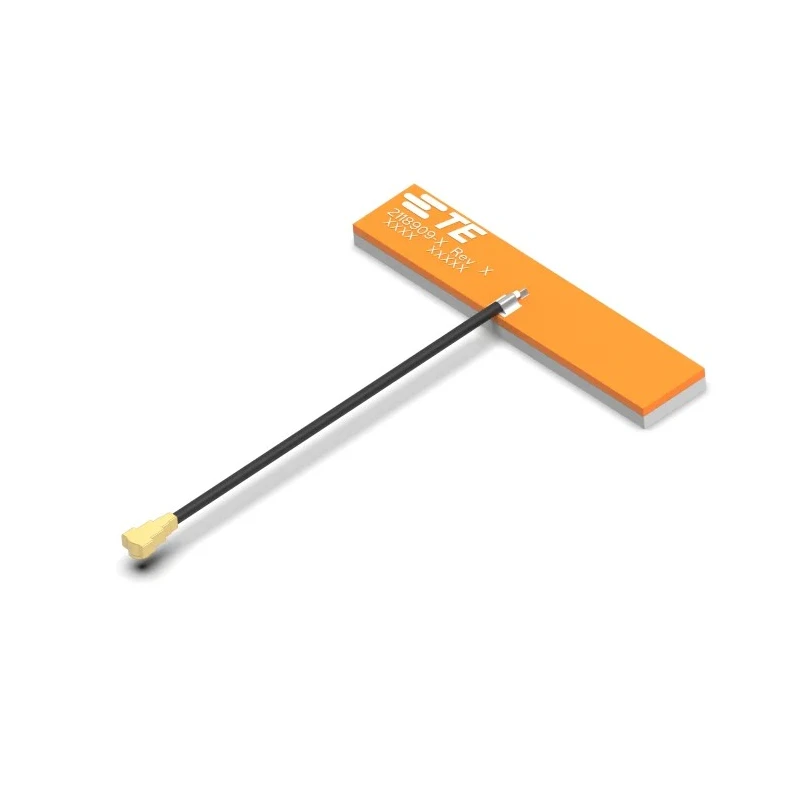

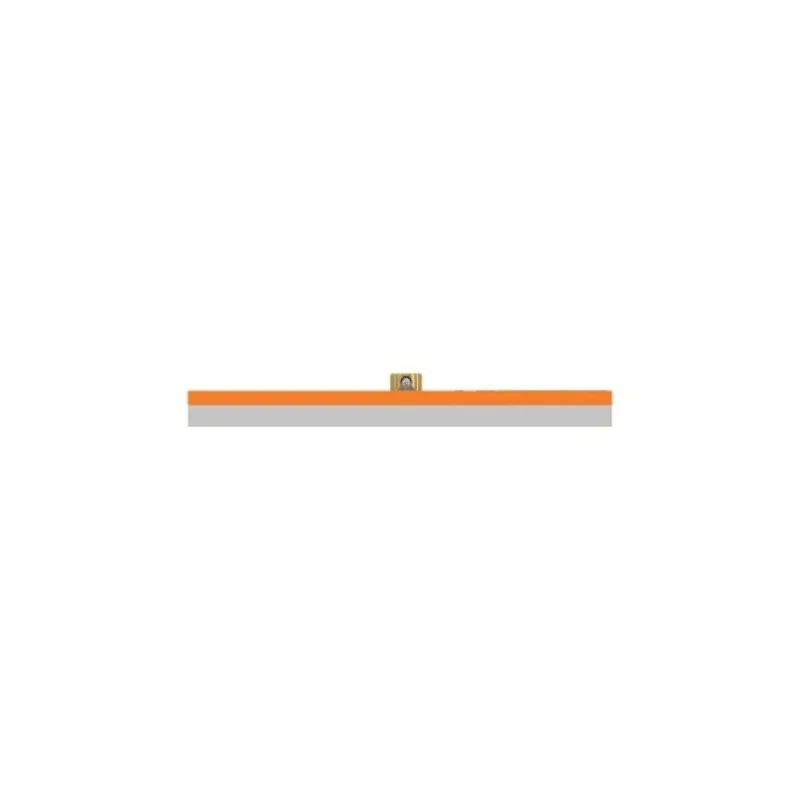

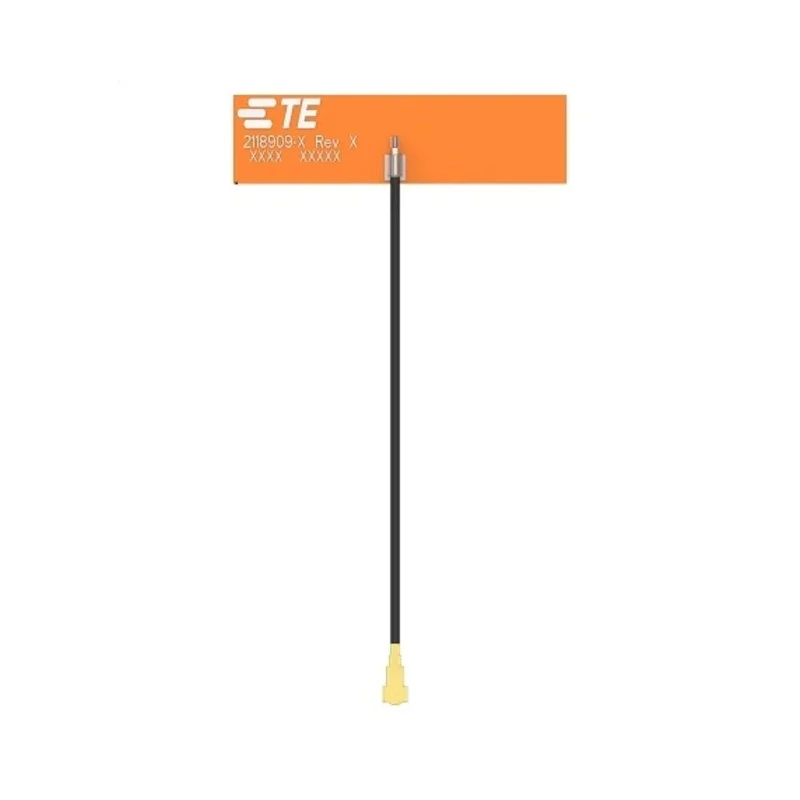

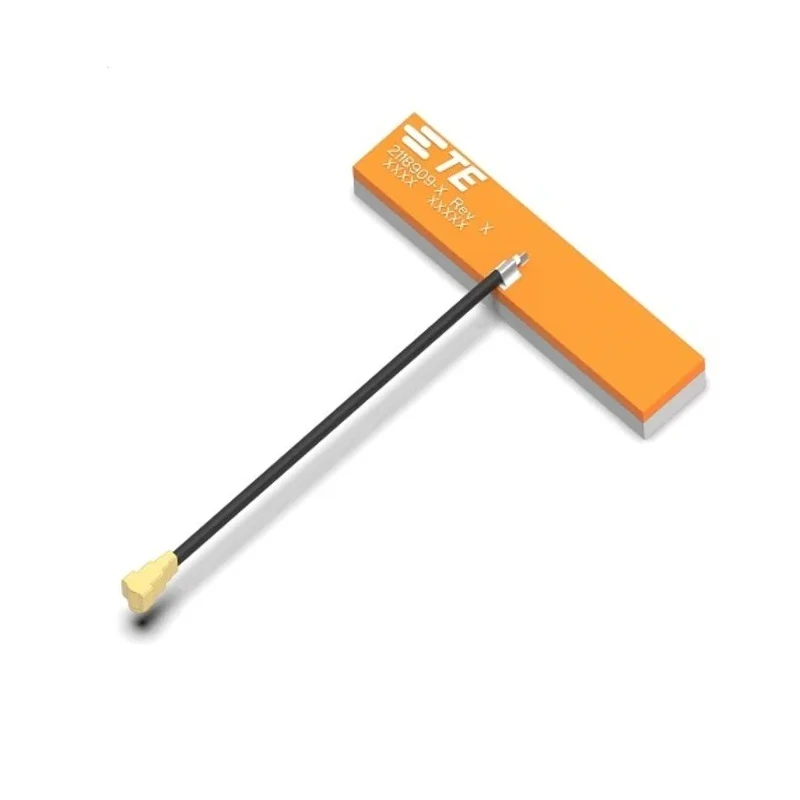

TE Connectivity PCB WiFi Antenna with MHF4L Connector, WiFi, Bluetooth (BLE), ZigBee MHF4L
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | MHF4L |
| Cable Length | 200mm |
| Connector Type | MHF4L |
| Series | 2118909 |
| Gain | 4.1dBi |
| Standards/Approvals | REACH, RoHS, MSL, HTSUS, ECCN |
| Maximum Frequency | 6GHz |
| Connector Gender | Male |
| Minimum Frequency | 2400MHz |
| Internal/External | Internal |
| RF Protocols | WiFi, Bluetooth (BLE), ZigBee |
| Antenna Physical Form | PCB |
| Antenna Mount Type | Adhesive |
| Directivity | Omni-Directional |
| Antenna Internal Construction | Dipole |
| Number of Bands | 3 |
Key Features
- Designed for frequencies ranging from 2400 MHz to 6 GHz covering WiFi 6 and 6E bands.
- Features a compact PCB form factor with adhesive backing for easy installation.
- Equipped with a male MHF4L connector and 200mm cable length for flexible connections.
- Omni-directional dipole antenna providing 4.1 dBi gain with a ground-plane independent design.
- Conforms to standards including REACH, RoHS, MSL, HTSUS, and ECCN for reliable quality.
- Supports triple band operation enabling versatile wireless communication within devices.
- Manufactured in China with a model and MPN identification of 1-2118909-8.
Product Description
TE Connectivity MHF4L PCB WiFi Antenna with MHF4L Connector is an internal PCB-mounted antenna designed to support WiFi, Bluetooth (BLE), and ZigBee wireless protocols. The antenna's triple band operation spans from 2400 MHz up to 6 GHz frequency, including cutting-edge WiFi 6 and WiFi 6E support on the 6 GHz band. This provides enhanced network performance and compatibility with the latest wireless standards.
The antenna is constructed as a dipole type on a printed circuit board assembly (PCBA) form factor, featuring an adhesive backing that simplifies device integration by eliminating the need for complex mounting hardware. Its omni-directional radiation pattern enables reliable wireless signal coverage regardless of antenna orientation.
Connection is facilitated via a compact male MHF4L connector and a 200 mm cable, designed for secure and flexible RF interface within devices. The 4.1 dBi antenna gain allows robust signal strength for various industrial, commercial, and consumer electronics applications.
TE Connectivity's antenna conforms to international standards including REACH, RoHS, MSL, HTSUS, and ECCN, ensuring environmental compliance and quality assurance. Produced in China under model 1-2118909-8, it is suitable for use in embedded WLAN devices requiring miniaturized, high-performance antenna solutions.
Supports triple band wireless protocols: WiFi, Bluetooth (BLE), and ZigBee. PCB adhesive mounted internal antenna with dipole construction. Operating frequency range: 2400 MHz to 6 GHz including WiFi 6/6E bands. Omni-directional directivity with 4.1 dBi gain for reliable coverage.
Equipped with male MHF4L connector and 200 mm cable length. Industry standard compliance: REACH, RoHS, MSL, HTSUS, ECCN. Manufactured in China by TE Connectivity, model number 1-2118909-8.
This PCB WiFi antenna is ideal for industrial applications including IoT devices, router modules, wireless sensors, medical monitoring equipment, and consumer electronics where compact, high-efficiency antenna performance is required. Its adhesive backing enables easy, secure mounting during manufacturing and assembly, thereby improving production efficiency.
Explore more advanced antenna solutions and components within the Electronics Components category on EnvMart for reliable wireless connectivity solutions.
Explore more products in our WiFi Antennas category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The antenna operates within a frequency range of 2400 MHz to 6 GHz, supporting WiFi 6 and 6E bands.
This model provides a gain of 4.1 dBi, which contributes to its reliable signal strength.
It is equipped with a male MHF4L connector for secure connections.
The antenna comes with a cable length of 200 mm, providing flexibility in installation.
This antenna is designed as a PCB (printed circuit board) form factor, allowing for compact integration.
It features an adhesive backing for easy and secure mounting during installation.
The antenna has an omni-directional directivity, which allows for reliable signal coverage regardless of its orientation.
It conforms to several standards including REACH, RoHS, MSL, HTSUS, and ECCN, ensuring quality and environmental compliance.
This model is manufactured in China.
The antenna features a dipole internal construction, which is typical for this type of device.
