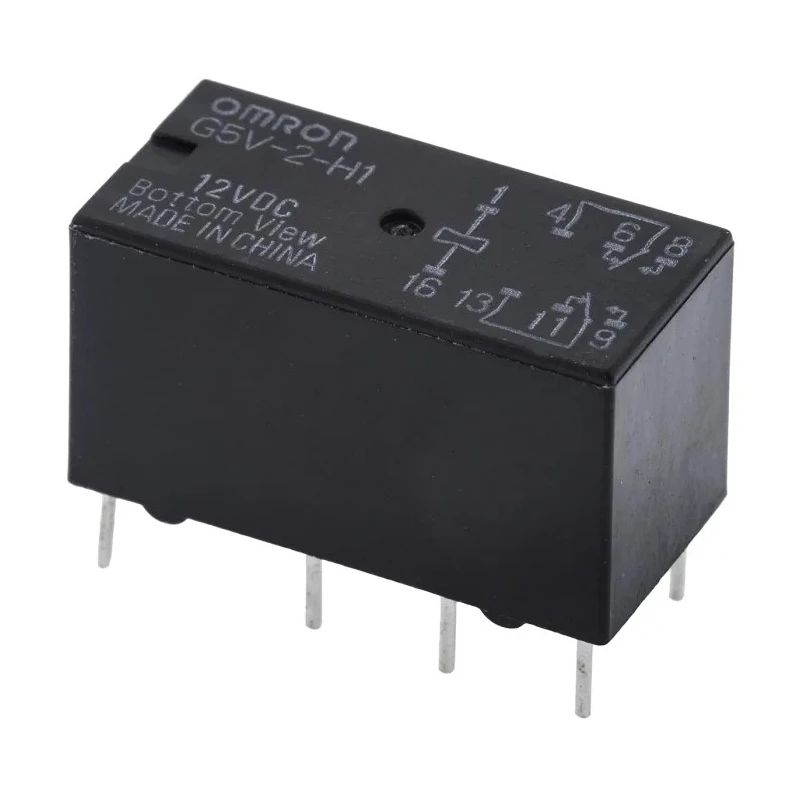

Omron Signal Relay, PCB Mount, DPDT Contact, 12V DC Coil Voltage, 1A Switching Current, Silver Contact Material G5V-2-H1 DC12
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11.5mm |
| Length | 20.5mm |
| Model | G5V-2-H1 DC12 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver |
| Series | Card SN |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 1A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 960Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 150mW |
| TE Connectivity PCB Signal Relay, 12V dc Coil, 2A, DPDTBrand | TE Connectivity |
| Fujitsu Surface Signal Relay, 9V Coil, 1A, DPDTBrand | Fujitsu |
Key Features
- Miniature PCB relay designed for high sensitivity signal circuits.
- Features a 12V DC coil voltage with coil power of 150mW.
- Double Pole Double Throw (DPDT) contact configuration enabling versatile switching.
- Switching capability of 1A current at up to 125V AC or DC voltage.
- Silver contact material ensures reliable conductivity and durability.
- Fully sealed construction complies with FCC Part 68 requirements.
- Operating temperature range from -25°C up to 70°C for diverse environments.

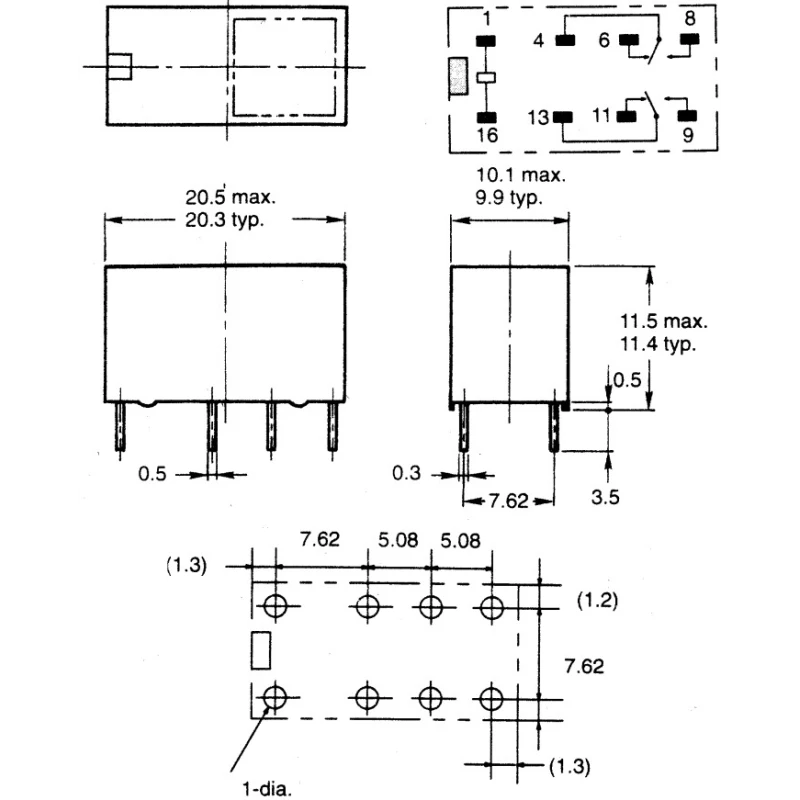

- Compact size with dimensions 20.5mm length, 11.5mm height, and 10mm width.
Product Description
Omron G5V-2-H1 DC12 Signal Relay is a high-sensitivity miniature relay designed specifically for PCB mounting in signal conditioning applications. This relay is equipped with a 12V DC coil rated for 150mW power consumption, making it efficient for low power control circuits. Its DPDT (Double Pole Double Throw) contact configuration supports switching currents up to 1A and voltages up to 125V AC or DC, offering versatile usage in various electrical and electronic devices.
The relay body is fully sealed, ensuring protection against environmental contaminants and meeting FCC Part 68 requirements for communication devices. Silver contact material enhances conductivity and reliability, making it suitable for sensitive signal switching roles.
With an operating temperature range of -25°C to 70°C, the G5V-2-H1 DC12 relay can perform reliably within harsh industrial conditions. Its compact design with dimensions of 20.5mm length, 11.5mm height, and 10mm width allows for efficient use of PCB space, while solder-type terminals facilitate secure mounting.
This relay complies with RoHS directives, promoting environmentally sound manufacturing and disposal practices. The product is made in China and is ideal for use in automation, control systems, telecommunications, instrumentation, and other industrial electrical applications.
Miniature PCB relay with ultra-high sensitivity coil suitable for signal circuits. 12V DC coil voltage with low power consumption of 150mW. DPDT contact configuration enables double pole double throw switching. Switching current of 1A at maximum 125V AC/DC voltage.
Silver contact material for enhanced electrical conductivity. Fully sealed construction meeting FCC Part 68 requirements. Wide operating temperature range from -25°C to 70°C. Compact dimensions (20.5×10×11.5 mm) optimize PCB space usage.
Solder terminal type for secure and permanent PCB mounting. RoHS compliant for environmental safety. Discover a wide range of high-performance relays and PCB components on EnvMart for your industrial, electrical, and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
It has a switching current capacity of 1A.
The dimensions of this model are 20.5mm in length, 11.5mm in height, and 10mm in width.
This relay features a Double Pole Double Throw (DPDT) contact configuration.
The operating temperature range is from -25°C to 70°C.
It uses solder-type terminals for secure mounting on PCBs.
The coil power consumption is 150mW.
The contacts are made of silver, which enhances conductivity.
Yes, it complies with RoHS directives for environmental safety.
The maximum switching voltage is 125V for both AC and DC.
It is suitable for automation, control systems, telecommunications, and instrumentation.
This model is manufactured in China.
