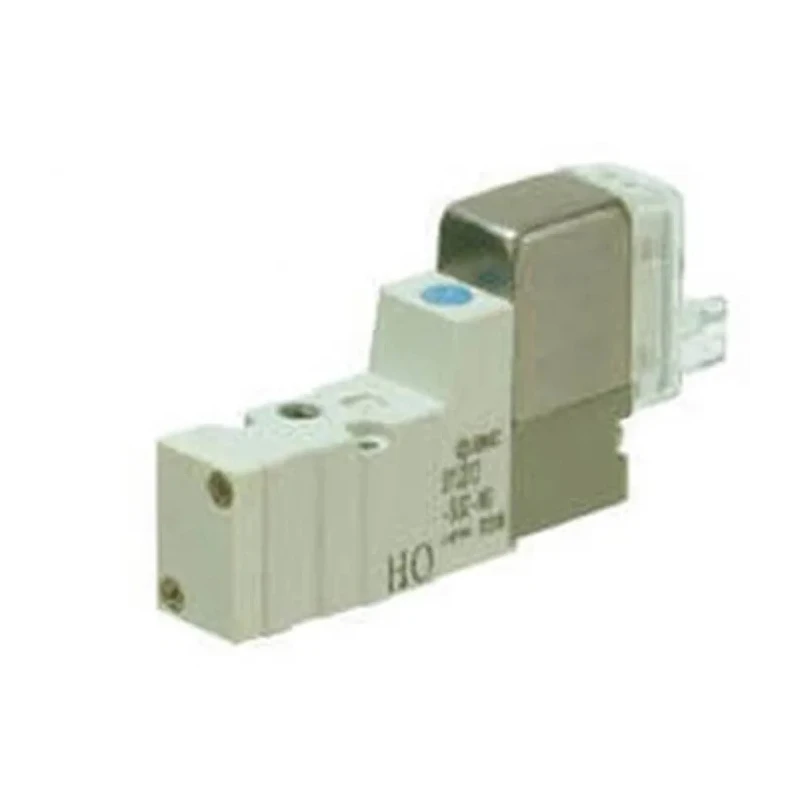

SMC Pneumatic Solenoid Valve 3 Port Die Cast Zinc Body, 24V, 7 bar Max Operating Pressure SY300

SMC SYJ314M-5LOU-M5-Q Pneumatic Solenoid Valve from the SY300 Series is designed for precise air control in industrial pneumatic systems. Featuring a solid die cast zinc body and hydrogenated nitrile rubber seals, this valve offers long service life and resistance to wear and chemicals. Its 3-port construction allows efficient control of airflow with an operating voltage of 24 V DC and minimal power consumption of 0.35W, reducing thermal heat generation and supporting direct PLC output relay control for energy-efficient operation.

This valve supports a maximum operating pressure of 7 bar and pilot pressures between 0.15 MPa and 0.7 MPa, with a maximum flow rate of 92 liters per minute, making it highly suitable for various fluid power and industrial automation tasks. It operates reliably in a temperature range from -10°C up to 50°C, ensuring robust performance in typical industrial environments. The base mounting method facilitates easy integration into pneumatic assemblies and control panels.

The SYJ314M-5LOU-M5-Q pneumatic solenoid valve operates with two positions via a single solenoid type actuator, providing accurate and timely valve switching essential for automation and manufacturing processes. This model is RoHS compliant, ensuring adherence to environmental safety standards and suitability in regulated industrial applications.

The valve features a compact 3 port design suitable for air flow control. Operating voltage is 24 volts DC with low power consumption of 0.35 watts. Maximum operating pressure is rated at 7 bar with pilot pressure range from 0.15 to 0.7 MPa.

The valve uses hydrogenated nitrile rubber seals for durability and chemical resistance. Maximum flow rate reaches up to 92 liters per minute suitable for pneumatic systems. It operates reliably within a temperature range from -10°C to 50°C ambient and fluid temperature.

Mounting type is base mount for secure installation in machinery or control panels. Designed for two positions with a single solenoid actuator, enabling precise control. Manufactured in Japan with compliance to RoHS standards for environmental safety.

This solenoid valve suits industrial, manufacturing, and pneumatic automation applications.

This Pneumatic Solenoid Valve is widely used in industrial automation, fluid power systems, manufacturing equipment, and HVAC control applications where precise airflow control is required. The compact design and energy-efficient operation allow integration into PLC-controlled and automated production lines, improving reliability and lowering operational costs.
