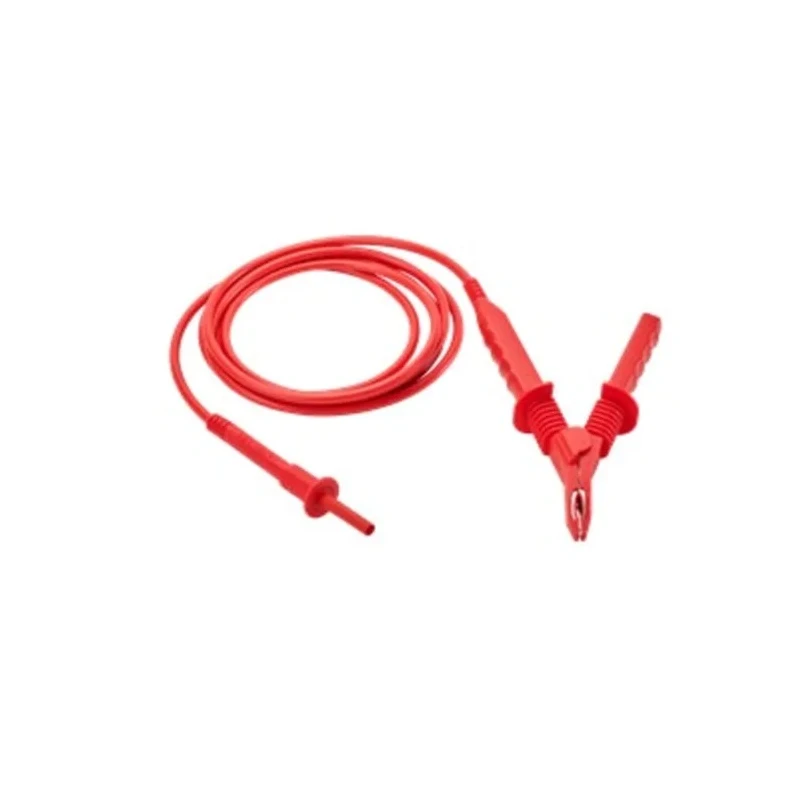

Chauvin Arnoux Insulation Tester HV Test Lead Set for CA 6545 CA 6549 CA 6547 CA 6505 P01295511

Chauvin Arnoux P01295511 insulation tester HV test lead set is an essential accessory designed to work with Chauvin Arnoux insulation testers model CA 6545, CA 6549, CA 6547, and CA 6505. These leads provide reliable and safe connections for accurate insulation measurement in industrial, electrical maintenance, and testing environments.

The test leads are rated to handle up to 10 amperes of current, making them suitable for high-voltage insulation testing applications. Each lead includes piggyback jacks with a current limitation of 15 milliamps to protect the measuring instruments and users. The black lead's piggyback jack connects to the internal shielding braid, while the blue lead's piggyback jack is connected directly to the conductor core, supplied in optional lengths of 0.3 or 0.5 meters.

The crocodile clips on these leads offer a broad clamping capacity accommodating diameters from 1 mm up to 34 mm or a 12 mm bar, facilitating versatile attachment options on various testing points. The lead set is colored red for clear identification during use.

Engineered for robust performance across a wide range of operating conditions, the leads function reliably in temperatures from -10°C up to +50°C. The double insulation construction ensures user safety and conforming to CE standards, making these leads compliant and reliable for electrical test and measurement tasks.

This lead set is manufactured in China and serves as a trusted accessory for insulation testing in industrial plants, electrical installations, and maintenance workshops. It forms part of the broader range of Chauvin Arnoux Insulation Tester Accessories designed to uphold measurement accuracy and safety standards.

The leads are rated for a maximum current of 10 amps. Piggyback jacks on leads are limited to 15 milliamps to ensure safety. Black lead piggyback jack connects to the internal braid shielding. Blue lead piggyback jack connects to the core and is available in 0.3m or 0.5m lengths.

The crocodile clips clamp onto diameters from 1 to 34 mm or a 12 mm bar. The lead color is red for easy identification. Operating temperature ranges from minus 10 to plus 50 degrees Celsius. Constructed with double insulation for enhanced safety.
