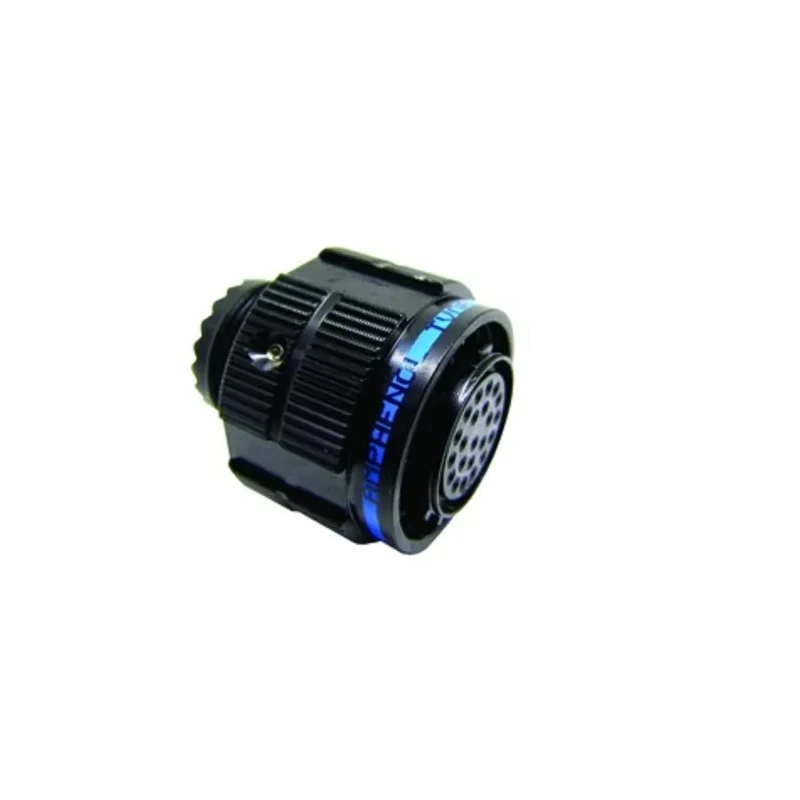

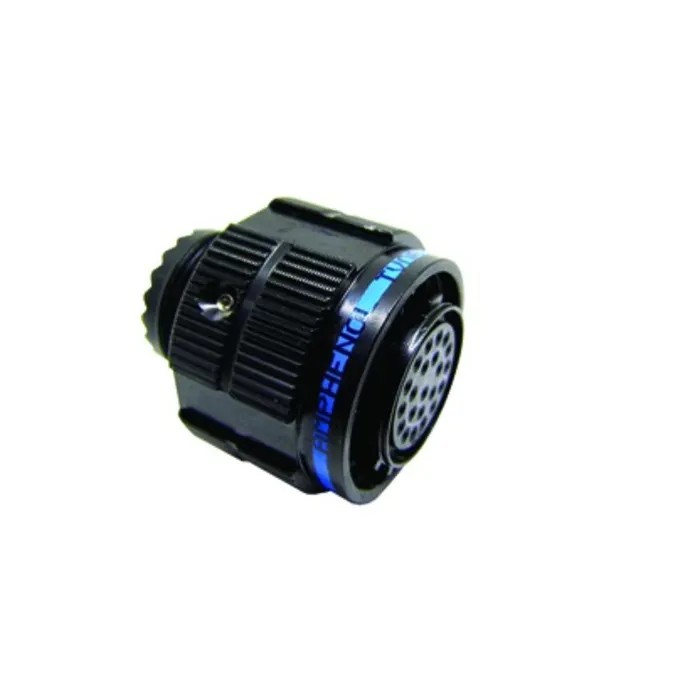

Amphenol Limited Circular Connector 3 Contacts Female Panel Mount, MIL-DTL-38999 Series III, Straight Shell D38999/24FA98SN
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 850V |
| Brand | Amphenol Limited |
| Colour | Silver |
| Orientation | Straight |
| Current | 7.5A |
| Model | D38999/24FA98SN |
| Mount Type | Panel |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | D38999 III |
| Termination Type | Crimp |
| Maximum Operating Temperature | 200°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shell Size | A09 |
| Military Standard | MIL-DTL-38999 Series III |
| Mating Type | Self-Locking |
| Connector Size | Subminiature |
| Shell Plating | Electroless Nickel |
Key Features
- Designed for high-performance general and severe environment applications.
- Features straight orientation and self-locking mating type for secure connections.
- Shell size A09 with electroless nickel plating for corrosion resistance.
- Contact material is copper alloy with gold plating for enhanced conductivity.
- Rated for 850V voltage and 7.5A current carrying capacity.
- Suitable for military, aeronautical, and advanced industrial use.
- Operating temperature range from -65°C to 200°C.
- Crimp termination type with panel mount installation.
Product Description
Amphenol Limited D38999/24FA98SN is a high-reliability circular connector featuring 3 female contacts, designed to meet MIL-DTL-38999 Series III military specifications. This connector is shell size A09, straight orientation, and intended for panel mount applications, ensuring robust and secure connections in demanding environments.
The shell is made from aluminium with an electroless nickel plating that offers superior corrosion and wear resistance, contributing to the connector's longevity in harsh conditions. Copper alloy contacts are gold plated, which enhances electrical conductivity and ensures signal integrity.
Rated for 850V and 7.5A current, this connector supports operation within a temperature range from -65°C up to 200°C, making it suitable for a wide variety of industrial, military, aeronautical, and advanced manufacturing applications.
The crimp termination type and self-locking mating mechanism provide ease of installation and reliable secure mating to prevent accidental disconnection. The silver shell color and strain relief feature add to the connector’s durability and handling safety.
These connectors are commonly applied in military environments, aerospace systems, industrial automation, and any other settings requiring rugged and reliable circular connectors compliant with MIL standards.
Designed for robust performance in industrial, military, and aerospace environments. 3 female contacts provide secure electrical connections. Electroless nickel plated aluminium shell for high corrosion resistance. Gold-plated copper alloy contacts ensure excellent conductivity.
Wide operating temperature range from -65°C to 200°C. Self-locking mechanism prevents accidental disconnection. Panel mount installation facilitates integration into systems. Crimp termination for reliable contact attachment.
Meets MIL-DTL-38999 Series III standards for durability and reliability. Available for purchase on EnvMart, browse our catalog for more quality Circular Connectors from Amphenol Limited.
