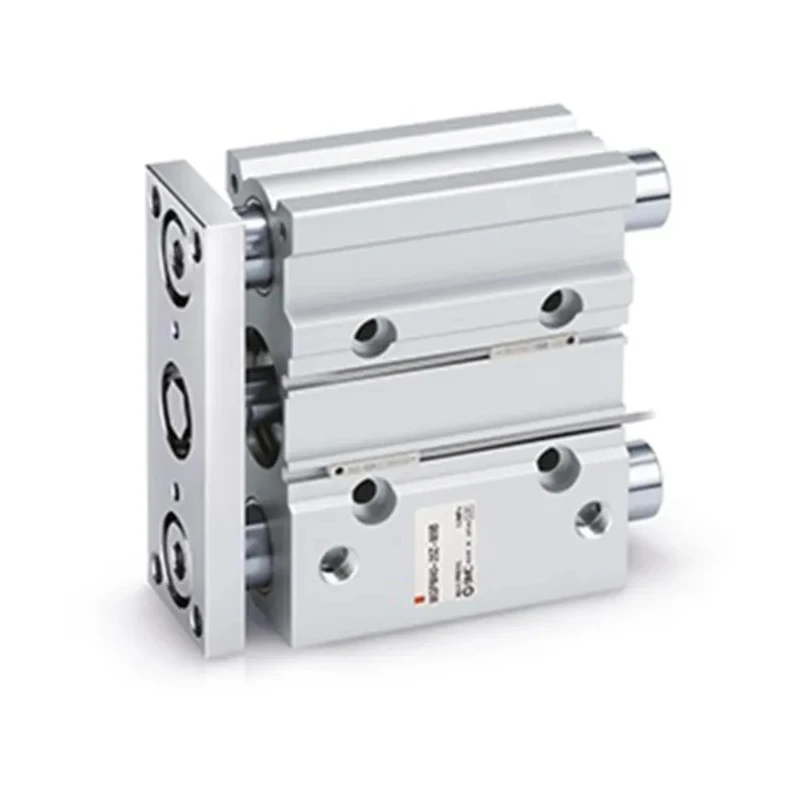

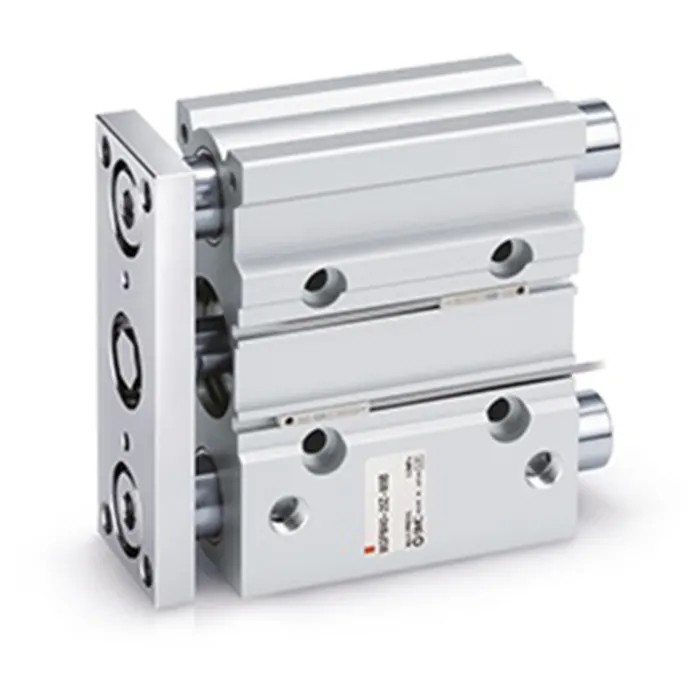

SMC Pneumatic Guide Cylinder 16mm Bore, MGP Series, 125mm Stroke, Double Acting, Aluminium Alloy Body MGPM16-125Z

SMC MGPM16-125Z is a pneumatic guide cylinder with a 16 mm bore diameter and 125 mm stroke length, designed for precise linear guidance in various industrial automation and fluid power applications. This double acting cylinder features a sturdy aluminium alloy construction for lightweight durability and corrosion resistance.

It incorporates a slide bearing guide type that ensures smooth, precise motion with a rotational accuracy of ±0.03°, making it suitable for compact and lightweight machinery with reduced space requirements. The rubber bumper cushioning helps absorb shocks, extending the cylinder's service life and maintaining operational stability.

The cylinder operates at a maximum pressure of 1 MPa and supports high piston speeds up to 500 mm/s, allowing for efficient cycle times in pneumatic systems. Its wide operating temperature range from -10°C to 60°C permits reliable function in varying environmental conditions.

Standard piston rod thread size M5 x 0.8 ensures compatibility with common mounting hardware. The MGP series offers flexibility with three selectable bearing options - slide bearing, ball bushing, and high precision ball bushing - and four mounting styles: top mounting, side mounting, bottom mounting, and T-slot side mounting, enabling easy adaptation to specific machinery requirements.

Typical industrial use includes pneumatic guided cylinder functions in manufacturing automation, assembly lines, packaging machines, and laboratory instrumentation. The compact design supports integration into systems demanding space-efficient, precise pneumatic actuation.

The cylinder features a robust aluminium alloy body ensuring durability. Equipped with a slide bearing guide type for smooth linear motion. Rubber bumper cushioning enhances shock absorption at stroke ends. Operates reliably at pressures up to 1 MPa, supporting industrial pneumatic applications.

Designed for a piston speed up to 500 mm/s, increasing cycle efficiency. Wide operating temperature range from -10°C to 60°C permits use in varied environments. The piston rod thread size is M5 x 0.8, facilitating standard mounting options.

Three bearing types are selectable: slide bearing, ball bushing, and high precision ball bushing. Offers four mounting types including top, side, bottom, and T-slot side mounting. Compact size and ±0.03° rotational accuracy deliver precise guided movement.

Set includes the MGPM16-125Z pneumatic guide cylinder with double acting action and 125 mm stroke. SMC product engineered and manufactured to stringent quality standards. Explore more Pneumatic Guided Cylinders and automation solutions in our pneumatic cylinder category on EnvMart for diverse industrial and manufacturing applications.
