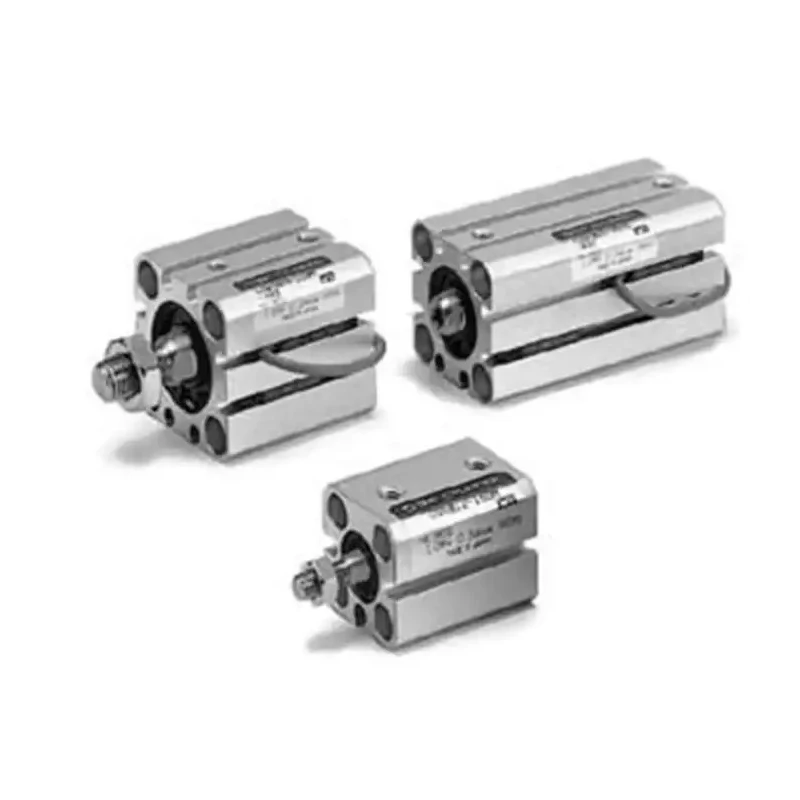

SMC 5 mm Double Acting Cylinder CQS Series Through Hole Mount Aluminium Alloy Body CQSB12-5DCM
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Model | CQSB12-5DCM |
| Mount Type | Through Hole |
| Series | CQS |
| Maximum Operating Temperature | 70°C |
| Stroke Length | 5mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | RoHS |
| Cushioning Type | Rubber Bumper |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
Key Features
- Equipped with double acting action type for controlled piston movement.
- Features through hole mount for flexible installation options.
- Includes rubber bumper cushioning for smooth operation and noise reduction.
- Stroke length of 5 mm supports precise small bore applications.
- Designed with a single piston rod having male gender and metric thread standard.
- Maximum piston speed is 500 mm/s for efficient cycle times.
- Operates effectively up to a maximum temperature of 70 degrees Celsius.
- Manufactured under RoHS standards ensuring compliance with environmental safety.
Product Description
SMC CQSB12-5DCM is a 5 mm double acting pneumatic cylinder from the CQS Series, designed with a compact aluminium alloy body suitable for limited space industrial applications. It is engineered for industries requiring precise piston rod actuation with a through hole mount mechanism, providing robust design flexibility and superior installation convenience.
This cylinder operates with a double acting action type, enabling controlled movement for both extension and retraction phases using compressed air. The inclusion of rubber bumper cushioning helps minimize noise and mechanical shock during operation, extending the cylinder's service life and improving reliability.
The piston rod is a single type with male gender and metric threading, adapting to various pneumatic system requirements. With a stroke length of 5 mm and a maximum piston speed rated at 500 mm/s, it is ideal for compact pneumatic automation tasks such as in manufacturing lines, packaging machinery, and robotics.
Designed to endure operating temperatures up to 70°C, the CQSB12-5DCM is well suited for use in controlled environments typical in laboratory automation, manufacturing, material handling, and fluid power systems.
Manufactured in China, this cylinder complies with RoHS standards, ensuring it meets high environmental and safety regulations. It offers the benefits of reduced installation dimensions, enhanced accuracy by preventing piston rotation, and versatile design flexibility for a range of industrial pneumatic setups.
Equipped with double acting action type for controlled piston movement. Features through hole mount for flexible installation options. Includes rubber bumper cushioning for smooth operation and noise reduction. Stroke length of 5 mm supports precise small bore applications.
Designed with a single piston rod having male gender and metric thread standard. Maximum piston speed is 500 mm/s for efficient cycle times. Operates effectively up to a maximum temperature of 70 degrees Celsius. Manufactured under RoHS standards ensuring compliance with environmental safety.
Originates from China, reflecting quality manufacturing standards. Explore more pneumatic cylinders and actuators at EnvMart for your industrial automation needs.
Explore more products in our Pneumatic Piston Rod Cylinders category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this model is 5 mm, making it suitable for precise small bore applications.
It operates with a double acting action type, allowing controlled movement for both extension and retraction phases using compressed air.
The maximum piston speed is rated at 500 mm/s, enabling efficient cycle times in various applications.
This model features a through hole mount, providing flexible installation options in various setups.
It operates effectively up to a maximum temperature of 70°C, suitable for controlled environments.
It includes rubber bumper cushioning, which helps minimize noise and mechanical shock during operation.
The body of this pneumatic cylinder is made from aluminium alloy, contributing to its lightweight design.
The piston rod has a male gender and follows a metric thread standard, adapting to various pneumatic systems.
This cylinder is suitable for applications in manufacturing lines, packaging machinery, robotics, and laboratory automation.
It is manufactured under RoHS standards, ensuring compliance with environmental safety regulations.
It is designed with a single piston rod, which helps prevent piston rotation and enhances accuracy.
This model is manufactured in China, reflecting quality manufacturing standards.
