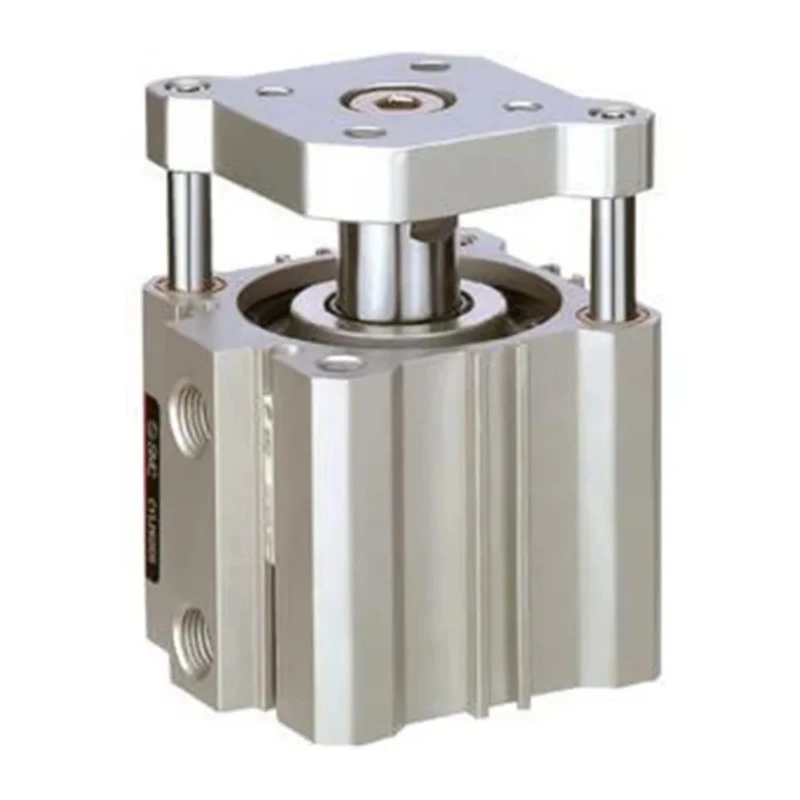

SMC Pneumatic Compact Cylinder, Double Acting, 50mm Bore, 40mm Stroke, Aluminium Alloy Body CDQMB50-40
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1 Mpa |
| Length | 108mm |
| Model | CDQMB50-40 |
| Gross Weight | 858g |
| Mount Type | Through Hole |
| Series | CDQM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 40mm |
| Bore Diameter | 50mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Cushioning Type | Rubber Bumper |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | M16 x 1.5 |
Key Features
- Constructed with a durable aluminium alloy body for strength and lightweight performance.
- Equipped with a single rod type and rubber bumper cushioning to enhance operation and longevity.
- Capable of operating at a maximum pressure of 1 Mpa and piston speed up to 500mm/s.
- Features through hole mounting and metric M16 x 1.5 piston rod thread standard for secure installation.
- Designed to function within -10°C to 60°C operating temperature range for versatile industrial applications.
- Offers non-rotating accuracy of 0.2 mm or less ensuring precise linear motion.
- Comes from the CDQM series with guide rod type compact cylinder technology for four times lateral load resistance of previous models.
- Manufactured in Japan, ensuring high product quality and reliability.
Product Description
SMC CDQMB50-40 Pneumatic Compact Cylinder is a double acting pneumatic piston rod cylinder featuring a 50mm bore diameter and 40mm stroke length. The cylinder is built with an aluminium alloy body providing both durability and light weight, suitable for various pneumatic actuation tasks in industrial environments.
This CDQM series guide rod compact cylinder supports through hole mounting and uses a rubber bumper cushioning system to reduce impact and noise during operation. The single rod type design offers a piston rod thread size of M16 x 1.5, adhering to metric standards for seamless integration. It is engineered for a maximum operating pressure of 1 Mpa and piston speeds up to 500 mm/s, operating reliably within a temperature range of -10°C to 60°C.
Featuring non-rotating accuracy within 0.2 mm, this model provides high precision linear motion and 4 times the lateral load resistance compared to CQ2K models. It allows auto switch mounting on any of its four surfaces with grooves replacing previous mounting rails, enhancing safety and ease of work.
Applications include industrial automation, manufacturing, construction, HVAC systems, and fluid power systems requiring reliable pneumatic linear actuation. This compact cylinder is valued for its combination of accurate performance, robust construction, and versatility in challenging environments.
Durable aluminium alloy body construction ensures longevity. Double acting cylinder provides controlled piston movement in both directions. Guide rod compact design offers enhanced lateral load resistance. Rubber bumper cushioning reduces operational impact and noise.
Through hole mounting facilitates secure installation in machinery. High precision non-rotating piston rod motion with 0.2 mm tolerance. Operating pressure up to 1 Mpa supports strong pneumatic force output. Operating temperature range from -10°C to 60°C suits diverse factory conditions.
Manufactured in Japan under stringent quality controls.
Set includes the SMC CDQMB50-40 Pneumatic Compact Cylinder, ready for integration into industrial pneumatic systems. Compatible with standard metric threaded components for ease of maintenance and replacement.
Explore the full range of pneumatic cylinders and actuators to find components tailored to your specific mechanical system requirements at EnvMart.
Explore more products in our Pneumatic Piston Rod Cylinders category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this model is 50mm.
The stroke length of this pneumatic compact cylinder is 40mm.
It can operate at a maximum pressure of 1 Mpa.
This cylinder operates within a temperature range of -10°C to 60°C.
It features rubber bumper cushioning to reduce impact and noise during operation.
The CDQMB50-40 is designed for through hole mounting, facilitating secure installation.
The gross weight of this model is 858g.
The piston rod thread size is M16 x 1.5, adhering to metric standards.
This is a double acting cylinder, allowing controlled piston movement in both directions.
It offers non-rotating accuracy of 0.2 mm or less, ensuring precise linear motion.
This pneumatic cylinder is manufactured in Japan, ensuring high product quality.
It is suitable for applications in industrial automation, manufacturing, construction, HVAC systems, and fluid power systems.
