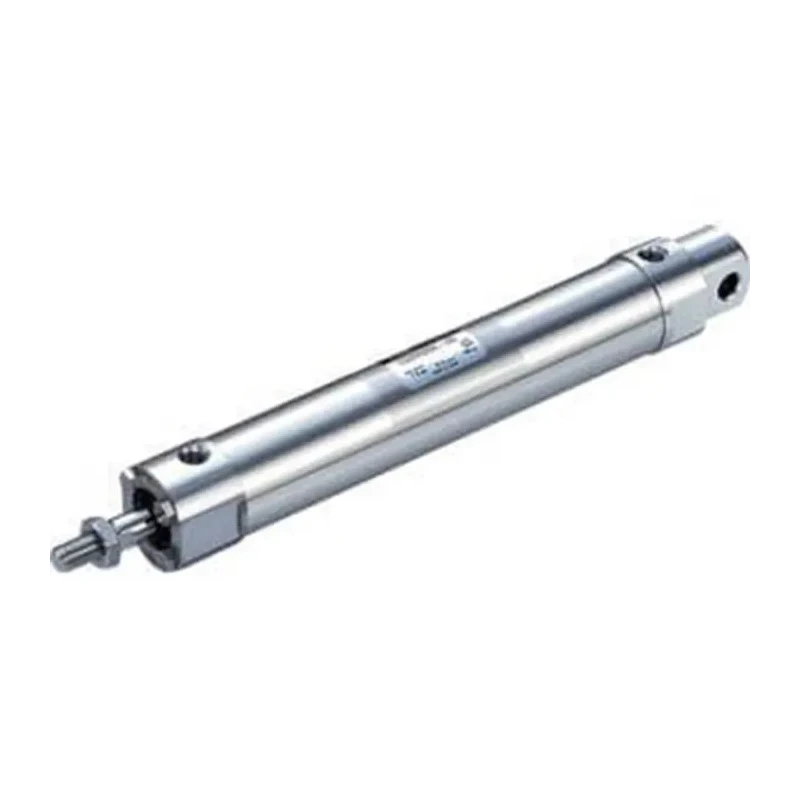

SMC 75 mm Bore Stainless Steel Double Acting Cylinder with Through Hole Mount and Rubber Bumper Cushion CDG5 Series

SMC CDG5BN25TFSR-75 pneumatic cylinder is a robust 75 mm bore cylinder from the CDG5 series, designed for industrial pneumatic applications requiring precise linear motion. Featuring a durable stainless steel body, this double acting cylinder delivers force during both extension and retraction strokes, controlled pneumatically for efficient process automation.

The CDG5 series supports bore sizes ranging from 10 mm to 100 mm and stroke lengths up to 400 mm, with the CDG5BN25TFSR-75 model specifically offering a 75 mm stroke length. The rubber bumper cushioning minimizes noise and absorbs shock impacts at stroke ends, extending cylinder service life and improving operational smoothness.

This model incorporates a through hole mount type, enhancing installation flexibility in various mechanical layouts. The piston rod follows metric thread standards and features a single rod type, facilitating reliable coupling with tooling or fixtures. The maximum operating temperature is 60°C, making it suitable for typical industrial environments.

Constructed with stainless steel materials, the cylinder exhibits excellent resistance to corrosion, making it ideal for applications where durability and longevity are critical, such as manufacturing, fluid power systems, and machine automation. The cylinder is manufactured in Japan, underlining rigorous quality assurance and manufacturing precision.

Stainless steel body construction provides superior corrosion resistance. Double acting mechanism delivers consistent pneumatic power in both directions. 75 mm stroke length for medium travel applications. Through hole mounting supports secure and adaptable installation.

Rubber bumper cushioning for noise reduction and impact absorption. Single piston rod with metric thread standard ensures compatibility. Operating temperature rating up to 60°C for reliable industrial use. High manufacturing quality from Japan for assured performance.

This pneumatic piston rod cylinder is well-suited to industrial automation, fluid power, mechanical machinery, and manufacturing sectors requiring precise, durable linear actuation. Explore a range of SMC pneumatic cylinders and actuators for varied bore sizes and configurations to match your specific application needs at EnvMart.
