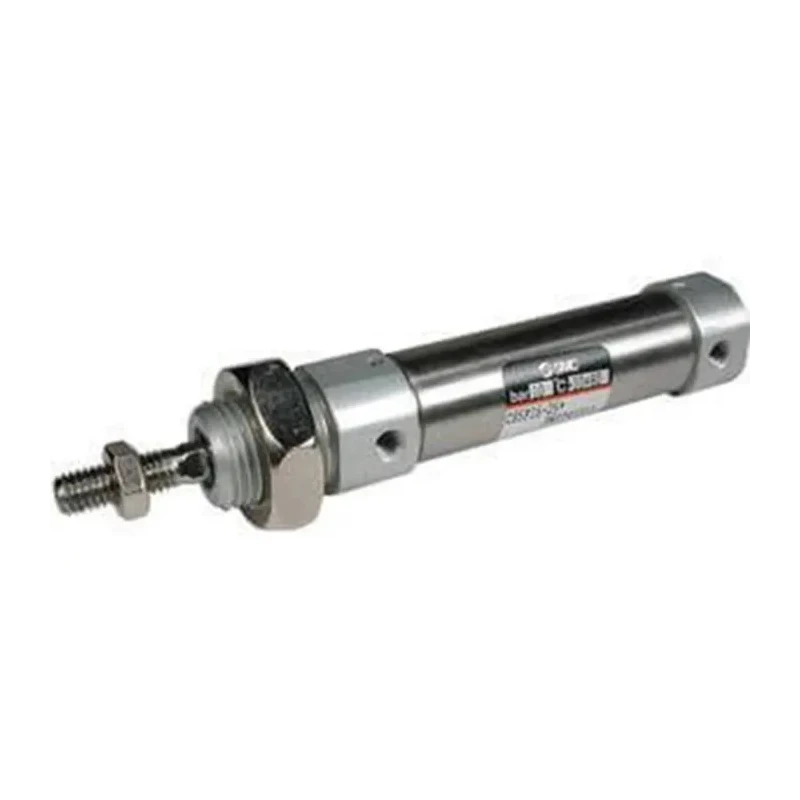

SMC Double Acting Cylinder 70 mm Stroke Aluminium Alloy Body Clevis Mount CD85
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Model | CD85 |
| Mount Type | Clevis |
| Series | CD85 |
| Maximum Operating Temperature | 80°C |
| Stroke Length | 70mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 6432 |
| Cushioning Type | Rubber Bumper |
| Maximum Piston Speed | 1500 mm/s |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | M6 |
Key Features
- Double acting action type enables bidirectional force for versatile operation.
- Clevis mount allows pivot attachment, enabling angular movement and alignment.
- Rubber bumper cushioning minimizes impact and extends cylinder service life.
- Single piston rod with male M6 metric thread supports industry-standard fittings.
- Maximum piston speed of 1500 mm/s supports rapid cycling and high throughput.
- Operates reliably up to 80°C, suitable for elevated temperature conditions.
- Constructed from lightweight aluminium alloy for favorable strength-to-weight ratio.
- Complies with ISO 6432 standards ensuring quality and compatibility.
Product Description
SMC CD85N16-70-B is a double acting pneumatic cylinder featuring a 70 mm stroke length and an aluminium alloy body. It is designed for high-performance pneumatic applications requiring controlled, bidirectional linear motion. The clevis mount incorporates a pivot that accommodates angular movement and misalignment, facilitating versatile integration in automated systems.
This cylinder supports a maximum piston speed of 1500 mm/s, allowing rapid cycling suitable for assembly lines, automated test rigs, and machine automation. Its rubber bumper cushioning system reduces piston impact loads near end positions, enhancing durability and minimizing transmitted shock.
The single piston rod features a male M6 metric thread, compatible with standard pneumatic fittings and end-effectors, making installation and maintenance straightforward. The lightweight aluminium alloy body provides a strong yet low-mass construction, ideal for compact pneumatic equipment in manufacturing, laboratory automation, and mechanical systems.
This model complies with ISO 6432 standards, ensuring reliable performance and interoperability within pneumatic systems. It operates effectively in environments with temperatures up to 80°C, supporting elevated temperature applications.
Double acting action type for bidirectional pneumatic force. Clevis mounted for pivoting and alignment flexibility. Rubber bumper cushions minimize mechanical stress. Single piston rod with M6 metric thread fitting capability.
Maximum piston speed of 1500 mm/s for fast actuation. Durable aluminium alloy body construction. Compliance with ISO 6432 standard. Suitable for industrial use in automation, testing, and machine actuation. This pneumatic cylinder is ideal for pick-and-place actuators, valve island integration, linear positioning in test setups, and panel or door actuation with pivot mounts.
Explore more Pneumatic Piston Rod Cylinders and actuators on EnvMart to support your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this model is 70 mm.
It supports a maximum piston speed of 1500 mm/s, allowing for rapid actuation.
This unit features a clevis mount, which allows for pivot attachment and angular movement.
It operates effectively in environments with temperatures up to 80°C.
The body is constructed from aluminium alloy, providing a favorable strength-to-weight ratio.
This model features a double acting action type, enabling bidirectional force for versatile operation.
The piston rod has a male M6 metric thread, compatible with standard fittings.
Yes, it includes rubber bumper cushioning to minimize impact and enhance durability.
It complies with ISO 6432 standards, ensuring quality and compatibility in pneumatic applications.
This model is suitable for applications such as pick-and-place actuators, valve island integration, and linear positioning in test setups.
It features a single piston rod design, which is standard for this type of cylinder.
Yes, its features make it well-suited for integration in automated systems requiring controlled linear motion.
