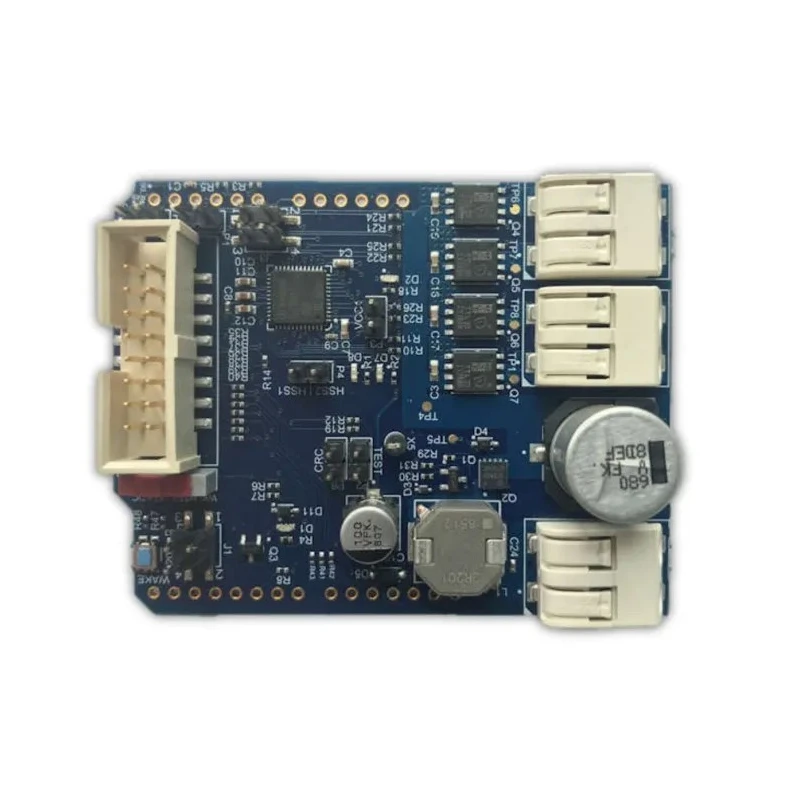

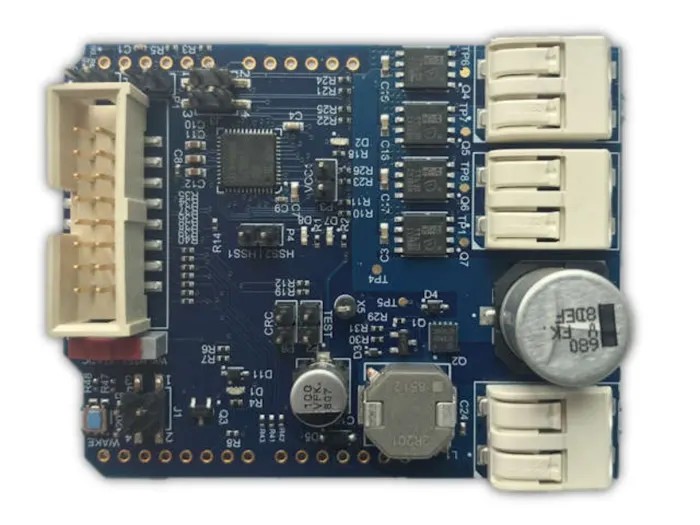

Infineon DC Motor Control Shield and Evaluation Board for TLE9562-3QX Automotive DCSHIELDTLE956XTOBO1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | DCSHIELDTLE956XTOBO1 |
| For Use With | Automotive |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | TLE9562-3QX |
| Kit Name | DC Motor Control Shield And Evaluation Board |
Key Features
- This evaluation board features the MOTIX™ TLE9562-3QX DC Motor Control IC.
- Designed to reduce internal operating current consumption by 50% for power efficiency.
- Includes a simplified and cost-efficient ground network for improved performance.
- Smaller package size offers area savings in compact designs.
- Supports very low quiescent current in sleep mode optimizing power management.
- Equipped with Arduino Shield interface facilitating rapid prototyping and user flexibility.
- Compatible with ConfigWizard software via UIO stick for feature evaluation on a PC.
- Operates with input DC voltage and provides an output voltage range of 4.9 to 5.1 V.
Product Description
Infineon DCSHIELDTLE956XTOBO1 DC Motor Control Shield and Evaluation Board integrates the MOTIX™ TLE9562-3QX device, tailored for automotive motor control applications with advanced power management capabilities.
The board is engineered to enable fast evaluation and prototyping in lab environments, combining a unique two-in-one solution: direct connection to a PC via UIO stick for software-based feature evaluation through Infineon's ConfigWizard, and an Arduino Shield interface facilitating rapid hardware prototyping.
This board reduces internal operating current consumption by 50%, contributing to energy-efficient designs. Its simplified and cost-effective ground network ensures reliable performance with a smaller footprint due to optimized package size, saving valuable PCB space.
The device excels in low quiescent current during sleep mode, maximizing power savings when motor control is idle. The input is DC type, with the output voltage maintained within the 4.9 to 5.1 V range, suitable for automotive system voltage requirements.
This evaluation board incorporates the unique features of the MOTIX™ TLE9562-3QX IC. Offers efficient power consumption reduction and compact design benefits. Accessible via ConfigWizard software for user-friendly configuration.
Arduino Shield compatibility supports quick prototyping and system integration. Enables automotive and embedded system developers to accelerate motor control projects. Ideal for industrial, automotive, and embedded motor control applications requiring cost-efficient evaluation and development tools for DC motor management.
Explore more in the Development Boards category on EnvMart for similar power and motor control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The evaluation board operates with input DC voltage, maintaining an output voltage range of 4.9 to 5.1 V.
This model is designed for automotive motor control applications, providing advanced power management capabilities.
The TLE9562-3QX device reduces internal operating current consumption by 50% and supports very low quiescent current in sleep mode, optimizing power management.
It includes an Arduino Shield interface, allowing for quick hardware prototyping and integration into existing systems.
The board is compatible with ConfigWizard software via a UIO stick for feature evaluation on a PC.
The country of origin for this evaluation board is India.
This model complies with RoHS standards, ensuring it meets environmental safety requirements.
The simplified and cost-effective ground network improves performance and reliability while saving PCB space due to its smaller package size.
The kit classification for this product is an Evaluation Board, designed for testing and prototyping purposes.
It reduces internal operating current consumption by 50% and features low quiescent current during sleep mode, enhancing overall energy efficiency.
It provides a direct connection to a PC via UIO stick, facilitating software-based feature evaluation.
The model number of this evaluation board is DCSHIELDTLE956XTOBO1.
