STMicroelectronics 32 bit ARM Cortex M0+ and M4 Microcontroller 64 MHz 320kB FLASH 48 Pin UFQFPN STM32WB15CCU6E

STMicroelectronics STM32WB15CCU6E is a cutting-edge 32-bit ARM Cortex microcontroller combining ultra-low power operation with dual-core architecture featuring an ARM Cortex M0+ for real-time processing and an ARM Cortex M4 core running up to 64 MHz. It integrates 320kB of FLASH memory and 48kB RAM, making it ideal for complex embedded applications requiring both performance and energy efficiency.

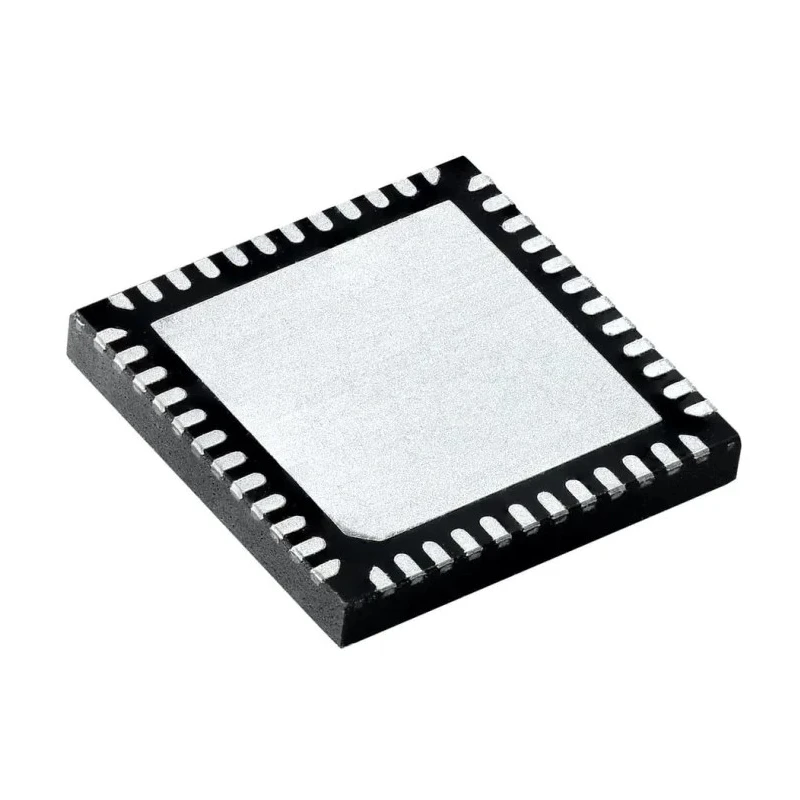

This microcontroller is packaged in a compact 48-pin UFQFPN surface mount format sized 7mm by 7mm. It fully supports Bluetooth Low Energy 5.2 with its integrated 2.4 GHz RF transceiver featuring a sensitivity of -95.5 dBm and programmable output power up to +4 dBm, offering excellent wireless communication performance.

Designed to operate within a wide voltage range of 1.71V to 3.6V and an ambient temperature range from -40°C to 85°C, the STM32WB15CCU6E is suited for industrial, consumer, and wireless IoT device applications. The device includes 37 programmable I/O pins, 5 timers, a 12-bit ADC, and an analogue comparator, along with advanced DSP instructions and a memory protection unit to enhance security and signal processing capabilities.

Its low power consumption and power dissipation of 722mW make it an excellent choice for battery-powered and energy-sensitive environments. The microcontroller supports robust embedded firmware development aligned with Bluetooth SIG 5.2 standards, making it suitable for wireless sensor networks, wearable technology, and industrial control systems.

Includes dual ARM Cortex cores: M0+ for real-time operations and M4 for high performance. Operates at a maximum clock frequency of 64 MHz with 48kB RAM memory. Surface mount UFQFPN package with 48 pins for compact PCB integration.

Wide operating voltage range from 1.71V to 3.6V ensuring flexible power supply options. Designed for Bluetooth Low Energy 5.2 applications with integrated 2.4 GHz radio transceiver. Supports advanced DSP instructions and memory protection unit for secure applications.

Operating temperature range from -40°C to 85°C suitable for diverse environmental conditions. Low power consumption with maximum power dissipation of 722mW. Features 37 programmable I/O pins and 5 timers for versatile application control.

Includes 12-bit ADC and 1 analogue comparator for precise analog signal interfacing.

This microcontroller is ideal for use in industrial automation, consumer electronics, wireless sensor networks, IoT devices, and embedded systems that require advanced wireless connectivity combined with efficient and secure processing power. Explore more STM32WB series Microcontrollers on EnvMart for comprehensive embedded solutions.
