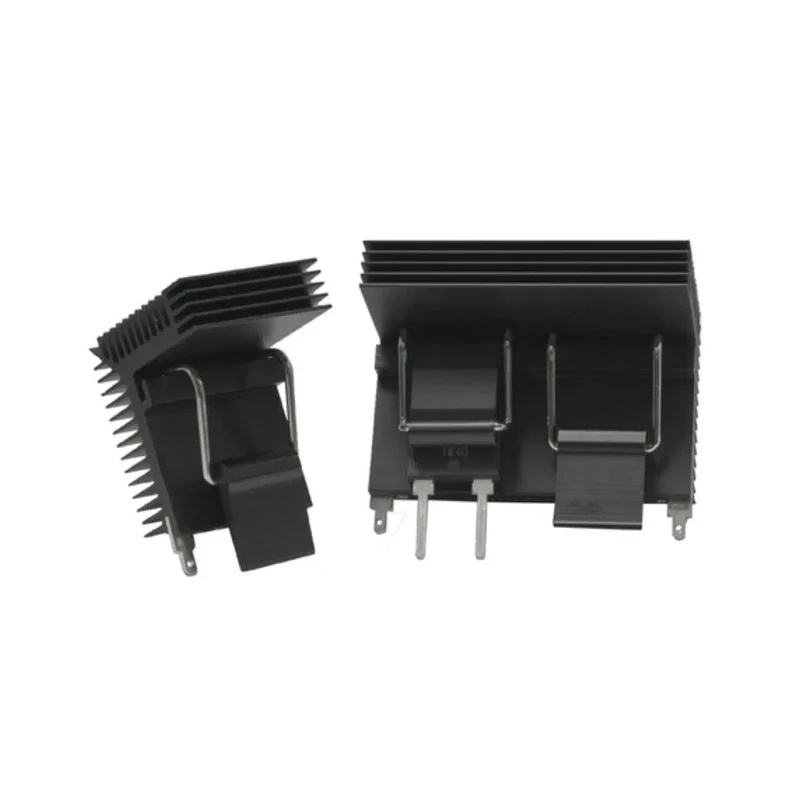

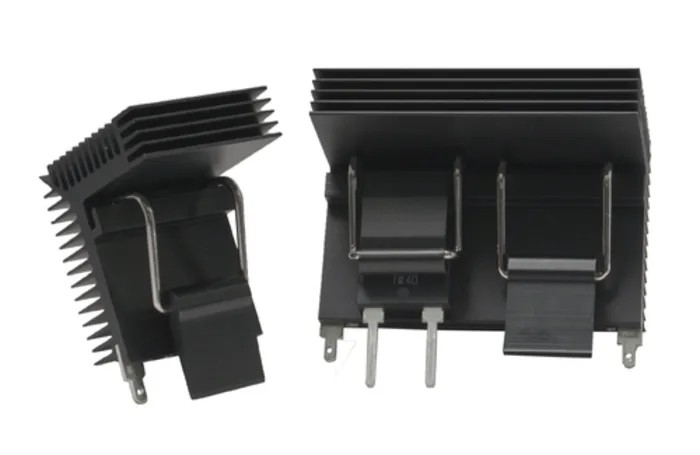

Arcol Ohmite Heatsink for IXYS I4, CPC PAK, TO-220, Ohmite CS10, TO-247, Anodised Finish 39.5 mm x 27 mm x 33.9 VRA-27-101E

Arcol Ohmite VRA-27-101E is a high-performance heatsink tailored for IXYS I4 and CPC PAK, TO-220, Ohmite CS10, and TO-247 semiconductor packages. It measures 39.5 mm in height, 27 mm in length, and 33.9 mm in width, providing a large cooling surface area of 9112 mm² that enhances thermal management in electronics applications.

The heatsink is crafted from AL6063-T5 aluminium alloy with an anodised finish that increases corrosion resistance and mechanical strength. It incorporates a universal cam clip system made from spring music wire per ASTM A228 standards with bright nickel plating, ensuring reliable fastening and easy installation.

This heatsink is designed for thru-hole soldering onto printed circuit boards (PCBs). The solder feet are made from steel or brass with pure tin plating, promoting strong and durable electrical connections. It is especially suited for low-profile, compact (1U or 2U) equipment that requires forced convection cooling.

As a RoHS compliant product made in China, it offers an environmentally friendly solution meeting global manufacturing standards. This heatsink provides efficient heat dissipation critical for the performance and longevity of power semiconductors in industrial electronics. Applications include various electronics heating and cooling components, HVAC systems, automation equipment, and power supply modules.

Constructed from AL6063-T5 aluminium with anodised finish for durability. Features a universal clip fastening system for flexible mounting. Compatible with TO-247 and TO-220 package types for versatile use. Cooling surface area of 9112 mm² ensures effective heat dissipation.

Equipped with a spring clip made of music wire with bright nickel plating for secure attachment. Solder feet made from steel or brass with pure tin plating enable thru-hole soldering. Ideal for compact packaging with forced convection cooling applications.

Manufactured in China with RoHS compliant materials. Explore more high-quality electronics components and Heatsinks at EnvMart for your industrial and commercial requirements.
