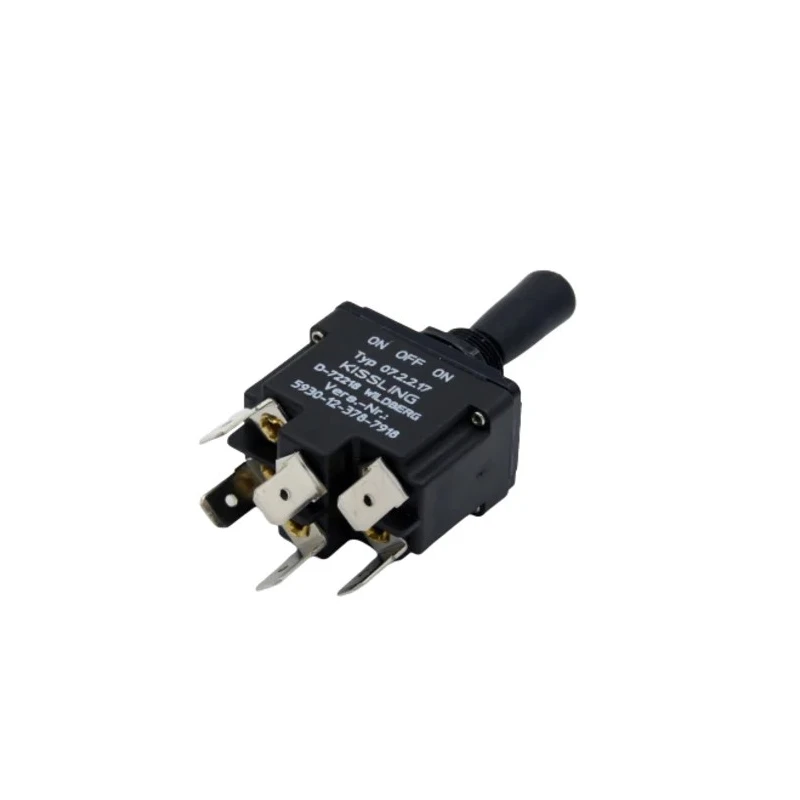

TE Connectivity Toggle Switch Through Hole Mount On-Off-On DPDT Quick Connect Terminal 28V dc 115V ac 07-2-2-17

The TE Connectivity 07-2-2-17 Toggle Switch is a highly reliable through hole mount switch designed for industrial and automotive applications requiring On-Off-On DPDT configurations. Rated for 28 V dc and 115 V ac, this switch supports currents up to 15A, making it ideal for robust control circuits in commercial vehicles and machinery.

The actuator is constructed from durable thermoplastic material, ensuring resistance to wear and environmental stress. The switch terminals use quick connect technology, allowing for fast, secure connections and simplified assembly or replacement in the field.

Engineered to meet stringent IP65 and IP6K5 protection ratings, this toggle switch is dust-tight and water-resistant, suitable for use in demanding industrial environments. It operates reliably across a temperature range from -35°C to 60°C, guaranteeing performance even under harsh climatic conditions.

With a mechanical life expectancy of 100,000 cycles, the 07-2-2-17 switch offers long-term durability for frequent operation. The compact dimensions of 35mm height, 34mm length, and 23mm width allow for installation in confined spaces without compromising ease of use.

The contact system uses high-quality silver alloy or gold-plated contacts, enhancing conductivity and minimizing wear for extended service life. These features combined make this switch suitable for applications in industrial automation, commercial vehicles, and electrical control panels.

This switch features a durable thermoplastic actuator material ensuring long-lasting use. It has a contact current rating of 15A suitable for industrial and commercial vehicle controls. The switch offers quick connect terminals for easy installation and maintenance.

It meets IP65 protection standards providing dust and water resistance for harsh environments. The operating temperature range spans from -35°C to 60°C, accommodating wide temperature conditions. The switch has a mechanical life cycle rated at 100,000 operations for high reliability.

The compact form factor measures 35mm height, 34mm length, and 23mm width. It uses robust silver alloy or gold-plated contacts for superior electrical performance.

Applications for this Toggle Switch include industrial equipment control, automotive electrical systems, HVAC controls, and manufacturing automation. Its combination of ruggedness, performance, and compact size makes it an excellent choice for professional industrial use.
