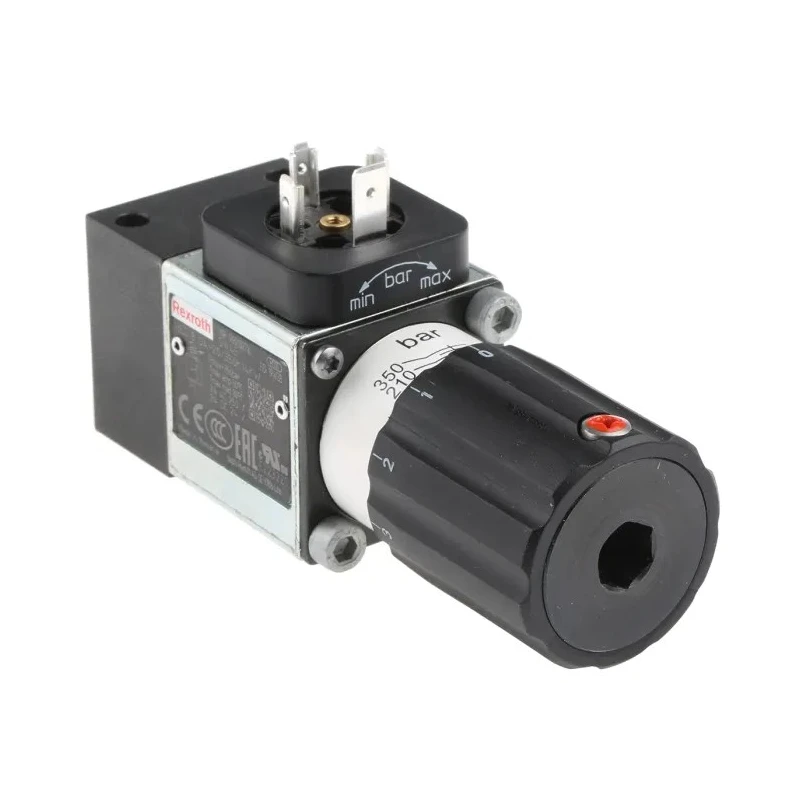

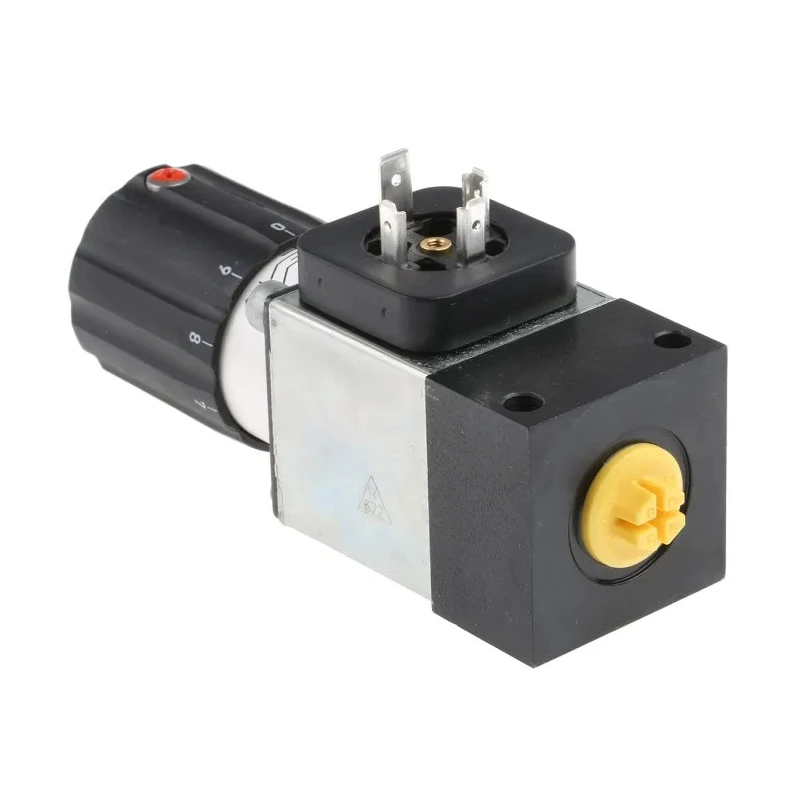

Bosch Rexroth Hydro-Electric Pressure Switch NC Positive Pressure 2 bar to 350 bar Voltage 250V AC R901102716

Bosch Rexroth R901102716 is a high-performance hydro-electric pressure switch engineered for positive pressure monitoring and control in industrial hydraulic and pneumatic systems. It features a normally closed (NC) contact configuration designed to switch electrical circuits when predetermined pressure levels from 2 bar up to 350 bar are reached. Operating at a voltage of 250V AC and supporting currents up to 2A, this pressure switch is suitable for demanding applications where reliability and precision are necessary.

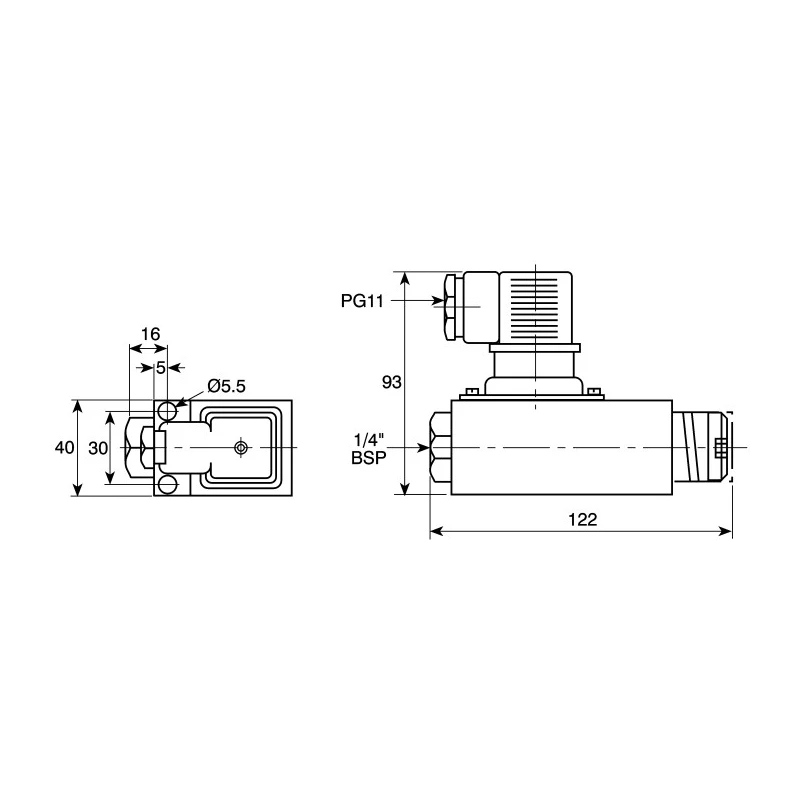

The unit has a 1/4 inch port size with G thread connection, facilitating easy pipeline installation. Its robust construction allows operation within temperature ranges from -30°C to 80°C. Compact dimensions (122 mm width, 40 mm height, and 93 mm depth) enable versatile mounting options in constrained spaces. The device's IP65 rating provides excellent protection against dust ingress and water jets, making it suitable for harsh industrial environments including fluid power systems.

The mechanical rotary knob with scale allows fine adjustment of the switching set point, with built-in over-pressure protection safeguarding the spring and microswitch. This makes it an ideal control unit for monitoring pressure levels in oil and other hydraulic media.

The pressure switch is certified to international standards, including UL, IEC, DIN, EN 61058-1:1993, and is CE marked and UL approved, guaranteeing compliance with safety and quality requirements.

This product is commonly used in industrial automation, manufacturing lines, hydraulic machinery, fluid power engineering, and HVAC systems for effective pressure regulation and monitoring. Installation is straightforward, and durability is ensured by its rugged design and comprehensive certifications.

This Pressure Switch features a normally closed (NC) contact configuration. It supports a maximum current of 2A and a port size of 1/4 inch. The device operates safely within temperature ranges from -30°C to 80°C. The switch has a compact design with dimensions 122 mm width, 40 mm height, and 93 mm depth.

The connection uses a G thread standard ensuring reliable pipeline installation. Rated to IP65 for dust and water protection, suitable for industrial environments. UL, IEC, DIN, and EN 61058-1:1993 certifications ensure compliance with global safety standards.

The rotary knob with scale enables precise pressure set-point adjustment. It is CE certified and UL approved, ideal for controlling and monitoring hydraulic systems. Explore the full range of Bosch Rexroth pneumatic and hydraulic components on EnvMart for reliable industrial solutions.
