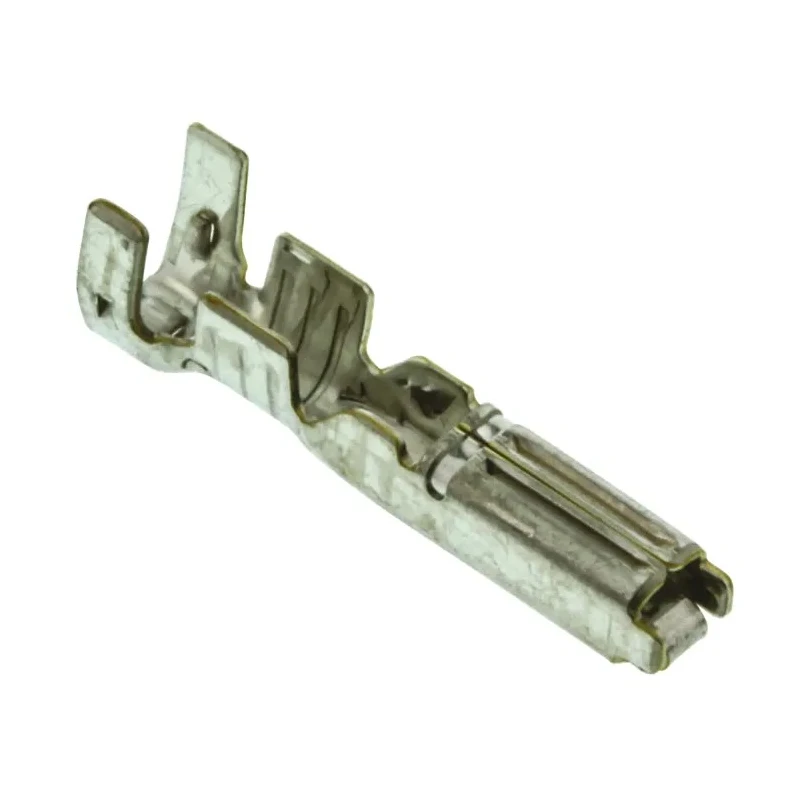

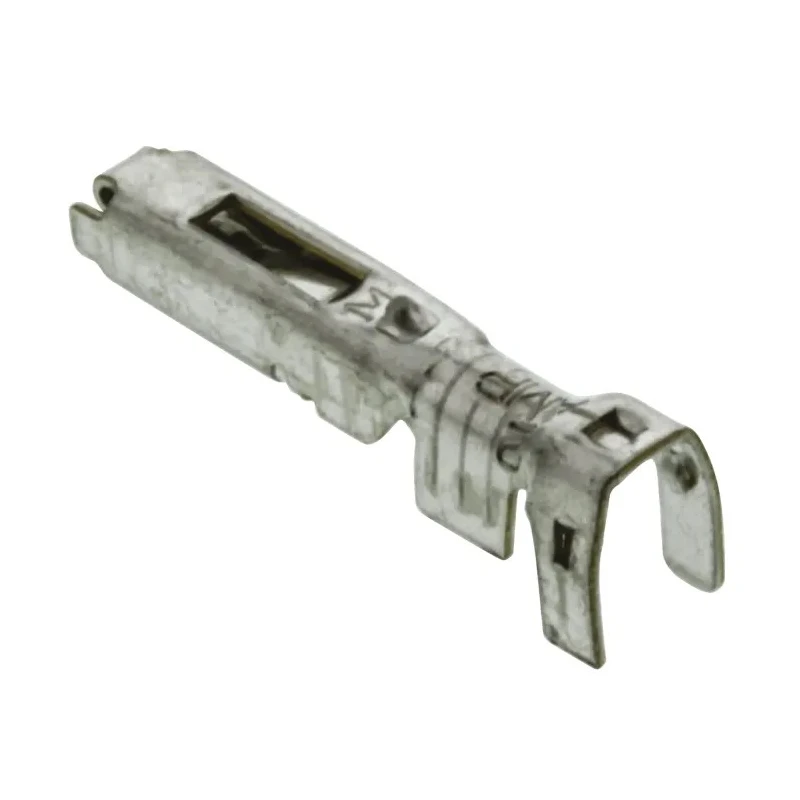

TE Connectivity MULTILOCK 070 Series Female Crimp Terminal 20 AWG Min, 16 AWG Max, Brass Tin Plated, 16mm Length 175027-1
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 - 105 °C |
| Length | 16mm |
| Model | 175027-1 |
| Gender | Female |
| Contact Material | Brass |
| Current Rating | 15A |
| Series | MULTILOCK 070 |
| Termination Type | Crimp |
| For Use With | MULTILOCK 070 Connector Housing |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.25mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
| Low level resistance | 10 mΩ max (initial) |
| Overall resistance | 20 mΩ max (final) |
Key Features
- This terminal is designed for crimp termination with a secure snap-in fitting in MULTILOCK 070 connector housings.
- Constructed with brass contact material and tin plating for reliable electrical conductivity and corrosion resistance.
- Suitable for wire sizes from 0.5mm² (20 AWG) to 1.25mm² (16 AWG).
- Operates effectively within a temperature range of -30 to 105 °C.
- Rated for a current capacity of 15 Amps, with low electrical resistance ensuring minimal power loss.
- Compact 16mm length designed for high-density connector applications.
- Complies with RoHS standards ensuring environmental safety.
- Manufactured in Japan, ensuring high-quality production standards.
Product Description
TE Connectivity 175027-1 MULTILOCK 070 Series Female Crimp Terminal is engineered to provide a dependable and efficient electrical connection for wire-to-wire and wire-to-board applications. The component is constructed from brass and finished with a tin plating to ensure superior conductivity and resistance to corrosion.
This crimp terminal is specifically designed to interface with the MULTILOCK 070 connector housing, featuring a snap-in fixing system that facilitates easy and secure assembly. The receptacle female crimp style enables easy installation and reliable retention.
The terminal supports wire sizes ranging from 20 AWG (0.5mm²) to 16 AWG (1.25mm²), meeting the requirements of numerous industrial and automotive electrical systems. It handles a current rating of 15 Amps and withstands test voltages up to 1 kVac for 1 minute, allowing for demanding electrical applications.
Operating temperatures from -30 to 105 °C make this crimp terminal suitable for use in a variety of environments including automotive, industrial automation, manufacturing, and laboratory equipment.
Typical applications include high-density wiring connectors with 2.5mm contact centres utilized in automotive wiring harnesses and industrial control systems. The terminal meets RoHS compliance, demonstrating adherence to environmental standards for hazardous substances.
This product offers a strong mechanical and electrical connection, essential for automation and signal transfer tasks. The tin plated brass contact reduces oxidation and maintains low contact resistance. The 070 series design enables compatibility with various MULTILOCK connectors ensuring versatile usage.
Compact and robust design ideal for dense connector applications in electric and electronic equipment. Reliable snap-in fixing mechanism provides secure retention and easy maintenance. Manufactured in Japan, backed by robust quality assurance processes.
Explore the full range of Crimp Contacts and related components from TE Connectivity on EnvMart, your trusted industrial components marketplace.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current rating of 15 Amps, making it suitable for various electrical applications.
This terminal supports wire sizes ranging from 20 AWG (0.5mm²) to 16 AWG (1.25mm²).
The operating temperature range is from -30 to 105 °C, allowing it to function in diverse environments.
It is constructed from brass and features tin plating for enhanced electrical conductivity and corrosion resistance.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
This terminal uses a crimp termination type, designed for secure connections in MULTILOCK 070 connector housings.
The crimp terminal has a compact length of 16mm, suitable for high-density connector applications.
It is specifically designed for use with MULTILOCK 070 connector housings, featuring a snap-in fixing system.
The overall resistance is a maximum of 20 mΩ, ensuring minimal power loss during operation.
This product is manufactured in Japan, adhering to high-quality production standards.
It is suitable for wire-to-wire and wire-to-board applications, commonly used in automotive and industrial control systems.
It provides a reliable mechanical and electrical connection, essential for automation and signal transfer tasks.
