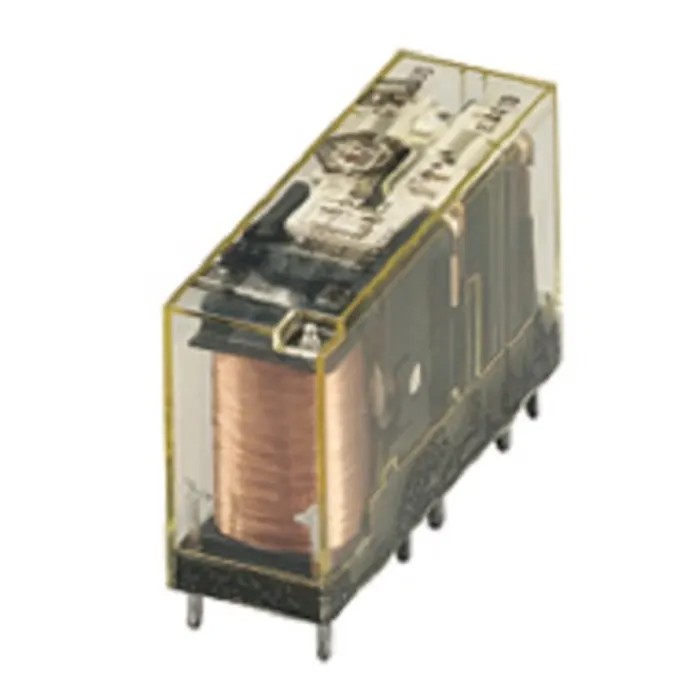

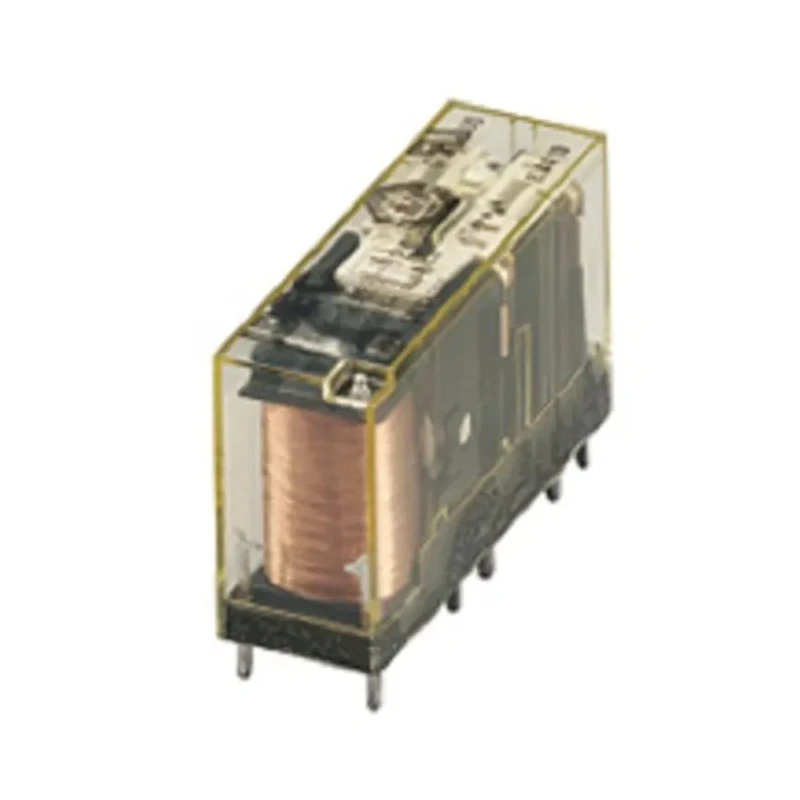

Idec PCB Power Relay 12V dc Coil 30A Switching Current 4-Pole Silver Alloy Contacts RF1V-3A1BL-D12

Free Delivery in India | Lowest Global Shipping Charges

Idec PCB Power Relay 12V dc Coil 30A Switching Current 4-Pole Silver Alloy Contacts RF1V-3A1BL-D12

Name: Idec PCB Power Relay 12V dc Coil 30A Switching Current 4-Pole Silver Alloy Contacts RF1V-3A1BL-D12
Brand: Idec
SKU: 170864



Category Power Relay Brand Idec Condition New

Specifications

Country of Origin	Japan
Brand	Idec
Height	24mm
Length	40mm
Model	RF1V-3A1BL-D12
Width	13mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	RF
Maximum Operating Temperature	85°C
Contact Configuration	4
Minimum Operating Temperature	-40°C
Switching Current	30A
Terminal type	Screw
Contact Resistance	100mΩ
Standards/Approvals	RoHS
Coil Resistance	400Ω
Coil Voltage	12V dc
Switching DC Voltage	125V dc
Switching AC Voltage	125V ac
Coil Power	0.36W
Switching Power	180W

Key Features

This relay features a 4-pole contact configuration with 3 NO and NC contacts.
Screw terminal type ensures secure wiring connections.
Silver alloy contacts provide durable and low resistance switching.
Compact dimensions of 40mm length, 24mm height, and 13mm width.
Designed to operate within temperatures from -40°C to 85°C.
Coil resistance is 400 ohms with coil power consumption of 0.36W.
Suitable for switching up to 125V ac/dc voltage and 180W switching power.
Complies with RoHS standards for environmental safety.

Product Description

Idec RF1V-3A1BL-D12 PCB Power Relay is a precision electrical component designed for compact and reliable control in industrial and automation systems. It operates with a 12V dc coil and supports a high switching current of 30A, making it ideal for PCB installation where space and performance are critical.

This relay features a 4-pole contact configuration including 3 normally open (NO) and normally closed (NC) contacts, enabling flexible safety and control circuit designs. The silver alloy contact material ensures excellent conductivity and longevity with a low contact resistance of 100 mΩ. The relay is mounted using a PCB mount type and has screw terminals providing secure and stable connections.

Measuring only 40mm in length, 24mm in height, and 13mm in width, the compact form factor fits efficiently in electronic assemblies. It operates within a wide temperature range from -40°C to +85°C, suitable for demanding industrial environments. The coil resistance of 400 Ω and coil power of 0.36W contribute to energy-efficient operation.

This power relay switches voltages up to 125V ac/dc and power ratings up to 180W, compatible with many electronic and electrical control applications. It fully complies with RoHS regulations, ensuring the product meets environmental safety requirements.

Typical applications include industrial automation, machinery control, HVAC systems, manufacturing equipment, and other environments requiring reliable and compact power relays. The force-guided contact construction enhances the safety and reliability of circuits.

This relay features a 4-pole contact configuration with 3 NO and NC contacts. Screw terminal type ensures secure wiring connections. Silver alloy contacts provide durable and low resistance switching. Compact dimensions of 40mm length, 24mm height, and 13mm width.

Designed to operate within temperatures from -40°C to 85°C. Coil resistance is 400 ohms with coil power consumption of 0.36W. Suitable for switching up to 125V ac/dc voltage and 180W switching power. Complies with RoHS standards for environmental safety.

Explore more industrial-grade Power Relays and components in the Electronics & Electricals category on EnvMart for your automation and control projects.
