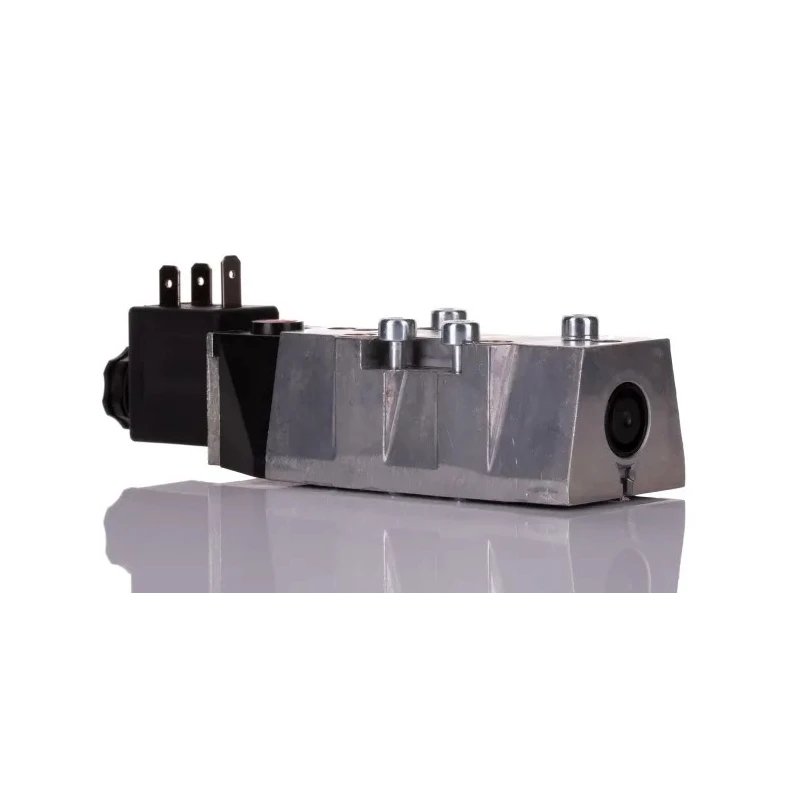

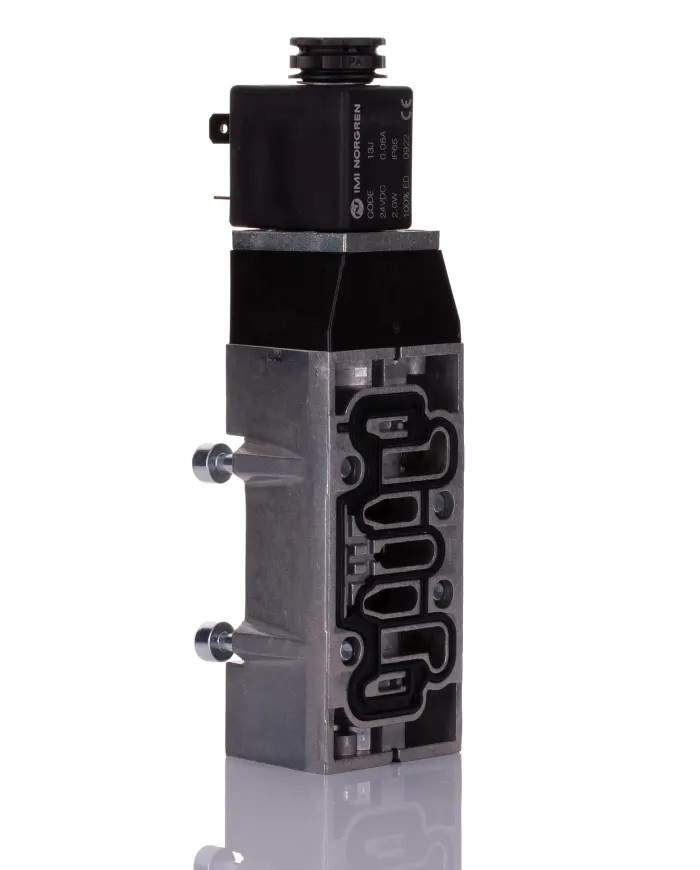

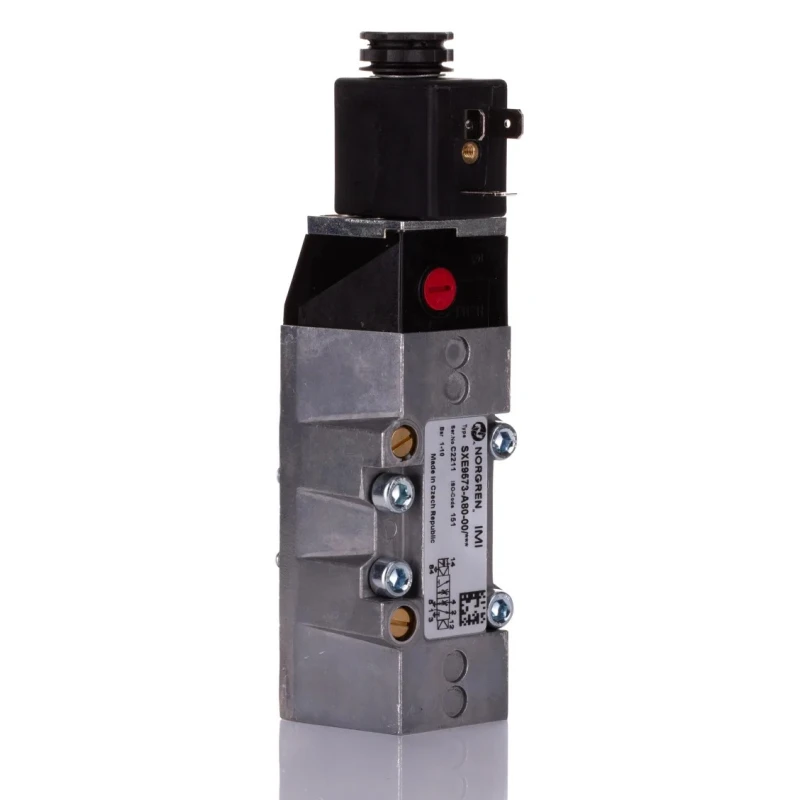

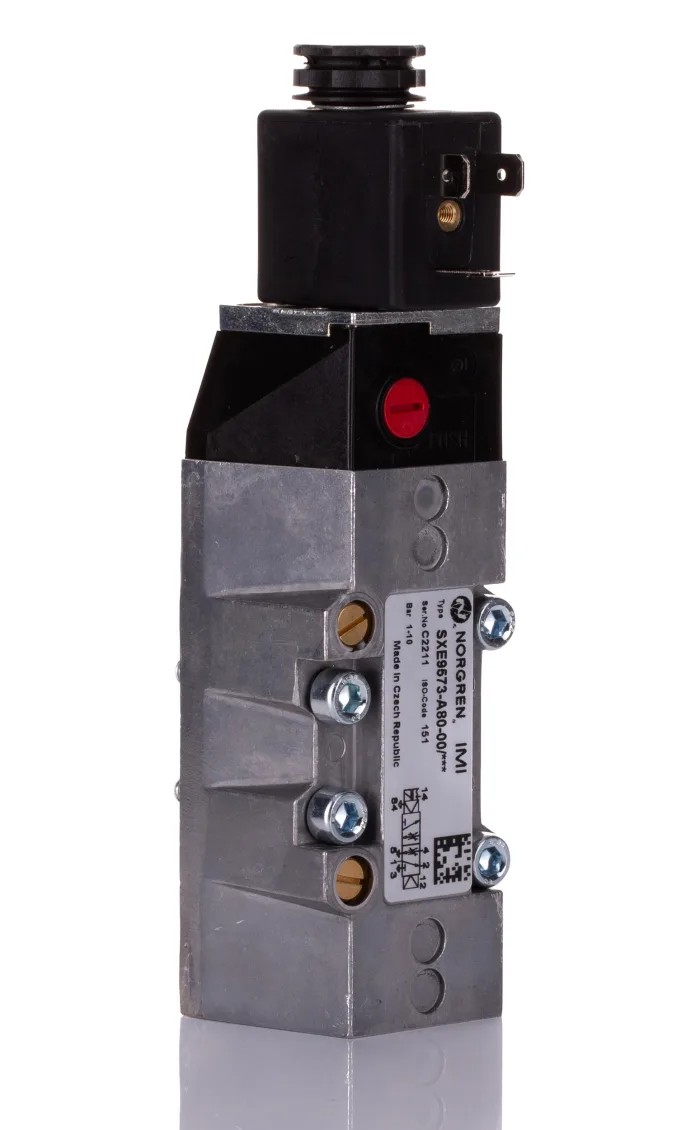

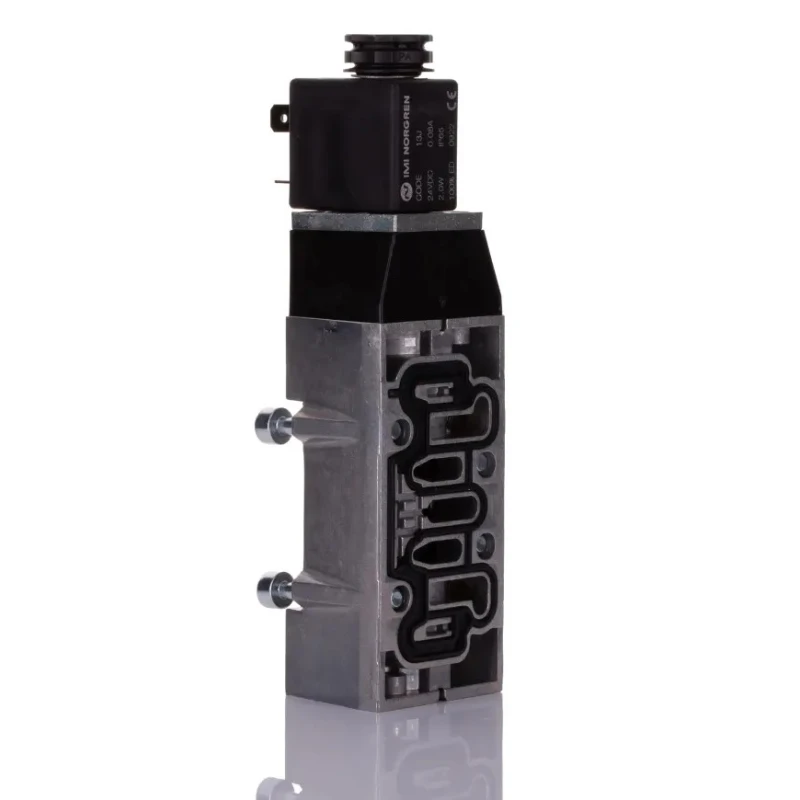

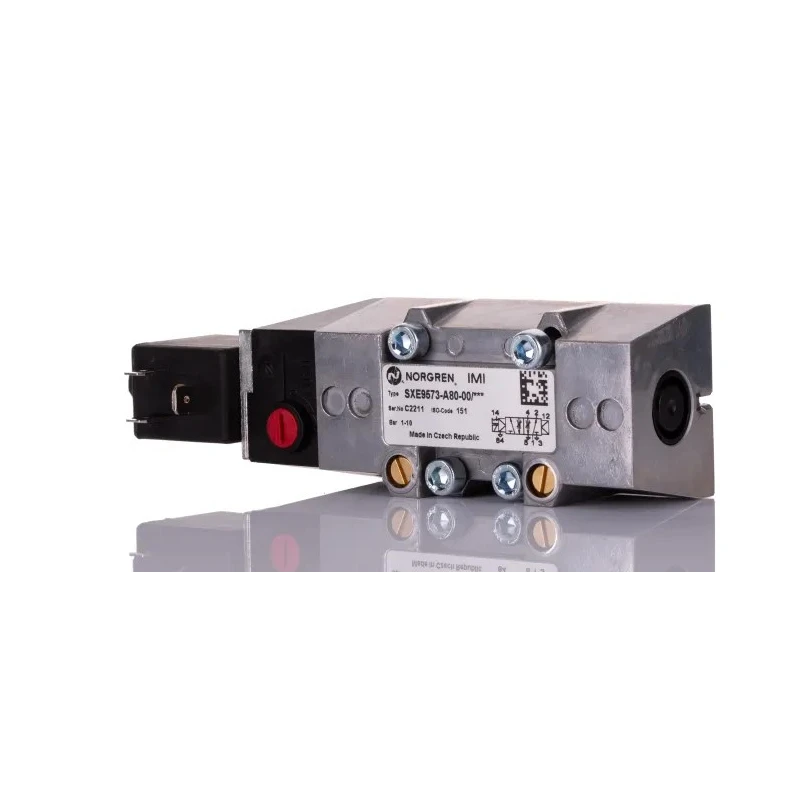

Norgren Pneumatic Solenoid Valve Bistable Solenoid Air ISO Star Series 24V Sub-Base Mount 5-Port SXE9573-A80-00-13J
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 24V |
| Brand | Norgren |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 10 bar |
| Model | SXE9573-A80-00-13J |
| Mount Type | Sub-Base |
| Series | ISO Star |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 80°C |
| Number of Positions | 2 |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -15°C |
| Actuation Type | Solenoid/Air |
| Maximum Flow Rate | 1230L/min |
| Standards/Approvals | RoHS |
| Minimum Pilot Pressure | 1bar |
| Valve Function | Bistable |
| Electrical Connection Type | Industrial Standard |
| Better World Claim | Extended Product Life |
| Solenoid Power Consumption | 2W |
Key Features
- Constructed with a die cast aluminium body for durability in industrial environments.
- Operates within -15°C to 80°C temperature range with nitrile rubber seals for enhanced chemical and wear resistance.
- Designed for maximum operating pressure up to 10 bar and pilot pressures between 1 and 10 bar.
- Featuring 1230 L/min maximum flow rate ideal for controlling double-acting cylinders and pistons.
- Equipped with IP67 rating to resist dust and temporary water immersion.
- Includes manual override for operation during power failure.
- Configurable sub-base mounting enables flexible installation in pneumatic systems.
- Complies with RoHS standards promoting sustainability and extended product life.
Product Description
The Norgren SXE9573-A80-00-13J pneumatic solenoid valve is a robust bistable valve from the ISO Star Series, operating on 24V electrical supply. It is tailored for precise directional control of pneumatic actuators like cylinders and pistons with its 5-port, 2-position configuration.
Constructed with a die cast aluminium body and heat-resistant nitrile rubber (NBR) seals, this valve withstands harsh industrial environments and temperature extremes from -15°C to 80°C. The valve offers a maximum operating pressure of 10 bar and is capable of handling pilot pressure ranges between 1 and 10 bar, delivering a maximum flow rate of 1230 L/min.
This model features a spool and sleeve coated with PTFE and an anodised aluminium body, enhancing its wear and chemical resistance for extended product life. The IP67 rating certifies its dust-tight design and resistance to temporary immersion in water, suitable for demanding manufacturing and processing plant conditions.
Manual override functionality ensures control in case of power failure, and sub-base mounting provides flexible installation options. The valve meets RoHS compliance, contributing to environmentally responsible manufacturing practices.
Applications span HVAC installations, chemical processing, food and beverage production, as well as medical and pharmaceutical sectors where reliable pneumatic control valves are critical.
Constructed with die cast aluminium body for enhanced durability. Nitrile rubber seals withstand heat and chemical exposure. Operates efficiently at pressures up to 10 bar and temperatures between -15°C and 80°C. Maximum flow rate of 1230 L/min supports medium power applications.
IP67 rated for dust and water resistance. Manual override enables operation during power outages. Configurable with sub bases and accessories for tailored systems. RoHS compliant, fostering sustainability and long service life.
Industrially suitable for HVAC, chemical, food, and pharmaceutical environments. Explore more Pneumatic Solenoid Valve solutions at EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
It operates efficiently within a temperature range of -15°C to 80°C.
This solenoid valve has a maximum flow rate of 1230 L/min.
The valve features nitrile rubber (NBR) seals, which enhance chemical and wear resistance.
It is designed for sub-base mounting, allowing for flexible installation in pneumatic systems.
The electrical connection type is industrial standard, suitable for a 24V supply.
Specific dimensions are not provided; please refer to the manufacturer's specifications for detailed measurements.
The actuation type is solenoid/air, designed for precise directional control of pneumatic actuators.
Yes, it includes a manual override for operation during power failures.
Yes, it complies with RoHS standards, promoting sustainability and extended product life.
It is suitable for applications in HVAC, chemical processing, food and beverage production, and medical sectors.
