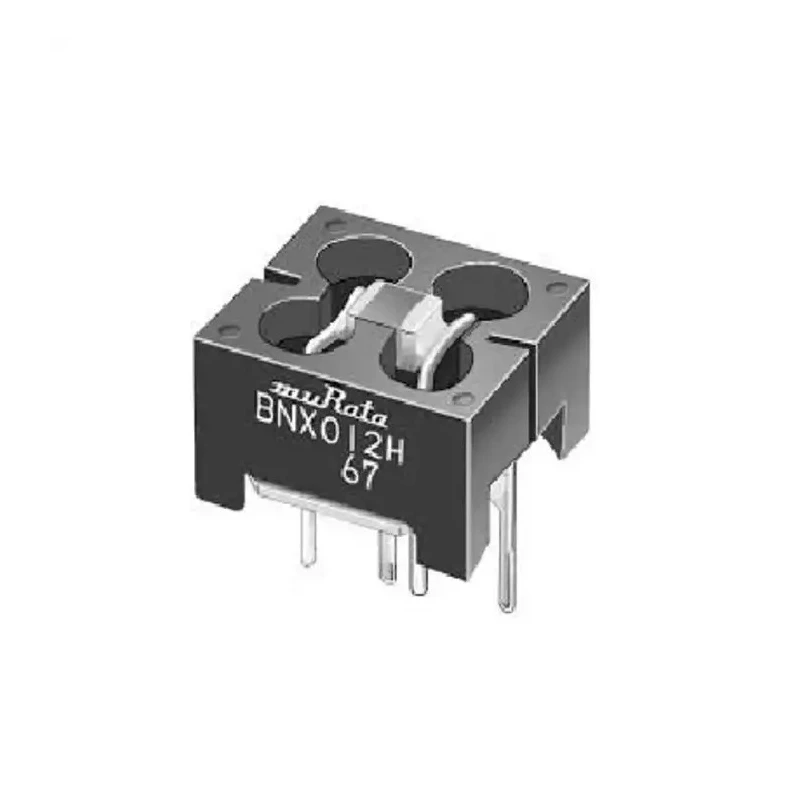

Murata Through Hole EMI Filter 15A 50V dc, 1MHz to 1GHz Frequency BNX012H01

Murata BNX012H01 Through Hole EMI Filter is a robust noise suppression and ESD surge protection component tailored for automotive and industrial power supply circuits. It handles large currents up to 15A and operates efficiently across a wide frequency spectrum of 1MHz to 1GHz, making it suitable for demanding DC-DC Converters and Inverter circuits.

This filter features a through-hole mounting with pin termination style, ensuring secure and durable connections in PCB assemblies. It maintains a low DC resistance of 500mΩ, contributing to energy efficiency and minimal heat generation during operation.

Measuring 12mm in length with a low profile height of 8.0mm (excluding leads), the filter fits compact spaces without compromising performance. Its operational temperature range of -55°C to 125°C allows it to perform reliably in harsh industrial and automotive environments.

The BNX012H01 filter comes packaged in boxes of 150 pieces, facilitating large-scale manufacturing needs. Manufactured in Japan, it meets high-quality standards, although it does not hold specific certifications.

Rated current capacity of 15A for high power applications. Maximum operating voltage of 50V DC supports various electronic circuits. Through Hole mounting style and pin termination for secure PCB integration. Low DC resistance of 500mΩ reduces power dissipation.

Compact dimensions and low profile design save PCB space. Wide operating temperature range from -55°C to 125°C. Suitable for automotive and industrial EMI filtering applications. Packaged 150 pcs per box for bulk usage.

This EMI Filter is ideal for industrial, automotive, and electronic manufacturing environments requiring reliable EMC noise suppression for power line and signal integrity improvement. Browse EnvMart’s Electronics Components category for more advanced noise filters and protection devices.
