| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.9mm |
| Length | 2.7mm |
| Model | UDZVFHTE-1712B |
| Mount Type | Surface |
| Series | UDZVFH |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323FL |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101, RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 200mW |
| Diode Configuration | Isolated |
| Test Current It | 10mA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 12.2V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 80Ω |

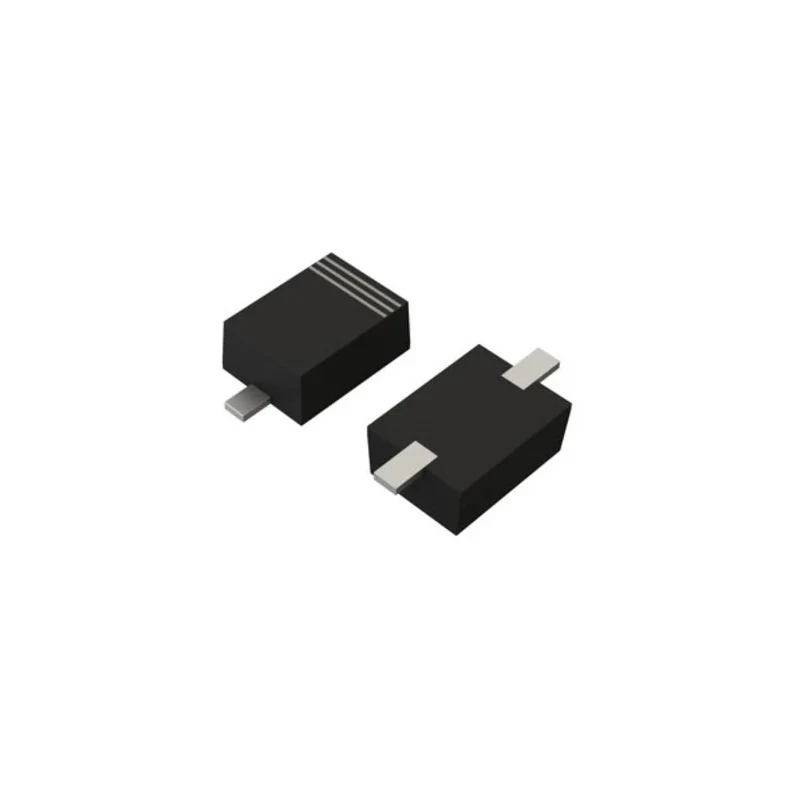

ROHM UDZVFHTE-1712B is a high-reliability isolated Zener diode designed for voltage regulation applications, featuring a nominal Zener voltage of 12.2 V and a maximum power dissipation of 200 mW. It is housed in a compact surface mount SOD-323FL package with two pins, making it suitable for space-constrained electronic designs.
The diode uses a silicon epitaxial planar structure that offers stable electrical characteristics and ensures high reliability in industrial and automotive environments. It complies with AEC-Q101 automotive standards and RoHS directives, making it suitable for automotive and industrial electronic circuits.
The device operates efficiently within a temperature range of -55°C to 150°C, suitable for harsh conditions. Its maximum reverse leakage current is only 100 nA, and the maximum Zener impedance is 80 Ω, contributing to stable voltage regulation at the nominal test current of 10 mA.
With a length of 2.7 mm and height of 0.9 mm, the diode supports compact PCB layouts. It is ideal for use in voltage regulator circuits, protection circuits, and other applications requiring precision voltage control in semiconductor device electronics.
Isolated diode configuration provides effective voltage regulation. Small surface mount SOD-323FL package with 2 pins ensures space-saving design. Nominal Zener voltage of 12.2 V supports stable voltage output. Max power dissipation of 200 mW suitable for low-power applications.
Wide operating temperature ensures reliability in harsh environments. Meets automotive compliance with AEC-Q101 standard. Low leakage current reduces power loss and enhances circuit stability. Compact dimensions fit modern electronics assembly.
This Zener Diode is widely used in industrial electronics, automotive electronics, and telecommunications equipment where precise voltage regulation and protection are critical. It supports engineering designs requiring compact, reliable, and certified components.
Explore similar semiconductor devices and ROHM products in the EnvMart Electronics & Electricals category to find matching components for your projects.
